Mitsubishi PLC Controller Module FX3GA-60MR-CM

Series#: Mitsubishi

Product Details

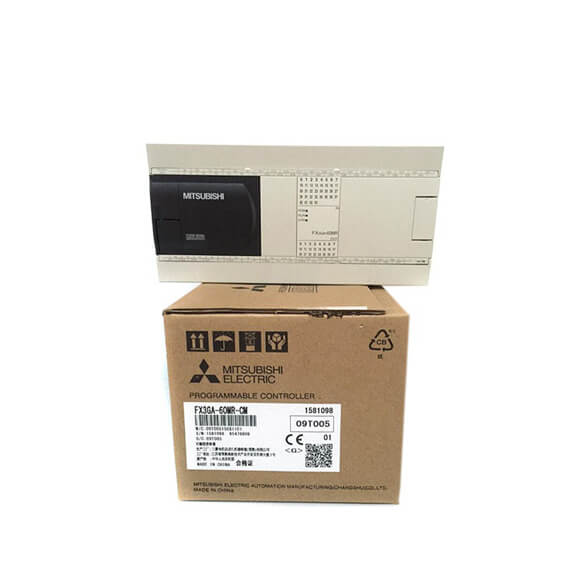

Mitsubishi FX3GA-60MR-CM / FX3GA-60MT-CM compact PLC controller module for advanced automation.
High-speed processing with up to 60 kHz on 1-phase counters and 30 kHz on 2-phase counters.
Extensive memory: 7,680 auxiliary relays, 8,000 data registers, and 24,000 extension registers for complex logic.
Built-in real-time clock for precise time-stamping and scheduling tasks.
Supports up to 256 special data registers and 6 interrupt inputs for critical applications.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi FX3GA-60MR-CM / FX3GA-60MT-CM is a high-performance PLC controller module designed for demanding industrial environments. This unit delivers exceptional reliability with a rich set of on-board I/O, extensive internal device allocation, and high-speed counting capabilities. It is ideal for machine control, packaging lines, and process automation, offering seamless integration into existing FX3G series networks.

Parameter	Specification
Auxiliary Relays	7,680 total: 384 general (M0–M383), 1,152 EEPROM latched (M384–M1535), 6,144 general/optional latched (M1536–M7679)
Special Auxiliary Relays	512 (M8000–M8511)
State Relays	4,096 total: 1,000 EEPROM latched (S0–S999), 3,096 general/optional latched (S1000–S4095)
Timers	320 total: 206 x 100 ms (T0–T199, T250–T255), 46 x 10 ms (T200–T245), 68 x 1 ms (T246–T249, T256–T319)
Counters	235 total (16-bit & 32-bit): 36 general (C0–C15, C200–C219), 199 EEPROM latched (C16–C199, C220–C234)
High-Speed Counters	21 total: 16 x 1-phase (C235–C250), 5 x 2-phase (C251–C255)
High-Speed Counter Speed	1-phase: 6 points max 60 kHz / 4 points 10 kHz / 2 points; 2-phase: 3 points max 30 kHz / 2 points 5 kHz / 1 point
Real-Time Clock	Year, month, day, hour, minute, second, day of the week
Data Registers	8,000 total: 128 general (D0–D127), 972 EEPROM latched (D128–D1099), 6,900 general/optional latched (D1100–D7999)
Extension Registers	24,000 (R0–R23999)
Extension File Registers	24,000 (ER0–R23999) internal/optional memory
Index Registers	16
Special Data Registers	256 (D8000–D8255) / 512 (D8000–D8511)
Pointers	2,048
Nestings	8
Interrupt Inputs	6
Constants	16-bit: K -32,768 to +32,767 / H 0 to FFFF; 32-bit: K -2,147,483,648 to +2,147,483,647 / H 0 to FFFF FFFF

Relay & Timer Architecture: Supports 7,680 auxiliary relays and 320 timers with precision ranging from 1 ms to 100 ms, enabling fine-grained control loops.
Counter & High-Speed Capabilities: 235 total counters plus 21 high-speed counters with up to 60 kHz 1-phase input, ideal for encoder feedback and rapid process monitoring.
Data Handling Depth: 8,000 data registers plus 24,000 extension registers for extensive recipe storage and data logging without external memory.
Interrupt & Nesting: 6 interrupt inputs and 8 nesting levels for real-time response to critical events, such as emergency stops or sensor triggers.
Memory Persistence: EEPROM latching on key relays, state relays, and counters ensures data retention during power loss without battery backup.
