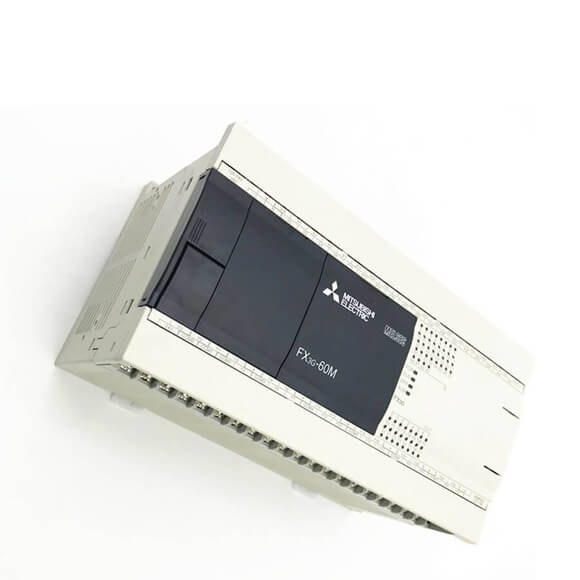

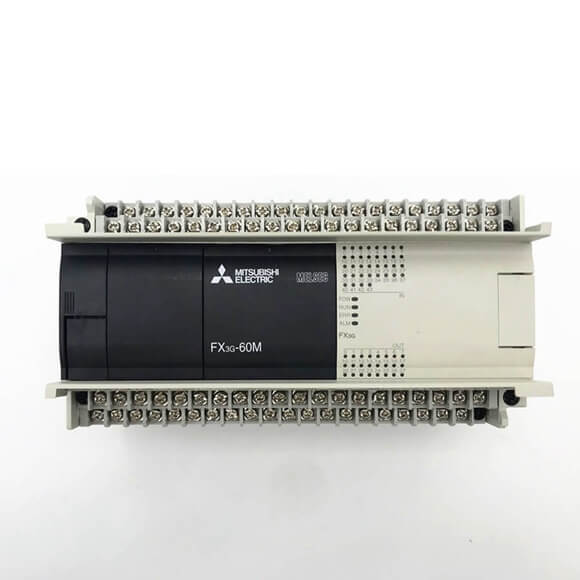

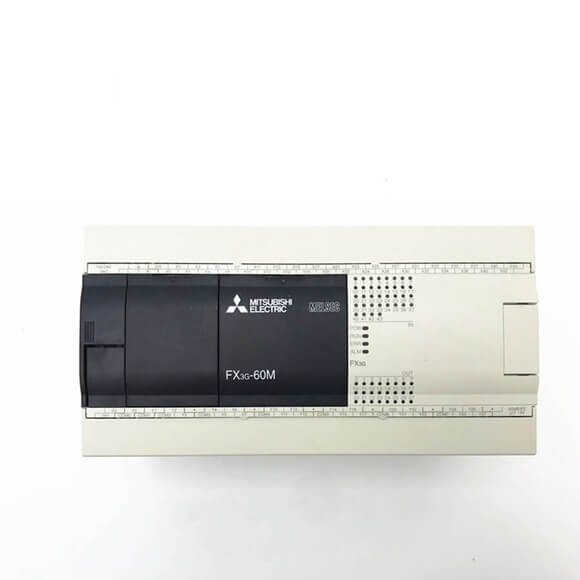

Mitsubishi PLC Controller Module FX3G-60MR/DS

Series#: Mitsubishi

Product Details

Mitsubishi FX3G-60MR/DS & FX3G-60MT/DS – Compact, high-performance PLC controller modules for advanced automation.
Boasts 60 I/O points (input/output) with relay (MR) or transistor (MT) output options for flexible system integration.
Supports up to 7,680 auxiliary relays, 4,096 state relays, and 8,000 data registers for complex control logic.
Features 21 high-speed counters (up to 60 kHz) and a built-in real-time clock for precise timing and counting tasks.
Offers 2,048 pointers, 6 interrupt inputs, and 8 nesting levels for optimized program execution.
Robust EEPROM latching for critical data – ideal for mission-critical industrial environments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi FX3G-60MR/DS and FX3G-60MT/DS are next-generation compact PLC controllers designed to deliver exceptional performance in space-constrained automation applications. With a rich set of built-in features including extensive relay and register capacity, high-speed counting, and a real-time clock, these modules empower engineers to tackle complex sequencing and motion control tasks with ease. Whether you choose the relay output (MR) for high-current switching or the transistor output (MT) for high-speed operation, the FX3G-60 series ensures reliable, long-term service in factory automation, packaging, and material handling systems.

Parameter	Specification
Auxiliary Relays	7,680 total (384 general M0–M383, 1,152 EEPROM latched M384–M1535, 6,144 general/optional latched M1536–M7679)
Special Auxiliary Relays	512 (M8000–M8511)
State Relays	4,096 total (1,000 EEPROM latched S0–S999, 3,096 general/optional latched S1000–S4095)
Timers	320 total (206×100 ms T0–T199 & T250–T255, 46×10 ms T200–T245, 68×1 ms T246–T249 & T256–T319)
Counters	235 total (16-bit & 32-bit; 36 general C0–C15 & C200–C219, 199 EEPROM latched C16–C199 & C220–C234)
High-Speed Counters	21 total (16 1-phase C235–C250, 5 2-phase C251–C255)
High-Speed Counter Speed	1-phase: 6 points max 60 kHz / 4 points 10 kHz / 2 points; 2-phase: 3 points max 30 kHz / 2 points 5 kHz / 1 point
Real-Time Clock	Year, month, day, hour, minute, second, day of the week
Data Registers	8,000 total (128 general D0–D127, 972 EEPROM latched D128–D1099, 6,900 general/optional latched D1100–D7999)
Extension Registers	24,000 (R0–R23999)
Extension File Registers	24,000 (ER0–R23999) internal/optional memory
Index Registers	16
Special Data Registers	256 (D8000–D8255) / 512 (D8000–D8511)
Pointers	2,048
Nestings	8
Interrupt Inputs	6
Constants	16-bit: K -32,768 to +32,767; H 0 to FFFF; 32-bit: K -2,147,483,648 to +2,147,483,647; H 0 to FFFF FFFF

I/O Configuration: 60-point I/O with relay (MR) or transistor (MT) output – supports sink/source input for flexible wiring.
Program Memory: 32K steps built-in, expandable via optional memory cassette for larger applications.
Communication Ports: Built-in RS-422/485 port for networking; optional Ethernet, CC-Link, or MODBUS modules.
Power Supply: 24 V DC (DS models) – wide operating voltage range ensures stability in noisy environments.
Environmental Ratings: Operating temperature 0–55°C, humidity 5–95% non-condensing – suitable for harsh industrial settings.
Certifications: CE, UL, and cUL marked – compliant with global safety standards.
