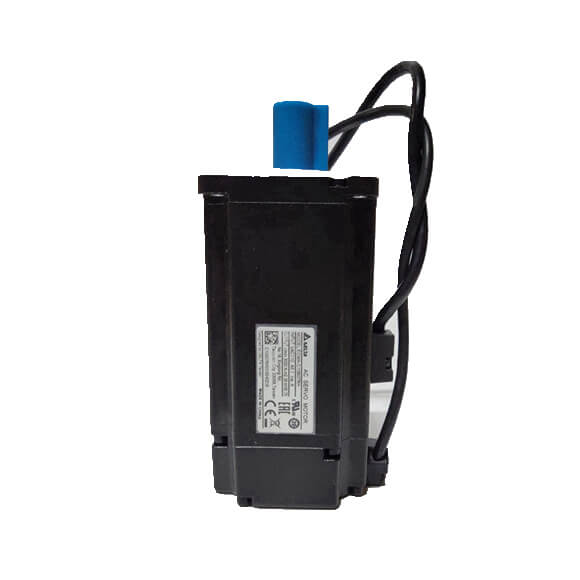

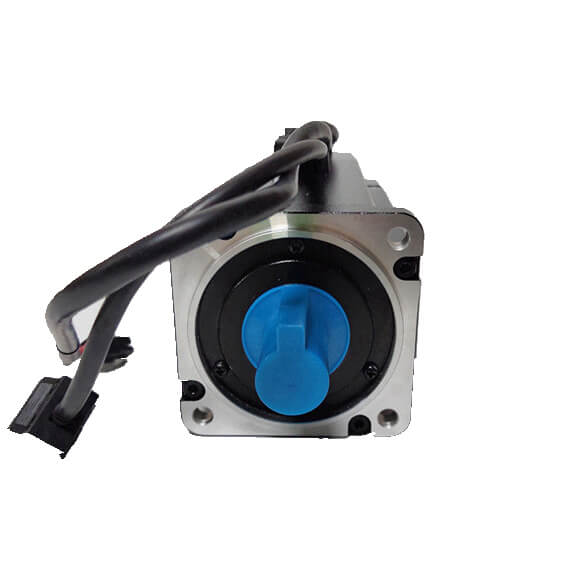

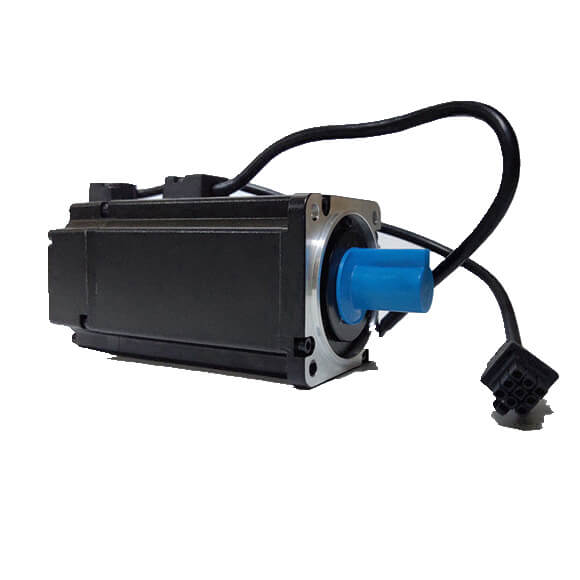

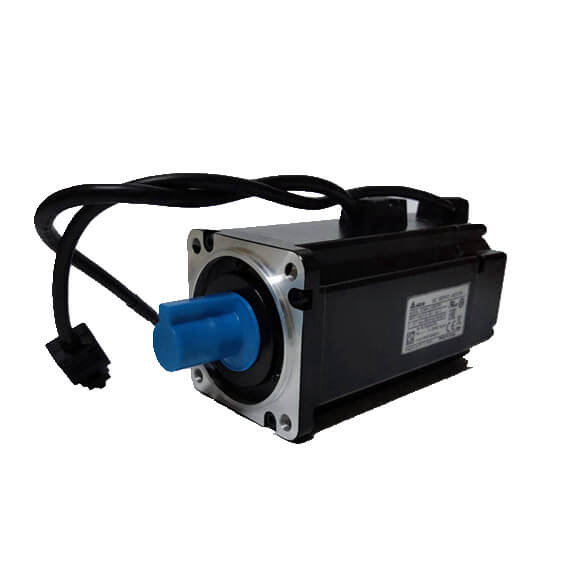

Delta Servo Motor ECMA-C10807RS

Series#: Delta

Product Details

Delta ASDA-A2 Servo Motor 750W ECMA-C10807RS – High-performance AC servo motor for precision motion control.
Rated output: 0.75 kW (750W) with a rated torque of 2.39 Nm and peak torque of 7.16 Nm.
Rated speed: 2000 r/min; maximum speed: 3000 r/min for dynamic applications.
Integrated with high-resolution encoder (17-bit or 20-bit) for ultra-smooth, low-vibration operation.
Compact, lightweight design (6.8 kg without brake) with Class A (UL) / Class B (CE) insulation.
Fast delivery from stock – ideal for OEM replacements, robotics, and CNC machinery.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Delta ASDA-A2 Servo Motor 750W ECMA-C10807RS is a cornerstone of modern industrial automation, engineered for demanding servo applications requiring high torque density and precise speed control. This motor belongs to the renowned Delta ECMA series, offering a rated output of 0.75 kW and a robust rated torque of 2.39 N·m. With a maximum torque capability of 7.16 N·m (300% of rated), it delivers exceptional acceleration and deceleration performance. The motor operates at a rated speed of 2000 r/min and can reach up to 3000 r/min, making it suitable for high-speed pick-and-place, packaging, and machine tool axes. Its low rotor inertia (8.17 x 10⁻⁴ kg·m² without brake) ensures rapid response and minimal settling time. The unit is fully compatible with Delta ASDA-A2 drives, supporting advanced auto-tuning and real-time gain adjustment. Every unit is 100% original, new, and tested to meet stringent quality standards, ensuring reliable operation in harsh industrial environments.

Parameter	Value (for 750W model)
Rated Output Power	0.75 kW
Rated Torque	2.39 N·m
Maximum Torque	7.16 N·m
Rated Speed	2000 r/min
Maximum Speed	3000 r/min
Rated Current	2.9 A
Maximum Current	8.7 A
Power Rating (kW/s)	7 kW/s
Rotor Moment of Inertia (without brake)	8.17 x 10⁻⁴ kg·m²
Mechanical Time Constant	1.91 ms
Torque Constant (KT)	0.83 N·m/A
Voltage Constant (KE)	30.9 mV/(r/min)
Armature Resistance	0.57 Ohm
Armature Inductance	7.39 mH
Electrical Time Constant	12.96 ms
Insulation Class	Class A (UL), Class B (CE)
Insulation Resistance	100 MΩ min, DC 500V
Insulation Strength	1.8 kVac, 1 sec
Weight (without brake)	6.8 kg
Weight (with brake)	8.2 kg
Max. Radial Shaft Load	490 N
Max. Thrust Shaft Load	98 N
Brake Holding Torque	10 N·m (min)
Brake Power Consumption (at 20°C)	19 W
Brake Release Time	10 ms (max)
Brake Pull-in Time	70 ms (max)
Vibration Grade	15 µm
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 80°C
Operating Humidity	20 to 90% RH (non-condensing)
Storage Humidity	20 to 90% RH (non-condensing)
Vibration Capacity	2.5 G
IP Rating	IP65 (with waterproof connectors or oil seal fitted to rotating shaft)

High Torque Density: Delivers 2.39 N·m continuous torque in a compact 6.8 kg frame, ideal for space-constrained machinery.
Advanced Feedback: Supports 17-bit or 20-bit absolute encoder (optional) for precise position control and zero-backlash operation.
Low Inertia Design: Rotor inertia of 8.17 x 10⁻⁴ kg·m² ensures fast acceleration and deceleration, minimizing cycle times.
Robust Construction: IP65-rated housing protects against dust and water jets, ensuring longevity in washdown or dusty environments.
Integrated Brake Option: With brake version weighs only 8.2 kg, providing 10 N·m holding torque for vertical axis safety.
Thermal Management: Class A/Class B insulation with 1.8 kVac dielectric strength ensures reliable operation under full load.
Global Compliance: Meets UL and CE standards, with vibration grade of 15 µm for smooth, low-noise performance.
