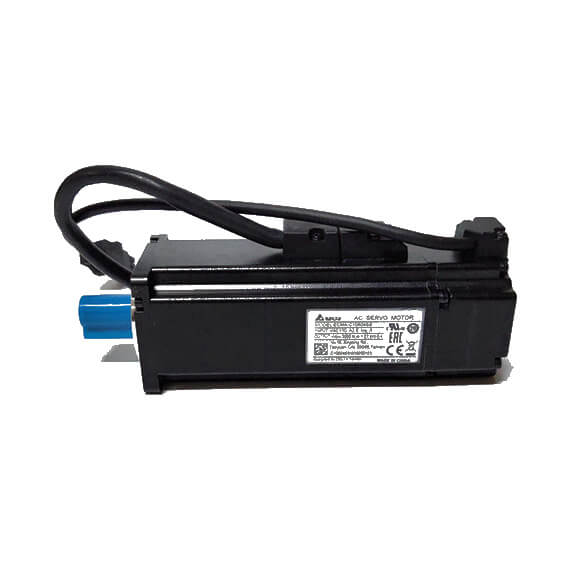

Delta ECMA-C10604RS Servo Motor

Series#: Delta

Product Details

High-performance Delta ECMA-C10604RS servo motor, 400W rated power for precision motion control.
Rated torque of 1.27 Nm and maximum speed of 3000 rpm, ideal for low-inertia applications.
Built with a 20-bit incremental encoder for high-resolution feedback and smooth operation.
Includes a holding brake, key-way shaft, and no oil seal for reliable positioning in vertical loads.
Compatible with Delta ASD-A2 series servo drives for seamless integration.
Compact frame design optimizes space in automated machinery and robotics.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Delta ECMA-C10604RS is a 400W servo motor from the renowned ECMA series, engineered for demanding industrial automation tasks requiring precise speed and position control. This low-inertia motor delivers a rated torque of 1.27 Nm and a maximum speed of 3000 rpm, making it an excellent choice for applications such as CNC machines, packaging equipment, and robotic arms. Equipped with a 20-bit incremental encoder, it ensures high-resolution feedback for exceptional accuracy. The integrated holding brake provides secure holding in vertical or gravity-dependent axes, while the key-way shaft design ensures robust torque transmission. The ECMA-C10604RS is optimized for use with Delta ASD-A2 servo drives, offering full closed-loop control and CANopen communication options. Its compact, durable construction guarantees long-term reliability in harsh industrial environments.

Parameter	Specification
Model	ECMA-C10604RS
Rated Power	400 W
Rated Torque	1.27 Nm
Maximum Speed	3000 rpm
Encoder Type	20-bit Incremental
Inertia Type	Low Inertia
Brake	With Brake
Oil Seal	No Oil Seal
Shaft Type	Key-way
Rated Current	2.8 A (typical)
Voltage Rating	220 VAC
Protection Class	IP40
Insulation Class	Class B
Ambient Temperature	0 to 40 °C
Vibration Grade	V15
Weight	Approx. 1.8 kg
Mounting Flange	60 mm (standard)
Compatible Driver	ASD-A2-0421 Series
Communication	Pulse/Direction or Analog (via driver)
