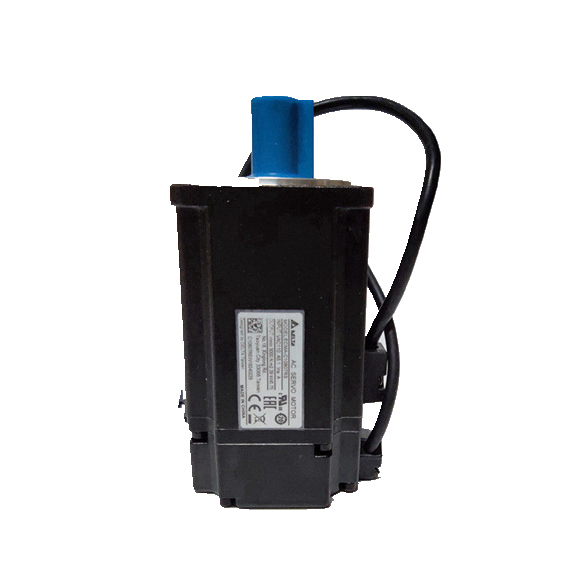

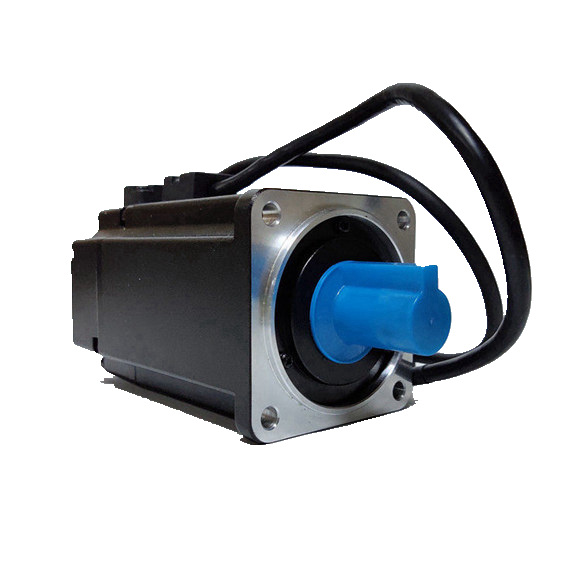

The DELTA ASDA-A2 SERVO MOTOR 750W ECMA-C20807RS is a cornerstone of modern servo drive systems, designed for engineers who demand precision, reliability, and flexibility in motion control. This model, part of the ECMA-C series, delivers a robust 750W output with a rated torque of 2.39 Nm at 3000 rpm, utilizing a low inertia rotor for exceptional dynamic response. The 20-bit encoder ensures ultra-fine resolution, enabling accurate position feedback for closed-loop applications. Whether equipped with a brake for holding loads, an oil seal for harsh environments, or a key-way shaft for direct coupling, this motor adapts to diverse industrial needs. Below is a comprehensive specification table detailing the full range of compatible motors and drivers in the ASDA-A2 family.
Power Category
Model Code
Specification
200W
ASD-A2-0221-B
Servo driver, 200W, 220V, Basic type
ASD-A2-0221-L
Servo driver, 200W, 220V, Full closed-loop type
ASD-A2-0221-U
Servo driver, 200W, 220V, Full closed-loop with CANopen bus & DI extended slot
ASD-A2-0221-M
Servo driver, 200W, 220V, Full closed-loop with CANopen bus
200W Motors
ECMA-C10602ES
Servo motor, 200W, 0.64 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, no oil seal, with key-way
ECMA-C10602PS
Servo motor, 200W, 0.64 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, no oil seal, with key-way (screw holes)
ECMA-C10602FS
Servo motor, 200W, 0.64 Nm, 3000 rpm, 20-bit encoder, low inertia, with brake, with key-way, no oil seal
ECMA-C10602GS
Servo motor, 200W, 0.64 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, with oil seal, with key-way
400W
ASD-A2-0421-B
Servo driver, 400W, 220V, Basic type
ASD-A2-0421-L
Servo driver, 400W, 220V, Full closed-loop type
ASD-A2-0421-U
Servo driver, 400W, 220V, Full closed-loop with CANopen bus & DI extended slot
ASD-A2-0421-M
Servo driver, 400W, 220V, Full closed-loop with CANopen bus
400W Motors
ECMA-C10604ES
Servo motor, 400W, 1.27 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, no oil seal, with key-way
ECMA-C10604FS
Servo motor, 400W, 1.27 Nm, 3000 rpm, 20-bit encoder, low inertia, with brake, with key-way, no oil seal
ECMA-C10604GS
Servo motor, 400W, 1.27 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, with oil seal, with key-way
500W Motor
ECMA-E11305ES
Servo motor, 500W, 2.39 Nm, 2000 rpm, 20-bit encoder, middle inertia, without brake, no oil seal, with key-way
750W
ASD-A2-0721-B
Servo driver, 750W, 220V, Basic type
ASD-A2-0721-L
Servo driver, 750W, 220V, Full closed-loop type
ASD-A2-0721-U
Servo driver, 750W, 220V, Full closed-loop with CANopen bus & DI extended slot
ASD-A2-0721-M
Servo driver, 750W, 220V, Full closed-loop with CANopen bus
750W Motors
ECMA-C10807ES
Servo motor, 750W, 2.39 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, no oil seal, with key-way
ECMA-C10807FS
Servo motor, 750W, 2.39 Nm, 3000 rpm, 20-bit encoder, low inertia, with brake, with key-way, no oil seal
ECMA-C10807HS
Servo motor, 750W, 2.39 Nm, 3000 rpm, 20-bit encoder, low inertia, with brake, with key-way & oil seal
ECMA-C20807RS
Servo motor, 750W, 2.39 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, with oil seal, with key-way (screw holes)
1.0 kW
ASD-A2-1021-B
Servo driver, 1.0 kW, 220V, Basic type
ASD-A2-1021-L
Servo driver, 1.0 kW, 220V, Full closed-loop type
ASD-A2-1021-U
Servo driver, 1.0 kW, 220V, Full closed-loop with CANopen bus & DI extended slot
ASD-A2-1021-M
Servo driver, 1.0 kW, 220V, Full closed-loop with CANopen bus
1.0 kW Motors
ECMA-C10910PS
Servo motor, 1.0 kW, 3.18 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, no oil seal, with key-way (screw holes)
ECMA-C10910RS
Servo motor, 1.0 kW, 3.18 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, with oil seal, with key-way (screw holes)
ECMA-C11010ES
Servo motor, 1.0 kW, 3.18 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, no oil seal, with key-way
ECMA-C11010GS
Servo motor, 1.0 kW, 3.18 Nm, 3000 rpm, 20-bit encoder, low inertia, without brake, with key-way & oil seal
ECMA-C11010FS
Servo motor, 1.0 kW, 3.18 Nm, 3000 rpm, 20-bit encoder, low inertia, with brake, with key-way, no oil seal
ECMA-E11310ES
Servo motor, 1.0 kW, 4.77 Nm, 2000 rpm, 20-bit encoder, middle inertia, without brake, no oil seal, with key-way
ECMA-E11310FS
Servo motor, 1.0 kW, 4.77 Nm, 2000 rpm, 20-bit encoder, middle inertia, with brake, with key-way, no oil seal
ECMA-E11310GS
Servo motor, 1.0 kW, 4.77 Nm, 2000 rpm, 20-bit encoder, middle inertia, without brake, with key-way & oil seal
0.8 kW Motor
ECMA-F11308ES
Servo motor, 0.8 kW, 4.77 Nm, 1500 rpm, 20-bit encoder, big inertia, without brake, no oil seal, with key-way
