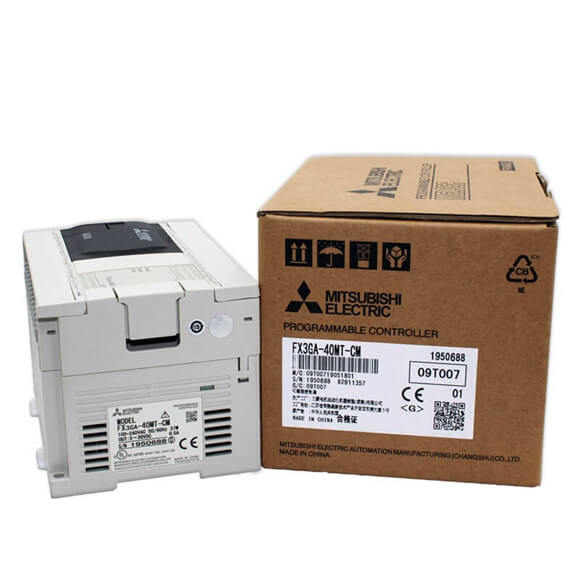

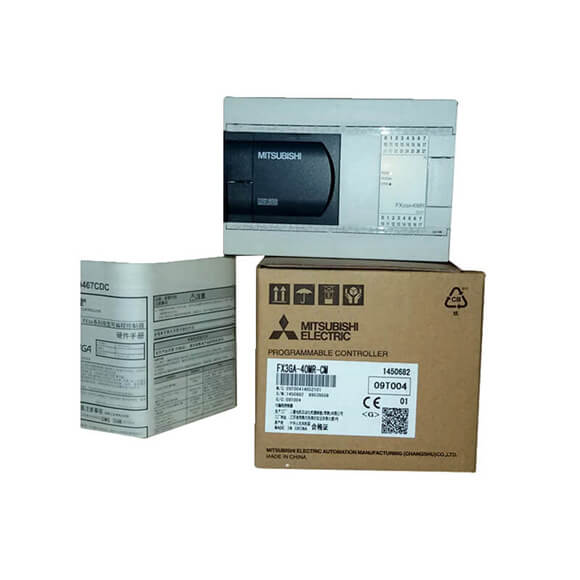

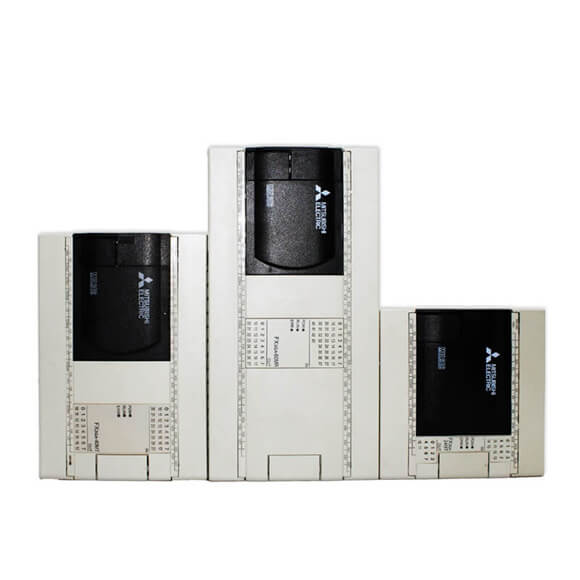

Mitsubishi PLC Controller Module FX3GA-40MR-CM/FX3GA-40MT-CM

Mitsubishi PLC Controller Module FX3GA-40MR-CM/FX3GA-40MT-CM

Series#: Mitsubishi

Product Details

Mitsubishi PLC Controller Module FX3GA-40MR-CM / FX3GA-40MT-CM – The core of your compact automation system.
40 I/O points for flexible control in space-constrained applications.
Built-in high-speed counters up to 60 kHz for precise motion and positioning.
EEPROM latching for critical data retention without backup battery.
Rich instruction set with 8,000 data registers and 4,096 state relays.
Integrated real-time clock for time-stamped events and scheduling.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The Mitsubishi PLC Controller Module FX3GA-40MR-CM / FX3GA-40MT-CM represents a significant leap in compact yet powerful automation, combining the robust FX3G architecture with enhanced memory and speed. This module is engineered for demanding applications requiring reliable control, extensive data handling, and high-speed I/O processing. With 40 I/O points and a rich set of built-in functions, it eliminates the need for many external modules, reducing overall system cost and complexity. The FX3GA-40MR-CM (relay output) and FX3GA-40MT-CM (transistor output) variants provide flexible output options for different load requirements. Below is the detailed technical specification extracted from the manufacturer’s datasheet, formatted for quick reference.

Parameter	Specification
Auxiliary Relays	7,680 total: 384 general (M0–M383), 1,152 EEPROM latched (M384–M1535), 6,144 general/optional latched (M1536–M7679)
Special Auxiliary Relays	512 (M8000–M8511)
State Relays	4,096 total: 1,000 EEPROM latched (S0–S999), 3,096 general/optional latched (S1000–S4095)
Timers	320 total: 206 × 100 ms (T0–T199, T250–T255), 46 × 10 ms (T200–T245), 68 × 1 ms (T246–T249, T256–T319)
Counters (16 & 32 bit)	235 total: 36 general (C0–C15, C200–C219), 199 EEPROM latched (C16–C199, C220–C234)
High-Speed Counters	21 total: 16 × 1-phase (C235–C250), 5 × 2-phase (C251–C255)
High-Speed Counter Speed	1-phase max: 60 kHz / 6 points, 10 kHz / 4 points; 2-phase max: 30 kHz / 3 points, 5 kHz / 2 points
Real-Time Clock	Year, month, day, hour, minute, second, day of the week
Data Registers	8,000 total: 128 general (D0–D127), 972 EEPROM latched (D128–D1099), 6,900 general/optional latched (D1100–D7999)
Extension Registers	24,000 (R0–R23999)
Extension File Registers	24,000 (ER0–R23999) internal/optional memory
Index Registers	16 (V0–V7, Z0–Z7)
Special Data Registers	256 (D8000–D8255), expandable to 512 (D8000–D8511)
Pointers	2,048 (P0–P2047)
Nestings	8 (N0–N7)
Interrupt Inputs	6 (I0–I5)
Constants	16-bit: K -32,768 to +32,767, H 0 to FFFF; 32-bit: K -2,147,483,648 to +2,147,483,647, H 0 to FFFF FFFF

Memory Architecture: The FX3GA-40MR-CM / FX3GA-40MT-CM utilizes a high-capacity memory map with 8,000 data registers and 4,096 state relays, enabling complex sequential and data-intensive applications. The extensive EEPROM latching (e.g., 1,152 auxiliary relays, 972 data registers) ensures critical process data is retained without a backup battery.
High-Speed Processing: With 21 high-speed counters, including 5 two-phase counters capable of 30 kHz, this module excels in applications like encoder feedback, speed measurement, and precise positioning. The interrupt inputs (6 points) provide immediate response to critical events.
Timer and Counter Flexibility: The 320 timers span three time bases (100 ms, 10 ms, 1 ms), allowing fine-tuned control for everything from simple delays to high-speed pulse timing. The 235 counters include 16-bit and 32-bit options for both simple and high-resolution counting tasks.
Real-Time Clock: The integrated RTC tracks year, month, day, hour, minute, second, and day of the week, enabling time-stamped data logging, scheduled maintenance, and event-driven control without an external clock module.
Expandable I/O and Memory: While the base unit offers 40 I/O points, the FX3GA series supports extension modules for I/O expansion, and the 24,000 extension registers (R0–R23999) and file registers (ER0–R23999) provide ample space for recipe storage, lookup tables, and data logging.
