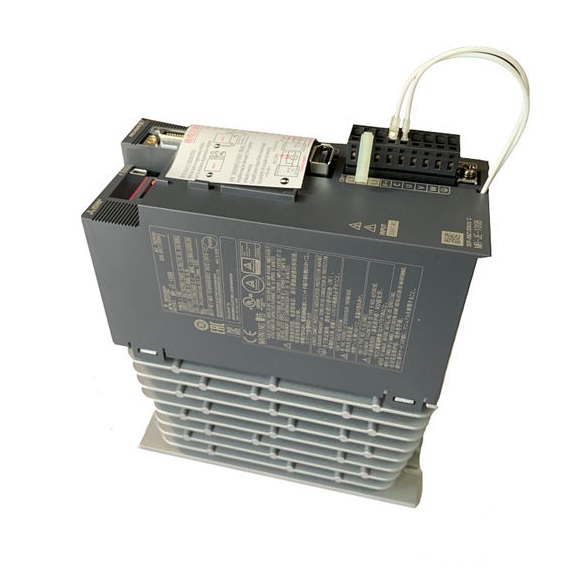

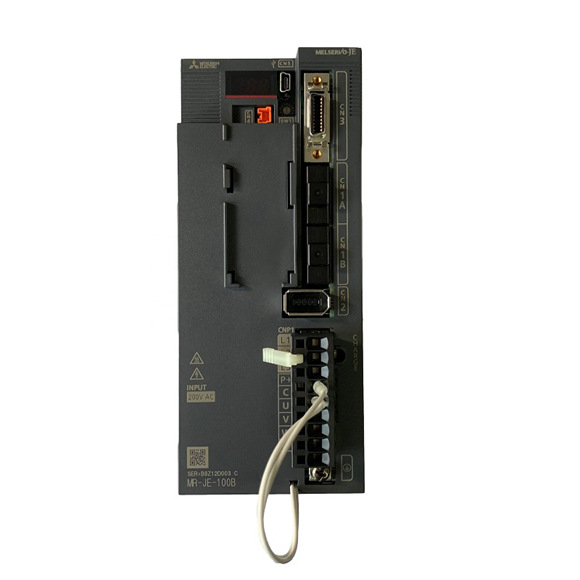

Mitsubishi MR-JE-100B Servo Drive

Series#: Mitsubishi

Product Details

Advanced sine-wave PWM current control for ultra-smooth motor operation and high torque precision.
Built-in dynamic brake and regenerative resistor (20W) for safe, reliable deceleration in 1KW applications.
Supports SSCNET III/H communication with 0.444 ms or 0.888 ms cycle for high-speed multi-axis synchronization.
Integrated advanced vibration suppression, adaptive filter, and auto-tuning for optimal machine performance.
Compact IP20 natural cooling design (mass 1.5 kg) ideal for space-constrained industrial cabinets.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi MR-JE-100B is a high-performance 1KW servo drive from the MR-JE-B series, engineered for precise motion control in demanding automation environments. This model delivers reliable torque and speed regulation through sine-wave PWM control and a robust current control method, making it suitable for applications like packaging, material handling, and machine tools. With a rated current of 6A and support for 3-phase or 1-phase 200-240 VAC input, the MR-JE-100B offers flexibility in power supply configuration while maintaining consistent performance. Its built-in dynamic brake and 20W regenerative resistor ensure safe stopping and energy dissipation. The drive features SSCNET III/H communication for high-speed network-based control, along with advanced functions such as adaptive filter II, tough drive, and drive recorder for diagnostics. Compliance with global standards and an IP20 enclosure ensure reliable operation in indoor industrial settings.

Specification	MR-JE-10B	MR-JE-20B	MR-JE-70B	MR-JE-100B	MR-JE-200B	MR-JE-300B
Rated Output Power	0.1 KW	0.2 KW	0.75 KW	1 KW	2 KW	3 KW
Power Supply Voltage	3-phase or 1-phase 200-240 VAC, 50/60 Hz	3-phase or 1-phase 200-240 VAC, 50/60 Hz (Note 8)	3-phase 200-240 VAC, 50/60 Hz
Rated Current (A)	1.1	1.5	5.8	6	11	11
Power Supply Current (A) [Note 7]	0.9	1.5	3.8	5	10.5	14
Permissible Voltage Fluctuation	170-264 VAC (3-phase or 1-phase)	170-264 VAC (3-phase or 1-phase, Note 8)	170-264 VAC (3-phase)
Permissible Frequency Fluctuation	±5% max
Interface Power Supply	24 VDC ±10% (0.1 A required)
Control Method	Sine-wave PWM control / Current control
Built-in Regenerative Resistor Power (W)	–	–	20	20	100	100
Dynamic Brake	Built-in (Note 4)
SSCNET III/H Communication Cycle	0.444 ms or 0.888 ms
Communication Interface	USB (MR Configurator2 compatible)
Servo Functions	Advanced vibration suppression II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive, drive recorder, tightening & press-fit, machine diagnosis, power monitoring, lost motion compensation
Protective Functions	Overcurrent, regenerative overvoltage, overload, motor overheat, encoder error, regenerative error, undervoltage, instantaneous power failure, overspeed, error excessive, hotline forced stop
Compliance to Standards	Refer to catalog for global standards and regulations
Enclosure (IP Rating)	Natural cooling, open (IP20)	Force cooling, open (IP20)
3-Phase Power Input	Possible
1-Phase Power Input	Possible	Not possible	–
Ambient Temperature	Operation: 0°C to 55°C (non-freezing); Storage: -20°C to 65°C (non-freezing)
Ambient Humidity	Operation/Storage: 90% RH max (non-condensing)
Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Altitude	1000 m or less above sea level
Vibration Resistance	5.9 m/s² at 10 to 55 Hz (X, Y, Z axes)
Mass (kg)	0.8	0.8	1.5	1.5	2.1	2.1
