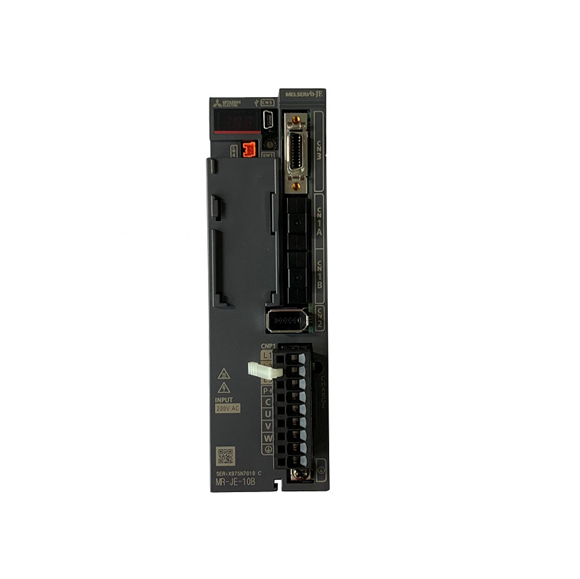

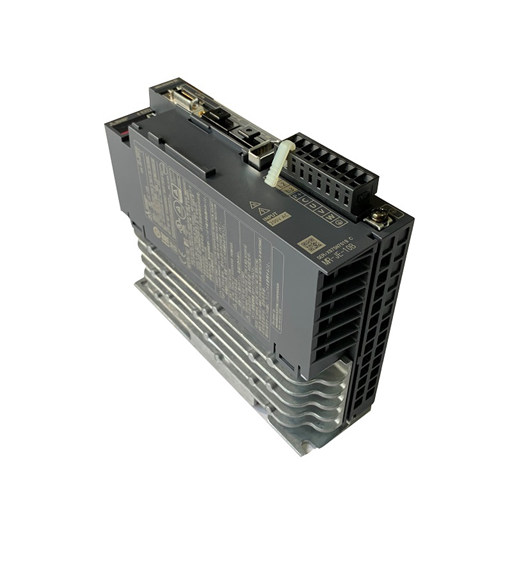

Mitsubishi MR-JE-10B Servo Drive

Series#: Mitsubishi

Product Details

Mitsubishi Servo Drive MR-JE-10B – 100W rated output for precise motion control in compact automation systems.
SSCNET III/H high-speed communication cycle (0.444 ms / 0.888 ms) for real-time multi-axis synchronization.
Advanced servo functions: auto tuning, adaptive filter II, tough drive, and vibration suppression control II.
Built-in dynamic brake and regenerative resistor (20W) for reliable stopping and energy management.
Wide input voltage range: 3-phase or 1-phase 200–240 V AC, with IP20 natural cooling enclosure.
USB connectivity for easy setup via MR Configurator2, plus comprehensive protective functions.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi MR-JE-10B is a 100W servo drive from the MR-JE-B series, designed for high-performance motion control in industrial automation. This compact amplifier delivers reliable operation with sine-wave PWM control and supports SSCNET III/H communication for precise multi-axis coordination. It features built-in dynamic braking, a 20W regenerative resistor, and advanced servo functions like adaptive filter II and tough drive for enhanced stability. With a wide input voltage range of 170–264 V AC and IP20 protection, the MR-JE-10B is ideal for packaging, textile, and small machine tool applications. All units are 100% original and new, ready for immediate shipment.

Parameter	MR-JE-10B (100W)	MR-JE-20B (200W)	MR-JE-70B (700W)	MR-JE-100B (1kW)	MR-JE-200B (2kW)	MR-JE-300B (3kW)
Rated current (3-phase 170V AC) [A]	1.1	1.5	5.8	6.0	11.0	11.0
Voltage/frequency	3-phase or 1-phase 200–240 V AC, 50/60 Hz	3-phase or 1-phase 200–240 V AC, 50/60 Hz (Note 8)	3-phase 200–240 V AC, 50/60 Hz
Rated current (Note 7) [A]	0.9	1.5	3.8	5.0	10.5	14.0
Permissible voltage fluctuation	3-phase or 1-phase 170–264 V AC	3-phase or 1-phase 170–264 V AC (Note 8)	3-phase 170–264 V AC
Permissible frequency fluctuation	±5% maximum
Interface power supply	24 V DC ±10% (required current: 0.1 A)
Control method	Sine-wave PWM control/current control
Tolerable regenerative power (built-in resistor) [W]	–	–	20	20	100	100
Dynamic brake	Built-in (Note 4)
SSCNET III/H communication cycle	0.444 ms, 0.888 ms
Communication function	USB (MR Configurator2 compatible)
Servo functions	Advanced vibration suppression II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive, drive recorder, tightening & press-fit, machine diagnosis, power monitoring, lost motion compensation
Protective functions	Overcurrent, regenerative overvoltage, overload (electronic thermal), motor overheat, encoder error, regenerative error, undervoltage, instantaneous power failure, overspeed, error excessive, hotline forced stop (Note 9)
Compliance to global standards	Refer to catalog for conformity details
Structure (IP rating)	Natural cooling, open (IP20)	Force cooling, open (IP20)
3-phase power supply input	Possible
1-phase power supply input	Possible	Not possible	–
Ambient temperature	Operation: 0°C to 55°C (non-freezing); Storage: -20°C to 65°C (non-freezing)
Ambient humidity	Operation/Storage: 90% RH max (non-condensing)
Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Altitude	1000 m or less above sea level
Vibration resistance	5.9 m/s² at 10–55 Hz (X, Y, Z axes)
Mass [kg]	0.8	0.8	1.5	1.5	2.1	2.1
