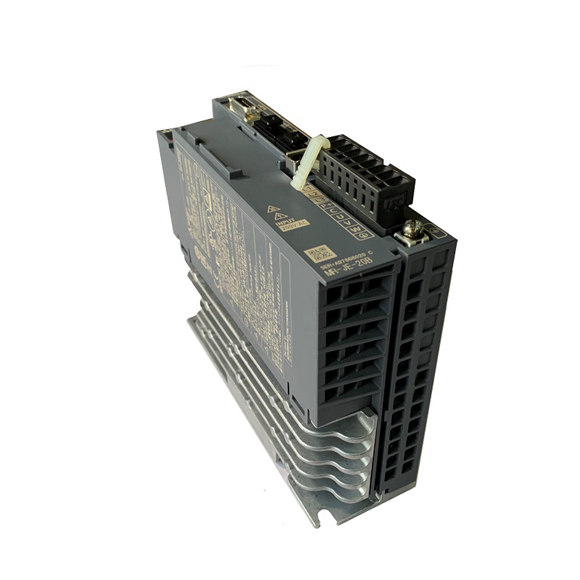

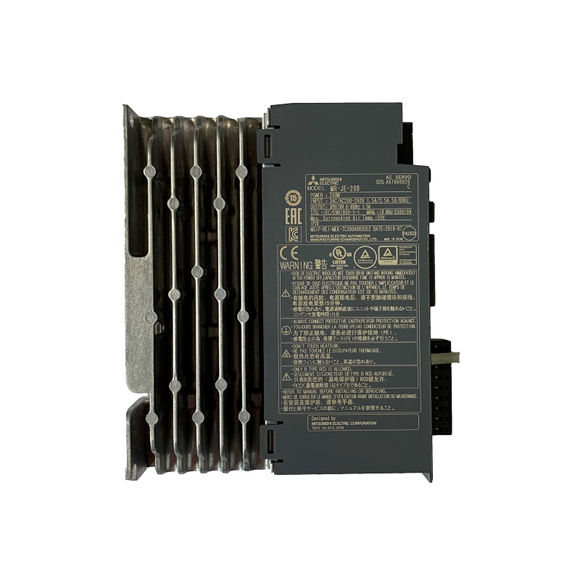

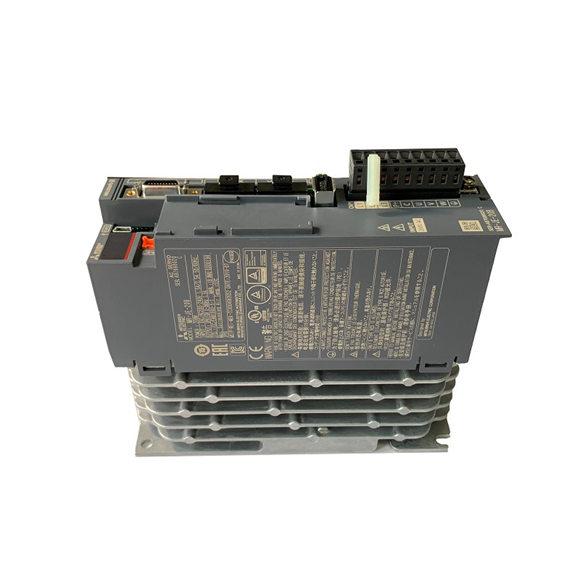

Mitsubishi MR-JE-20B Servo Drive

Series#: Mitsubishi

Product Details

Mitsubishi MR-JE-20B Servo Drive – 200W rated output, part of the renowned MR-JE-B series.
Sine-wave PWM current control with built-in dynamic brake for precise, safe motion.
Advanced servo functions: auto-tuning, adaptive filter II, tough drive, and press-fit control.
Supports 3-phase 170V AC or 1-phase/3-phase 200-240V AC input for flexible installation.
USB communication interface for easy PC configuration via MR Configurator2.
Compact, natural-cooled IP20 design – mass only 0.8 kg, ideal for space-limited cabinets.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi MR-JE-20B is a high-performance 200W servo amplifier designed for precision motion control in industrial automation. As a standard model in the MR-JE-B series, it delivers reliable sine-wave PWM current control with a built-in dynamic brake, ensuring safe and accurate positioning. This drive supports both 3-phase 170V AC and 1-phase/3-phase 200-240V AC power inputs, making it adaptable to global electrical standards. With advanced features like auto-tuning, adaptive filter II, tough drive, and press-fit functionality, the MR-JE-20B excels in demanding applications such as packaging, robotics, and machine tools. The unit is fully compliant with global safety standards and is delivered as 100% original and new, ready for immediate shipment.

Specification	MR-JE-20B
Rated Output	200 W
Power Supply	3-phase 170 V AC (standard) or 1-phase/3-phase 200-240 V AC, 50/60 Hz
Rated Current (3-phase 170V)	1.5 A
Rated Current (1-phase/3-phase 200-240V)	1.5 A
Permissible Voltage Fluctuation	3-phase: 170-264 V AC; 1-phase: 170-264 V AC
Permissible Frequency Fluctuation	±5% max
Interface Power Supply	24 V DC ±10%, 0.1 A required
Control Method	Sine-wave PWM current control
Built-in Regenerative Resistor Tolerable Power	Not applicable (none built-in)
Dynamic Brake	Built-in
SSCNET III/H Communication Cycle	0.444 ms or 0.888 ms
Communication Interface	USB (MR Configurator2 compatible)
Servo Functions	Advanced vibration suppression II, adaptive filter II, robust filter, auto-tuning, one-touch tuning, tough drive, drive recorder, tightening & press-fit, machine diagnosis, power monitoring, lost motion compensation
Protective Functions	Overcurrent, regenerative overvoltage, overload (electronic thermal), motor overheat, encoder error, regenerative error, undervoltage, instantaneous power failure, overspeed, error excessive, hotline forced stop
Global Standards Compliance	Refer to catalog for CE, UL, etc.
Structure (IP Rating)	Natural cooling, open type (IP20)
3-Phase Power Input	Possible
1-Phase Power Input	Possible (with derating, see Note 8)
Ambient Temperature	Operation: 0°C to 55°C; Storage: -20°C to 65°C (non-freezing)
Ambient Humidity	Operation/Storage: 90% RH max (non-condensing)
Ambience	Indoors, no direct sunlight, no corrosive/inflammable gas, oil mist, or dust
Altitude	≤ 1000 m above sea level
Vibration Resistance	5.9 m/s² at 10-55 Hz (X, Y, Z axes)
Mass	0.8 kg
