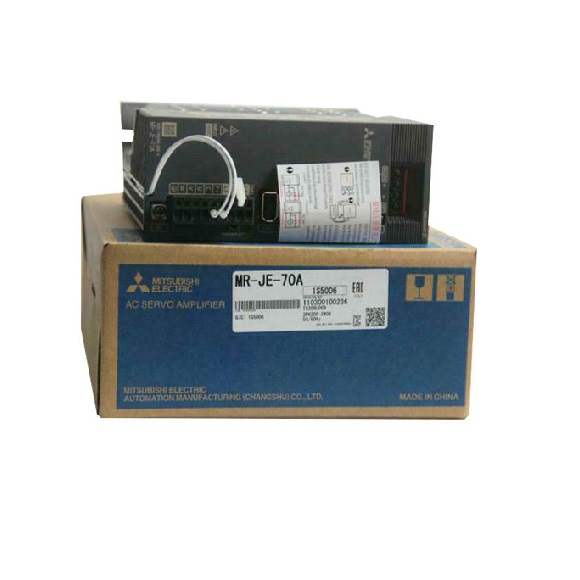

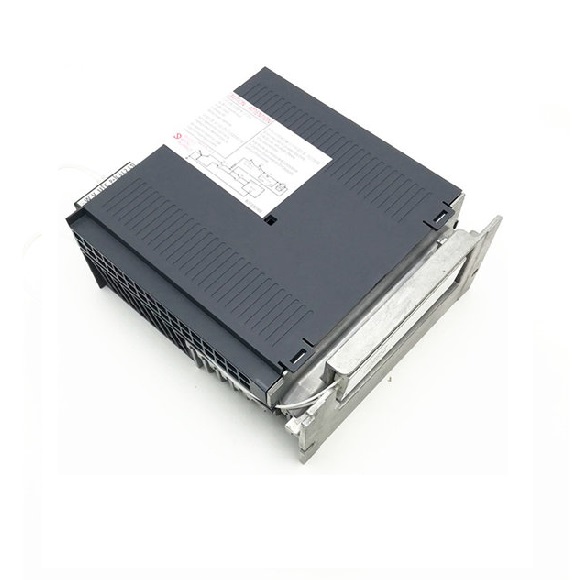

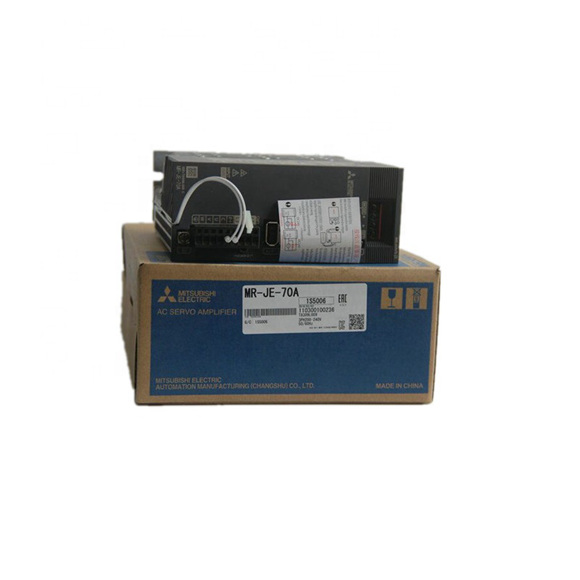

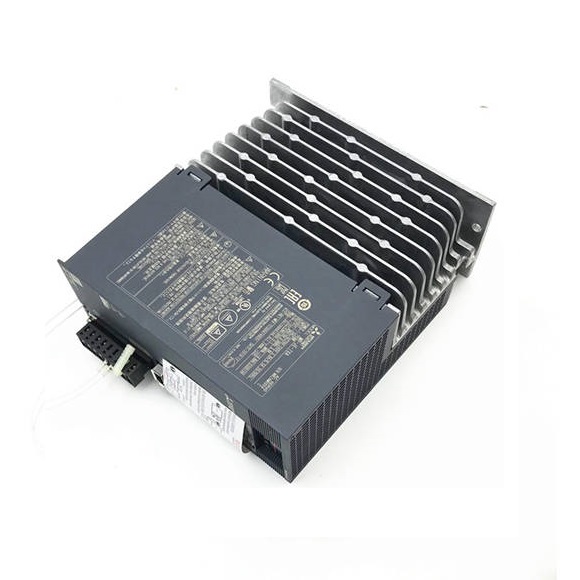

Mitsubishi MR-JE-70A Servo Drive

Series#: Mitsubishi

Product Details

High-performance Mitsubishi servo drive MR-JE-70A, rated for 700W servo motor applications.
Provides precise position, speed, and torque control using sine-wave PWM and current control methods.
Built-in dynamic brake and regenerative resistor (20W tolerance) for reliable stopping and energy management.
Supports USB and RS-422/RS-485 communication for easy setup and multi-axis (up to 32 axes) networking.
Advanced vibration suppression and adaptive filter for smooth, stable operation in demanding environments.
Compact, natural-cooled design with IP20 protection, suitable for 3-phase or 1-phase 200-240V AC input.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi MR-JE-70A is a high-reliability servo drive designed for 700W class servo motors, delivering exceptional performance in industrial automation applications. This model features a rated output voltage of 3-phase 170 V AC and supports a wide input voltage range of 170 V AC to 264 V AC (3-phase or 1-phase) with a frequency tolerance of ±5%. The drive incorporates advanced control algorithms, including sine-wave PWM and current control, ensuring precise motion control with minimal torque ripple. Its built-in regenerative resistor handles up to 20W of regenerative power, while the dynamic brake provides safe and rapid deceleration. The MR-JE-70A is equipped with a high-resolution encoder interface (131072 pulses/rev) and supports electronic gear ratios for flexible positioning. With a rated current of 5.8 A and a mass of 1.5 kg, this unit is optimized for space-saving cabinet installations. It offers robust protective functions such as overcurrent, overvoltage, and overload shut-off, making it a dependable choice for critical automation systems.

Parameter	MR-JE-70A
Output Rated Voltage	3-phase 170 V AC
Rated Current [A]	5.8
Main Circuit Voltage/Frequency	3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Main Circuit Rated Current [A]	3.8
Permissible Voltage Fluctuation	3-phase or 1-phase 170 V AC to 264 V AC
Permissible Frequency Fluctuation	±5% maximum
Interface Power Supply	24 V DC ± 10% (required current capacity: 0.3 A)
Control Method	Sine-wave PWM control / Current control method
Tolerable Regenerative Power (Built-in Resistor) [W]	20
Dynamic Brake	Built-in
Communication Function	USB (MR Configurator2 compatible), RS-422/RS-485 (1:n communication up to 32 axes)
Encoder Output Pulse	Compatible (A/B/Z-phase pulse)
Analog Monitor	2 channels
Maximum Input Pulse Frequency	4 Mpulses/s (differential receiver), 200 kpulses/s (open-collector)
Positioning Feedback Pulse	Encoder resolution: 131072 pulses/rev
Command Pulse Multiplying Factor	Electronic gear A/B multiple, A: 1 to 16777215, B: 1 to 16777215, 1/10 < A/B < 4000
Positioning Complete Width Setting	0 pulse to ±65535 pulses (command pulse unit)
Error Excessive	±3 rotations
Torque Limit	Set by parameters or external analog input (0 V DC to +10 V DC / maximum torque)
Speed Control Range	Analog speed command 1:2000, internal speed command 1:5000
Analog Speed Command Input	0 V DC to ±10 V DC / rated speed (Speed at 10 V is changeable with [Pr. PC12])
Speed Fluctuation Rate	±0.01% maximum (load fluctuation 0% to 100%), 0% (power fluctuation: ±10%); ±0.2% maximum (ambient temperature: 25℃ ± 10℃) only when using analog speed command
Analog Torque Command Input	0 V DC to ±8 V DC / maximum torque (input impedance: 10 kΩ to 12 kΩ)
Speed Limit	Set by parameters or external analog input (0 V DC to ±10 V DC / rated speed)
Positioning Mode	Point table method, program method
Servo Function	Advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function, power monitoring function
Protective Functions	Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection
Compliance to Global Standards	Refer to “Conformity with global standards and regulations” in the catalog.
Structure (IP Rating)	Natural cooling, open (IP20)
3-Phase Power Supply Input	Possible
1-Phase Power Supply Input	Possible
Ambient Temperature	Operation: 0℃ to 55℃ (non-freezing), storage: -20℃ to 65℃ (non-freezing)
Ambient Humidity	Operation/Storage: 90 %RH maximum (non-condensing)
Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Altitude	1000 m or less above sea level
Vibration Resistance	5.9 m/s² at 10 Hz to 55 Hz (directions of X, Y and Z axes)
Mass [kg]	1.5
