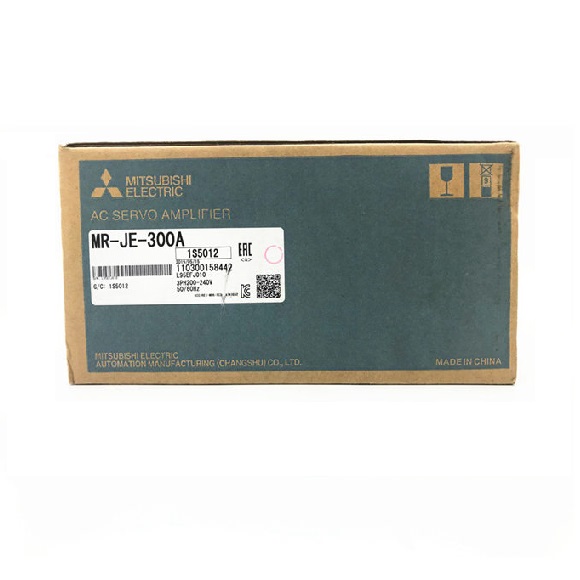

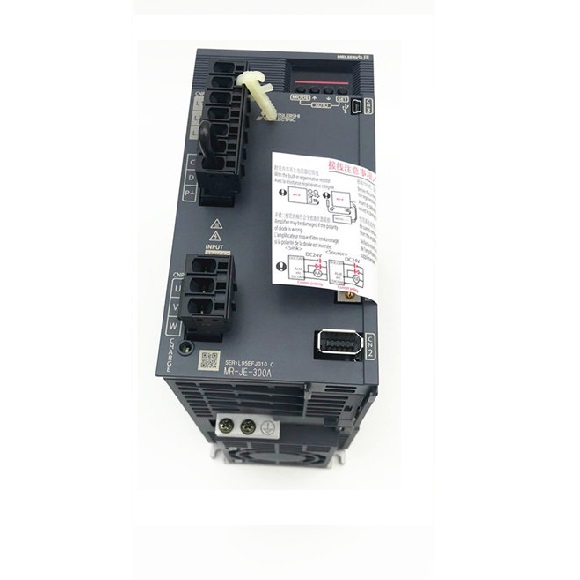

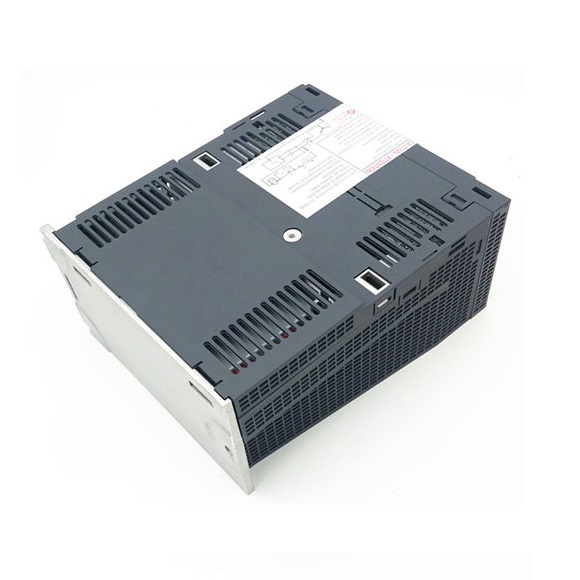

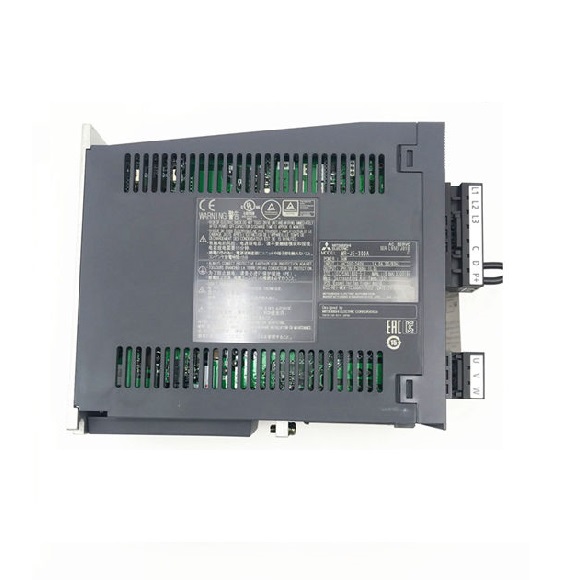

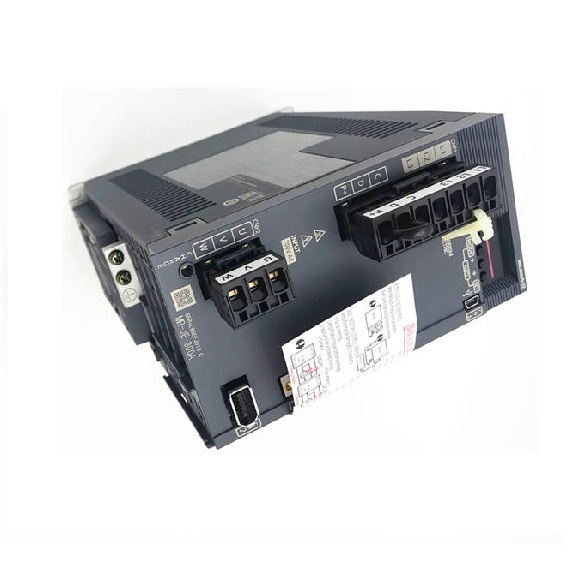

Mitsubishi MR-JE-300A Servo Drive

Series#: Mitsubishi

Product Details

Mitsubishi MR-JE-300A Servo Drive, 3KW rated output for high-performance motion control.
Advanced Sine-wave PWM control with built-in dynamic brake for reliable stopping.
Supports USB and RS-422/485 communication for easy setup and multi-axis networking.
Integrated protective functions including overcurrent, overload, and undervoltage shut-off.
Compact forced-air cooling design with IP20 rating for industrial environments.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi MR-JE-300A is a robust 3KW servo drive engineered for demanding industrial automation applications. As part of the MR-JE series, this model delivers precise speed, torque, and position control with a high-resolution 131072 pulses/rev encoder feedback. It features advanced vibration suppression and adaptive filtering to ensure smooth operation even in challenging mechanical setups. The drive accepts 3-phase 200-240V AC input with a permissible voltage fluctuation of 170-264V AC, making it versatile for global installations. With a rated output current of 11A and a main circuit input current of 14A, the MR-JE-300A is ideal for driving medium to large servo motors in packaging, material handling, and CNC machinery.

Parameter	Specification (MR-JE-300A)
Output Rated Voltage	3-phase 170 V AC
Rated Current [A]	11
Main Circuit Voltage/Frequency	3-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Main Circuit Rated Current [A]	14
Permissible Voltage Fluctuation	3-phase 170 V AC to 264 V AC
Permissible Frequency Fluctuation	±5% maximum
Interface Power Supply	24 V DC ± 10% (0.3 A required)
Control Method	Sine-wave PWM control / current control method
Tolerable Regenerative Power (Built-in Resistor) [W]	100
Dynamic Brake	Built-in
Communication Function	USB (MR Configurator2 compatible), RS-422/485 (1:n up to 32 axes)
Encoder Output Pulse	A/B/Z-phase pulse compatible
Analog Monitor	2 channels
Maximum Input Pulse Frequency	4 Mpulses/s (differential receiver), 200 kpulses/s (open-collector)
Positioning Feedback Pulse	Encoder resolution: 131072 pulses/rev
Command Pulse Multiplying Factor	Electronic gear A/B multiple, A: 1 to 16777215, B: 1 to 16777215, 1/10 < A/B < 4000
Positioning Complete Width Setting	0 pulse to ±65535 pulses (command pulse unit)
Error Excessive	±3 rotations
Torque Limit	Set by parameters or external analog input (0 V DC to +10 V DC / maximum torque)
Speed Control Mode / Range	Analog speed command 1:2000, internal speed command 1:5000
Analog Speed Command Input	0 V DC to ±10 V DC / rated speed (adjustable via Pr. PC12)
Speed Fluctuation Rate	±0.01% max (load fluctuation 0-100%); ±0.2% max (ambient temp. 25°C ±10°C, analog command only)
Analog Torque Command Input	0 V DC to ±8 V DC / maximum torque (input impedance: 10 kΩ to 12 kΩ)
Speed Limit (Torque Control Mode)	Set by parameters or external analog input (0 V DC to ±10 V DC / rated speed)
Positioning Mode	Point table method, program method
Servo Function	Advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive function, drive recorder, machine diagnosis, power monitoring
Protective Functions	Overcurrent, regenerative overvoltage, overload (electronic thermal), motor overheat, encoder error, regenerative error, undervoltage, instantaneous power failure, overspeed, error excessive
Compliance to Global Standards	Refer to catalog for conformity details
Structure (IP Rating)	Forced cooling, open (IP20)
3-Phase Power Supply Input	Possible
1-Phase Power Supply Input	Not possible
Ambient Temperature	Operation: 0°C to 55°C (non-freezing); Storage: -20°C to 65°C (non-freezing)
Ambient Humidity	Operation/Storage: 90% RH max (non-condensing)
Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Altitude	1000 m or less above sea level
Vibration Resistance	5.9 m/s² at 10 Hz to 55 Hz (X, Y, Z axes)
Mass [kg]	2.1
