| Specification |

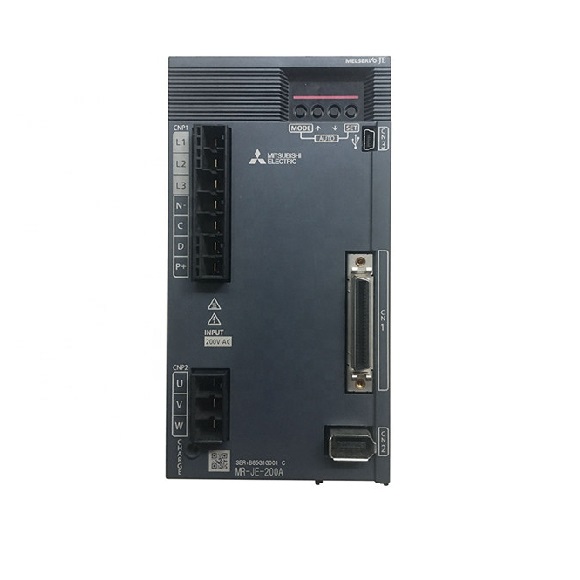

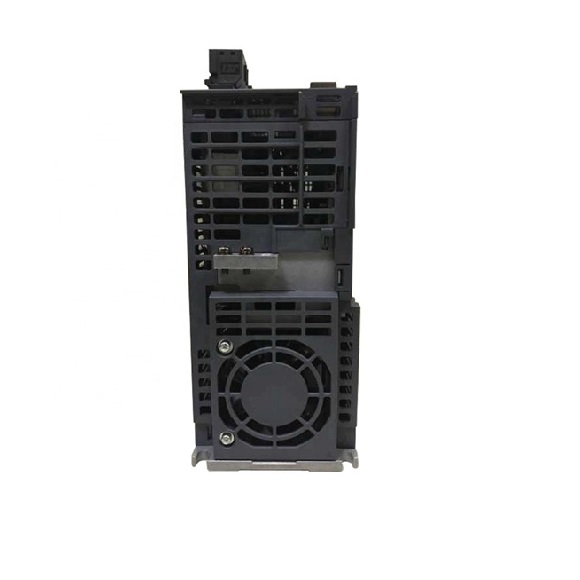

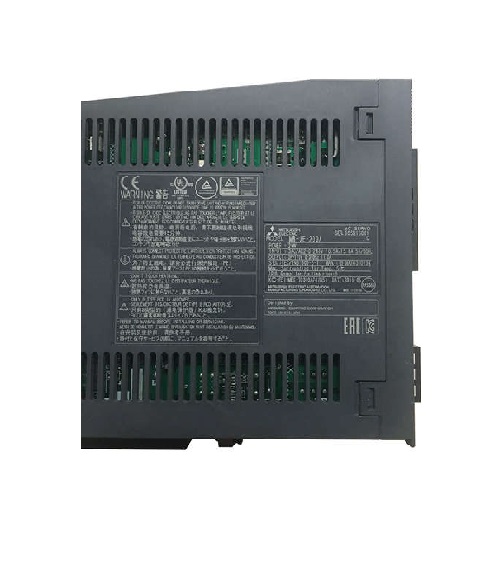

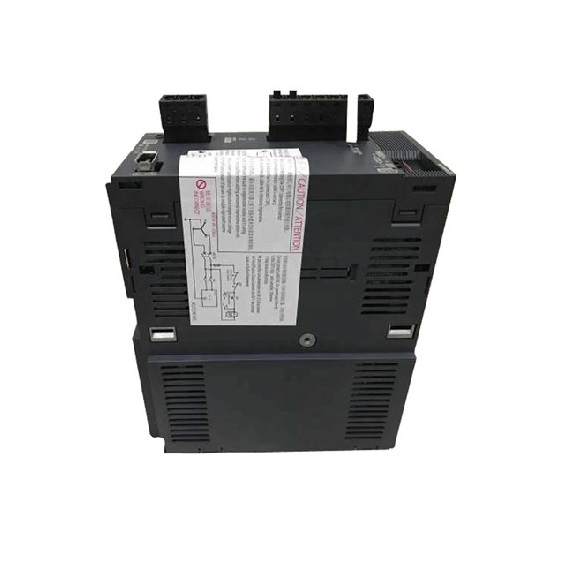

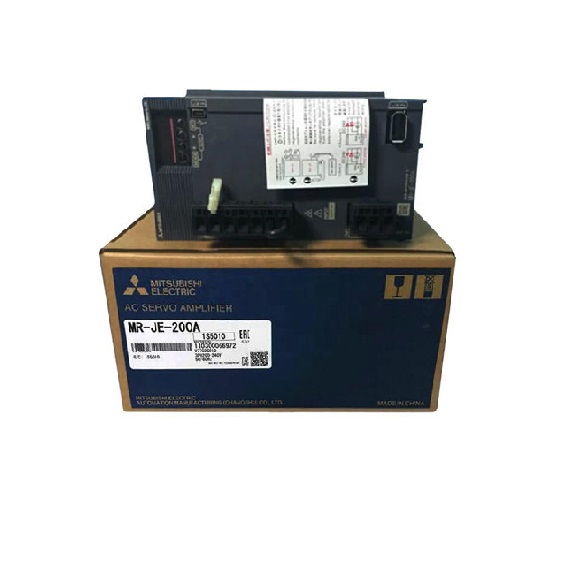

MR-JE-200A |
| Output Rated Voltage |
3-phase 170 V AC |
| Rated Current [A] |
11 |
| Voltage / Frequency |
3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz (Note 9) |
| Rated Input Current [A] |
10.5 |
| Permissible Voltage Fluctuation |
3-phase or 1-phase 170 V AC to 264 V AC (Note 9) |
| Permissible Frequency Fluctuation |
±5% maximum |
| Interface Power Supply |
24 V DC ± 10% (0.3 A required) |
| Control Method |
Sine-wave PWM control / current control method |
| Tolerable Regenerative Power (Built-in Resistor) [W] |
100 |
| Dynamic Brake |
Built-in (Note 4, 8) |
| Communication Function |
USB (MR Configurator2 compatible) + RS-422/RS-485 (1:n, up to 32 axes) |
| Encoder Output Pulse |
Compatible (A/B/Z-phase pulse) |
| Analog Monitor |
2 channels |
| Maximum Input Pulse Frequency |
4 Mpulses/s (differential receiver), 200 kpulses/s (open-collector) |
| Positioning Feedback Pulse |
Encoder resolution: 131072 pulses/rev |
| Command Pulse Multiplying Factor |
Electronic gear A/B multiple, A: 1 to 16777215, B: 1 to 16777215, 1/10 < A/B < 4000 |
| Positioning Complete Width Setting |
0 pulse to ±65535 pulses (command pulse unit) |
| Error Excessive |
±3 rotations |
| Torque Limit |
Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque) |
| Speed Control Mode |
Analog speed command 1:2000, internal speed command 1:5000 |
| Speed Control Range |
Analog speed command 1:2000, internal speed command 1:5000 |
| Analog Speed Command Input |
0 V DC to ±10 V DC/rated speed (adjustable via Pr. PC12) |
| Speed Fluctuation Rate |
±0.01% max (load 0-100%), 0% (power ±10%); ±0.2% max (ambient temp 25°C±10°C, analog command only) |
| Torque Limit (Speed Mode) |
Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque) |
| Analog Torque Command Input |
0 V DC to ±8 V DC/maximum torque (input impedance: 10 kΩ to 12 kΩ) |
| Speed Limit |
Set by parameters or external analog input (0 V DC to ±10 V DC/rated speed) |
| Positioning Mode |
Point table method, program method |
| Servo Function |
Advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive function, drive recorder, machine diagnosis, power monitoring |
| Protective Functions |
Overcurrent, regenerative overvoltage, overload (electronic thermal), motor overheat, encoder error, regenerative error, undervoltage, instantaneous power failure, overspeed, error excessive |
| Compliance to Global Standards |
Refer to catalog for conformity details |
| Structure (IP Rating) |
Forced cooling, open (IP20) |
| 3-Phase Power Supply Input |
Possible |
| 1-Phase Power Supply Input |
Not possible |
| Ambient Temperature |
Operation: 0°C to 55°C (non-freezing); Storage: -20°C to 65°C (non-freezing) |
| Ambient Humidity |
Operation/Storage: 90% RH max (non-condensing) |
| Ambience |
Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Altitude |
1000 m or less above sea level |
| Vibration Resistance |
5.9 m/s² at 10 Hz to 55 Hz (X, Y, Z axes) |
| Mass [kg] |
2.1 |
