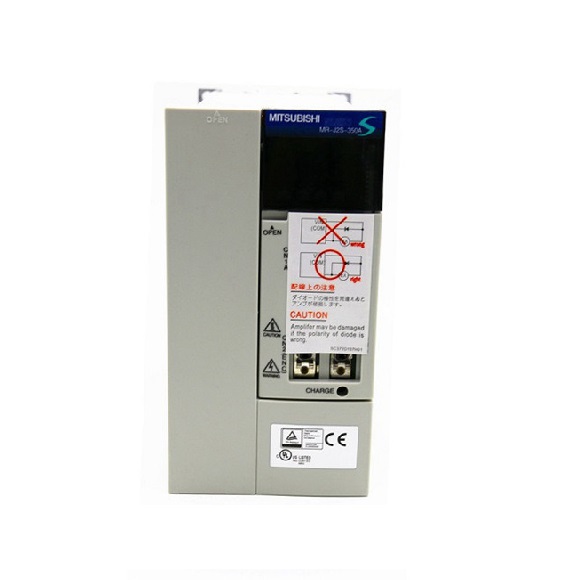

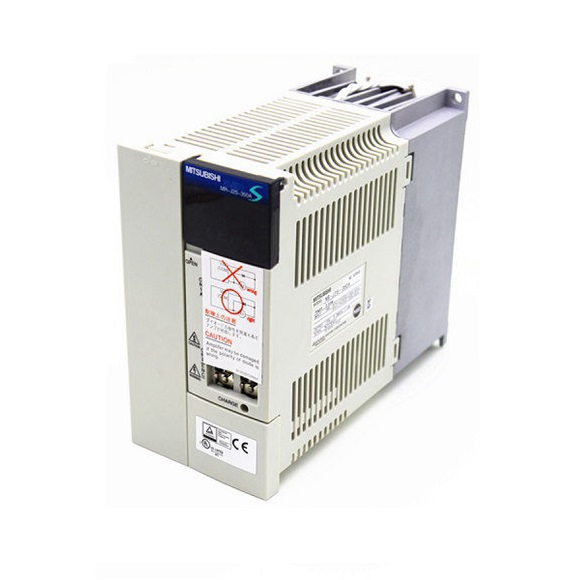

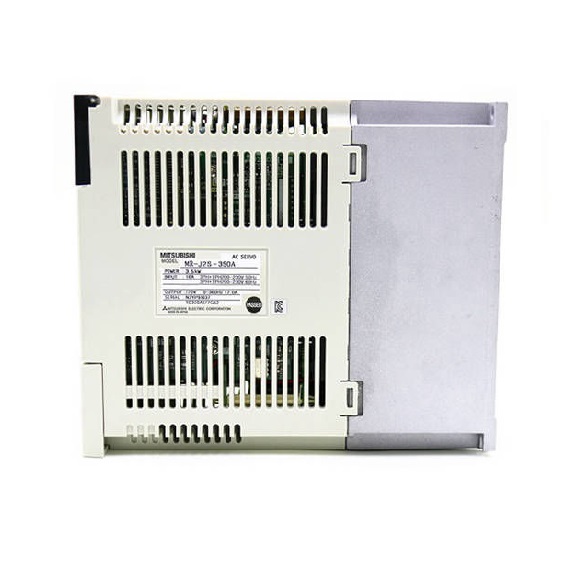

Mitsubishi MR-J2S Servo Drive 3.5kW MR-J2S-350A

Series#: Mitsubishi

Product Details

Model: MITSUBISHI MR-J2S-350A Servo Drive, 3.5kW rated output for high-performance motion control.
Advanced sine-wave PWM control and current control system for ultra-smooth motor operation.
Built-in dynamic brake for models up to 350B, ensuring safe and rapid deceleration.
Wide input voltage range: 3-phase 200 to 230VAC, with robust protection features including overcurrent, overvoltage, and overload shutdown.
High-speed command input up to 10Mpps for precise positioning in demanding applications.
Rugged IP00 enclosure with fan cooling for reliable performance in industrial environments.

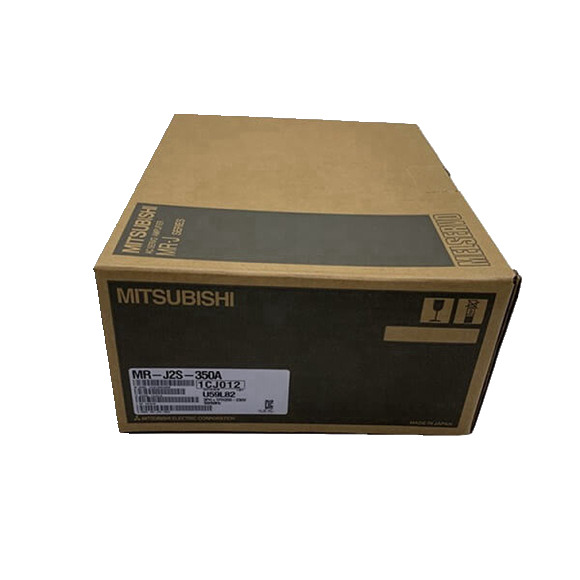

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The MITSUBISHI MR-J2S-350A is a 3.5kW servo drive from the renowned MR-J2S series, designed to deliver exceptional precision and reliability in industrial automation. This model features a sine-wave PWM control system with current control, providing smooth torque and speed regulation across a wide range of applications. With a maximum command input frequency of 10Mpps, the MR-J2S-350A excels in high-speed positioning tasks, making it ideal for CNC machinery, robotics, and packaging lines. Its main circuit accepts 3-phase 200 to 230VAC power, while the control circuit operates on 1-phase 200 to 230VAC, ensuring compatibility with standard industrial supplies. The drive includes comprehensive safety protections such as overcurrent, regeneration overvoltage, and encoder fault detection, plus a built-in dynamic brake for models in this power class. Operating within 0 to 55°C and up to 90% RH, the unit features fan cooling and an open IP00 structure, weighing approximately 2.0 kg (4.4 lb).

Parameter	Specification (MR-J2S-350A)
Control System	Sine-wave PWM control / Current control system
Dynamic Brake	Built-in (Note 3)
Safety Features	Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection
Maximum Command Input (Position Control)	Approximately 10Mpps
Main Circuit Power Supply	3-phase 200 to 230VAC 50/60Hz (Note 2)
Main Circuit Permissible Voltage Fluctuation	3-phase 170 to 253VAC
Main Circuit Permissible Frequency Fluctuation	±5% maximum
Control Circuit Power Supply	1-phase 200 to 230VAC 50/60Hz
Control Circuit Permissible Voltage Fluctuation	1-phase 170 to 253VAC
Control Circuit Permissible Frequency Fluctuation	±5% maximum
Power Consumption (Control Circuit)	50 W
Structure	Fan cooling, open (IP00)
Ambient Temperature	0 to 55°C (32 to 131°F) (non freezing), storage: –20 to 65°C (–4 to 149°F) (non freezing)
Ambient Humidity	90% RH maximum (non condensing), storage: 90% RH maximum (non condensing)
Atmosphere	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Elevation	1000m (3280ft) or less above sea level
Vibration	5.9 m/s² maximum
Mass	2.0 kg (4.4 lb)
