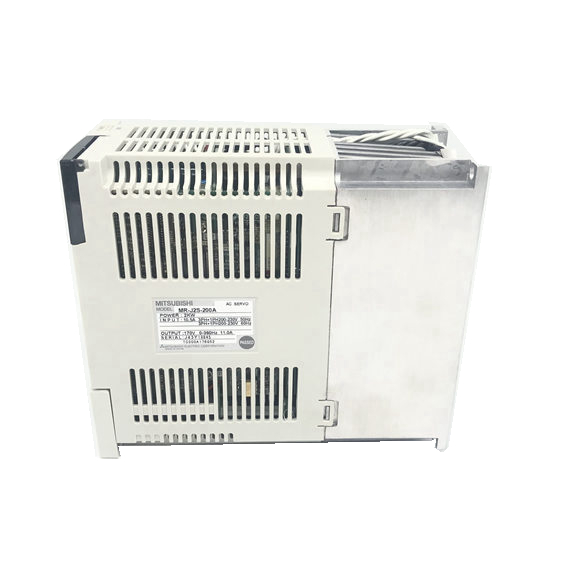

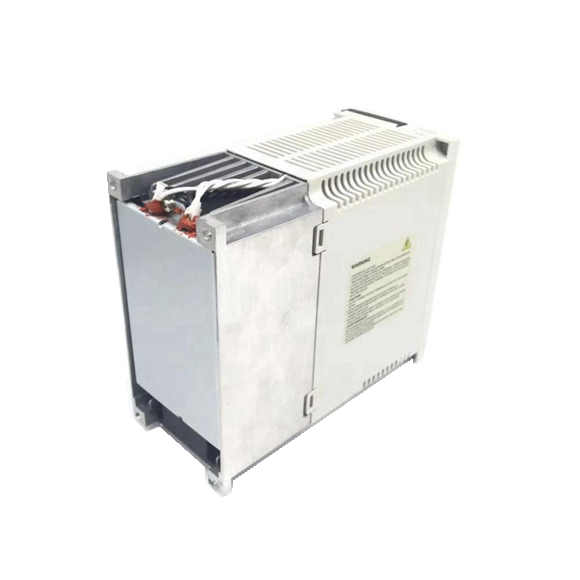

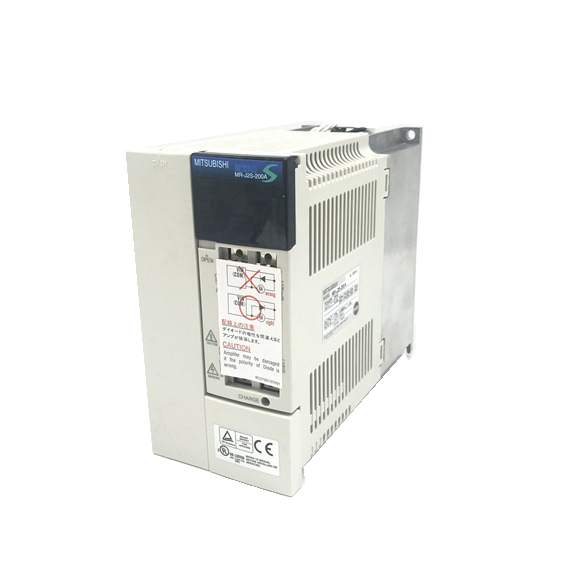

The Mitsubishi MR-J2S-200A is a state-of-the-art 2kW servo drive engineered for high-precision automation tasks. As part of the renowned MR-J2S series, this amplifier delivers exceptional performance in speed, torque, and position control loops. Its advanced sine-wave PWM control ensures minimal torque ripple and superior efficiency, making it ideal for CNC machinery, robotic arms, packaging lines, and other demanding applications. The drive is factory-tested and shipped with full compliance to international standards, ensuring seamless integration into existing Mitsubishi systems.
| Parameter |
Specification (MR-J2S-200A) |
| Rated Output Power |
2.0 kW |
| Control Circuit Power Supply |
1-phase 200-230 VAC, 50/60 Hz |
| Main Circuit Power Supply |
3-phase 200-230 VAC, 50/60 Hz (or 1-phase 230 VAC for selected models) |
| Permissible Voltage Fluctuation (Control) |
170-253 VAC |
| Permissible Voltage Fluctuation (Main) |
170-253 VAC (3-phase) |
| Permissible Frequency Fluctuation |
±5% max. |
| Power Consumption (Control Circuit) |
50 W |
| Control System |
Sine-wave PWM control / current control system |
| Dynamic Brake |
Built-in (for models up to 700B; external option for higher ratings) |
| Safety Features |
Overcurrent, regeneration overvoltage, overload (electronic thermal), motor overheat, encoder fault, undervoltage, overspeed, excess error |
| Maximum Command Input (Position Control) |
Approximately 10 Mpps |
| Structure |
Fan cooling, open (IP00) |
| Ambient Temperature |
0 to 55°C (operating); -20 to 65°C (storage) |
| Ambient Humidity |
90% RH max. (non-condensing) |
| Atmosphere |
Indoors, no direct sunlight; free from corrosive gas, inflammable gas, oil mist, dust |
| Elevation |
1000 m or less above sea level |
| Vibration Resistance |
5.9 m/s² max. |
| Mass (Approx.) |
2.0 kg (4.4 lb) |
