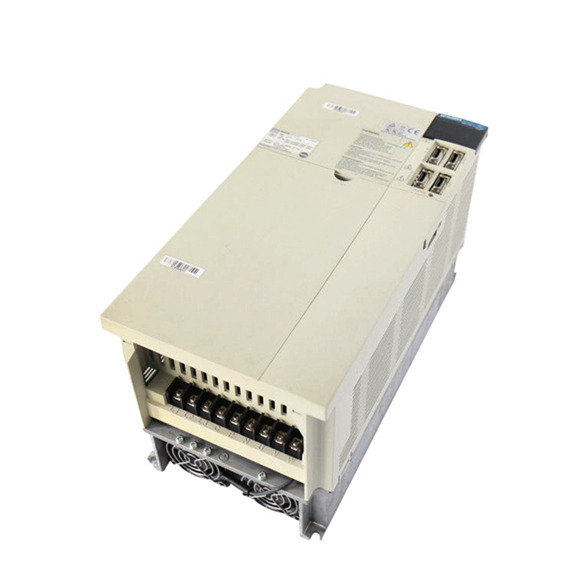

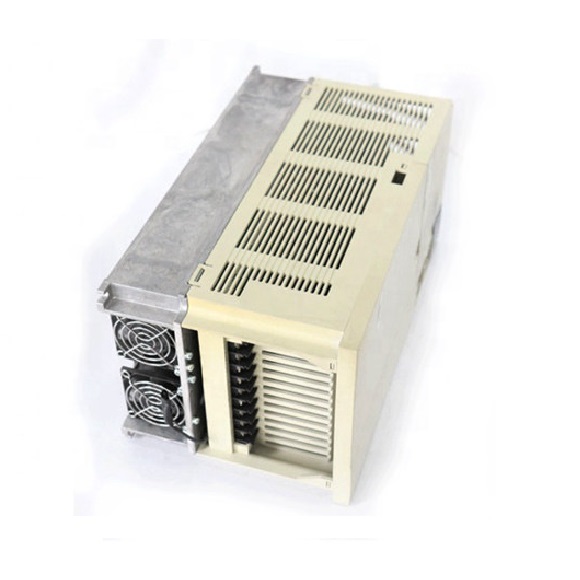

Mitsubishi MR-J2S Servo Drive 7.5kW MR-J2S-700A

Series#: Mitsubishi

Product Details

High-performance Mitsubishi SERVO DRIVE MR-J2S-700A, rated at 7.5 kW for demanding servo applications.
Advanced Sine-wave PWM control with current control system for precise torque and speed regulation.
Built-in dynamic brake for safe and rapid deceleration in emergency stops (MR-J2S-700A model).
Comprehensive safety features: overcurrent, overload, overvoltage, encoder fault, and overspeed protection.
Supports maximum command input pulse rate of approximately 10 Mpps for high-speed positioning tasks.
Fan-cooled, open-type (IP00) structure designed for industrial environments with ambient temperature up to 55°C.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi SERVO DRIVE MR-J2S-700A is a robust 7.5 kW servo amplifier engineered for precision motion control in demanding industrial automation systems. As part of the renowned MR-J2S series, this drive delivers exceptional performance with its sine-wave PWM control and current control system, ensuring smooth and accurate motor operation. The MR-J2S-700A is designed to handle high-speed, high-torque applications, making it ideal for machine tools, packaging equipment, and robotic systems. With built-in dynamic braking and a comprehensive suite of protective features, it guarantees operational safety and equipment longevity. This unit is a direct replacement for legacy systems and offers seamless integration with Mitsubishi servo motors.

Parameter	Specification (MR-J2S-700A)
Model	MR-J2S-700A
Rated Output Power	7.5 kW
Control System	Sine-wave PWM control / Current control system
Control Circuit Power Supply	1-phase 200 to 230 VAC, 50/60 Hz
Control Circuit Voltage Fluctuation	170 to 253 VAC
Control Circuit Frequency Fluctuation	±5% max.
Control Circuit Power Consumption	50 W
Main Circuit Power Supply	3-phase 200 to 230 VAC, 50/60 Hz
Main Circuit Voltage Fluctuation	170 to 253 VAC
Main Circuit Frequency Fluctuation	±5% max.
Dynamic Brake	Built-in
Safety Features	Overcurrent, regeneration overvoltage, overload (electronic thermal), motor overheat, encoder fault, undervoltage, overspeed, excess error protection
Max. Command Input Pulse (Position Control)	Approx. 10 Mpps
Structure / Cooling	Fan cooling, open type (IP00)
Ambient Temperature	0 to 55°C (operating); -20 to 65°C (storage)
Ambient Humidity	90% RH max. (non-condensing)
Atmosphere	Indoors, no corrosive gas, oil mist, or dust
Elevation	1000 m or less above sea level
Vibration Resistance	5.9 m/s² max.
Mass	7.2 kg (15.9 lb)
