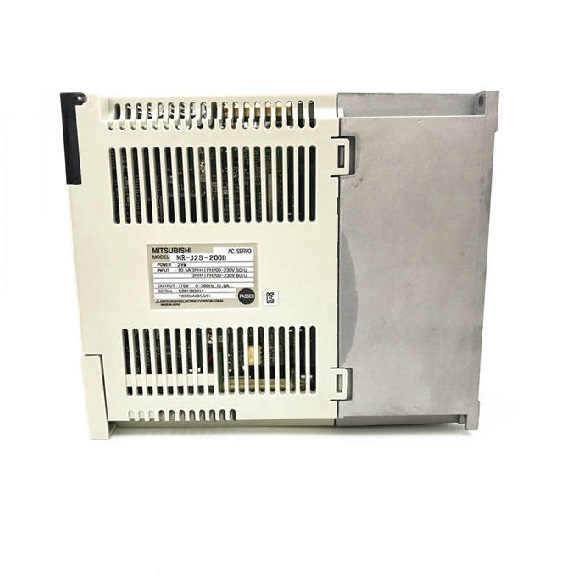

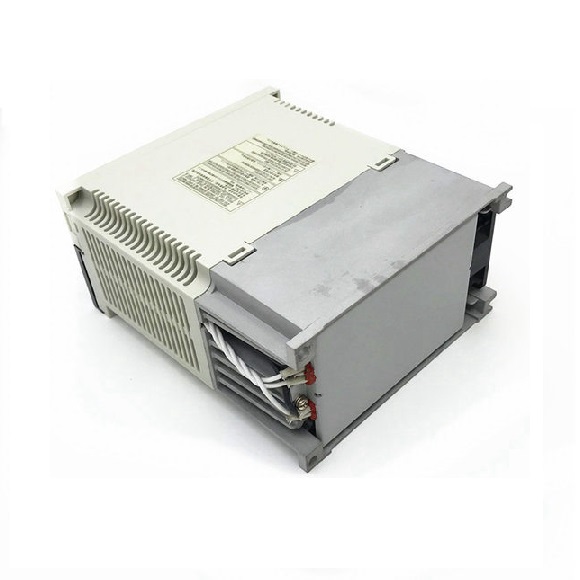

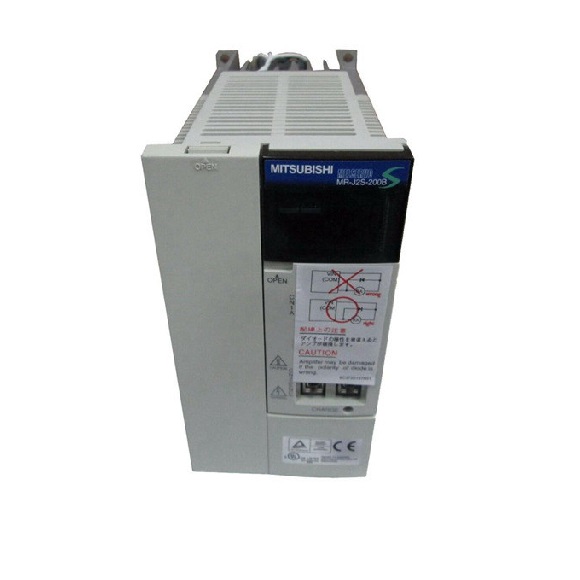

Mitsubishi MR-J2S-200B Servo Drive

Series#: Mitsubishi

Product Details

MITSUBISHI SERVO DRIVE MR-J2S-200B – A 2kW high-performance servo amplifier designed for precision motion control in industrial automation.
Advanced Sine-wave PWM control system delivers smooth, low-torque ripple motor operation for demanding applications.
Built-in dynamic brake (for MR-J2S-200B) ensures rapid and safe motor deceleration during emergency stops.
Supports maximum command input at position control up to approximately 10 Mpps for ultra-high-speed positioning.
Fan-cooled, open IP00 structure ensures reliable thermal management in harsh industrial environments up to 55°C ambient.
Comprehensive safety features include overcurrent, overload, encoder fault, and undervoltage protection for system integrity.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi MR-J2S-200B is a robust 2kW servo drive from the renowned MR-J2S series, engineered to deliver exceptional torque and speed control for AC servo motors in factory automation, robotics, and CNC machinery. This model operates on a 3-phase 200 to 230VAC main circuit with a sine-wave PWM current control system, ensuring precise and efficient motor regulation. Its built-in dynamic brake provides reliable emergency stopping, while the fan-cooled design maintains optimal performance even at full load. The MR-J2S-200B is ideal for applications requiring high-speed positioning, such as pick-and-place systems and packaging equipment, offering a maximum command input frequency of approximately 10 Mpps for rapid response. With a compact mass of 2.0 kg (4.4 lb) and an ambient temperature range of 0 to 55°C, this drive is built for durability and ease of integration into existing control systems.

Specification	MR-J2S-200B Value
Model	MR-J2S-200B
Rated Output Power	2 kW
Control System	Sine-wave PWM control / Current control system
Dynamic Brake	Built-in
Main Circuit Power Supply	3-phase 200 to 230 VAC, 50/60 Hz
Permissible Voltage Fluctuation (Main)	3-phase 170 to 253 VAC
Permissible Frequency Fluctuation	±5% maximum
Control Circuit Power Supply	1-phase 200 to 230 VAC, 50/60 Hz
Permissible Voltage Fluctuation (Control)	1-phase 170 to 253 VAC
Power Consumption	50 W
Maximum Command Input at Position Control	Approximately 10 Mpps
Structure	Fan cooling, open (IP00)
Ambient Temperature	0 to 55°C (32 to 131°F) (non-freezing), Storage: -20 to 65°C (-4 to 149°F)
Ambient Humidity	90% RH maximum (non-condensing), Storage: 90% RH maximum
Atmosphere	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Elevation	1000 m (3280 ft) or less above sea level
Vibration	5.9 m/s² maximum
Mass	2.0 kg (4.4 lb)
Safety Features	Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection
