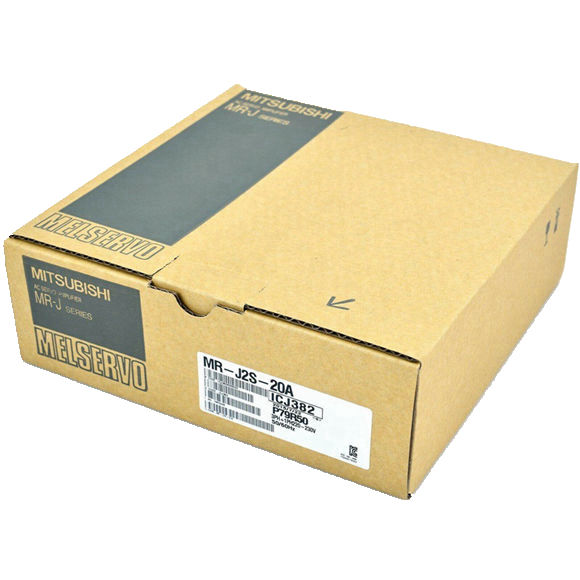

The Mitsubishi MR-J2S-20A is a versatile servo amplifier from the renowned MR-J2S series, engineered to deliver reliable and precise positioning for a wide range of industrial applications. This 200W model is a direct replacement for legacy units and integrates seamlessly with Mitsubishi servo motors, offering high-speed communication and robust protection features. Whether you are upgrading a CNC machine, packaging line, or robotic arm, the MR-J2S-20A provides the performance and durability you need.
| Parameter |
MR-J2S-20A (200W Model) |
| Control Circuit Power Supply |
1-phase 200 to 230VAC, 50/60Hz |
| Permissible Voltage Fluctuation (Control) |
1-phase 170 to 253VAC |
| Permissible Frequency Fluctuation |
±5% maximum |
| Power Consumption |
50W |
| Main Circuit Power Supply |
1-phase 230VAC 50/60Hz or 3-phase 200 to 230VAC 50/60Hz (Note 2) |
| Permissible Voltage Fluctuation (Main) |
3-phase 170 to 253VAC; 1-phase 207 to 253VAC |
| Control System |
Sine-wave PWM control / current control system |
| Dynamic Brake |
Built-in (Note 3) |
| Safety Features |
Overcurrent, regeneration overvoltage, overload (electronic thermal), motor overheat, encoder fault, regeneration fault, undervoltage/sudden power outage, overspeed, excess error protection |
| Maximum Command Input (Position Control) |
Approximately 10Mpps |
| Structure |
Self-cooling, open (IP00) |
| Ambient Temperature |
0 to 55°C (32 to 131°F) operating; –20 to 65°C (–4 to 149°F) storage (non-freezing) |
| Ambient Humidity |
90% RH max (non-condensing) operating and storage |
| Atmosphere |
Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Elevation |
1000m (3280ft) or less above sea level |
| Vibration |
5.9m/s² maximum |
| Mass |
0.7 kg (1.5 lb) |
