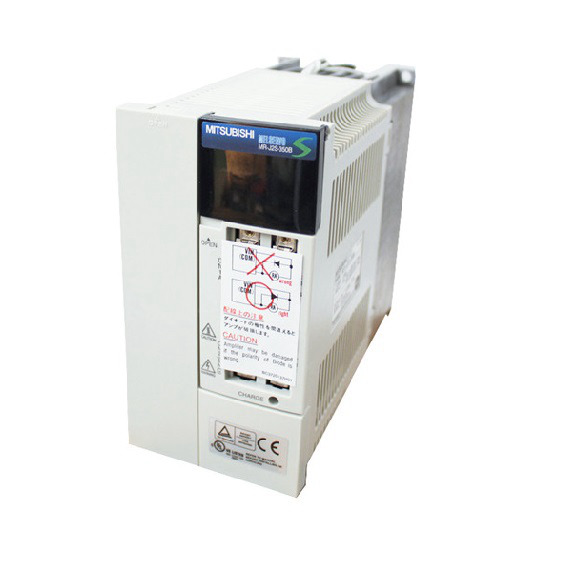

Mitsubishi MR-J2S Servo Drive 3.5kW MR-J2S-350B

Series#: Mitsubishi

Product Details

Mitsubishi MR-J2S-350B 3.5kW AC Servo Drive, engineered for high-precision industrial automation and motion control.
Advanced sine-wave PWM control with current control system ensures smooth torque output and minimal electrical noise.
Built-in dynamic brake on the 350B model (and all B-series units) for rapid, safe deceleration during emergency stops.
Comprehensive safety suite: overcurrent, overvoltage, overload, encoder fault, and overspeed protection for maximum uptime.
Fan-cooled, open (IP00) structure allows reliable operation in demanding factory environments up to 55°C ambient.
Supports high-speed position command input up to approximately 10 Mpps, ideal for high-throughput servo applications.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi MR-J2S-350B is a 3.5 kW AC servo drive from the renowned MR-J2S series, designed to deliver exceptional torque and speed control for a wide range of motion control tasks. This model, the MR-J2S-350B, operates on a three-phase 200–230 VAC main circuit and a single-phase 200–230 VAC control circuit, both at 50/60 Hz. It features a fan-cooled, open (IP00) enclosure that ensures reliable heat dissipation in continuous-duty applications. With a maximum command input frequency of 10 Mpps, it handles high-resolution position loops with ease. The drive includes a built-in dynamic brake for the 350B model, providing rapid stopping without external hardware. Its robust protection mechanisms guard against overcurrent, regeneration overvoltage, and servo motor overheating, making it a trusted choice for CNC machines, packaging equipment, and robotic systems.

Parameter	MR-J2S-350B (3.5 kW)
Control Circuit Power Supply	1-phase 200–230 VAC, 50/60 Hz
Control Circuit Voltage Fluctuation	170–253 VAC
Control Circuit Frequency Fluctuation	±5% max
Control Circuit Power Consumption	50 W
Main Circuit Power Supply	3-phase 200–230 VAC, 50/60 Hz
Main Circuit Voltage Fluctuation	170–253 VAC
Main Circuit Frequency Fluctuation	±5% max
Control System	Sine-wave PWM control / Current control system
Dynamic Brake	Built-in
Protection Features	Overcurrent, regeneration overvoltage, overload (electronic thermal), servo motor overheat, encoder fault, regeneration fault, undervoltage/sudden power outage, overspeed, excess error
Maximum Command Input (Position Control)	Approx. 10 Mpps
Cooling Method / Structure	Fan cooling / Open (IP00)
Ambient Temperature	0 to 55°C (32 to 131°F), storage: –20 to 65°C (–4 to 149°F)
Ambient Humidity	90% RH max (non-condensing), storage: 90% RH max
Atmosphere	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist, or dust
Elevation	1000 m (3280 ft) or less above sea level
Vibration Resistance	5.9 m/s² max
Mass	2.0 kg (4.4 lb)
