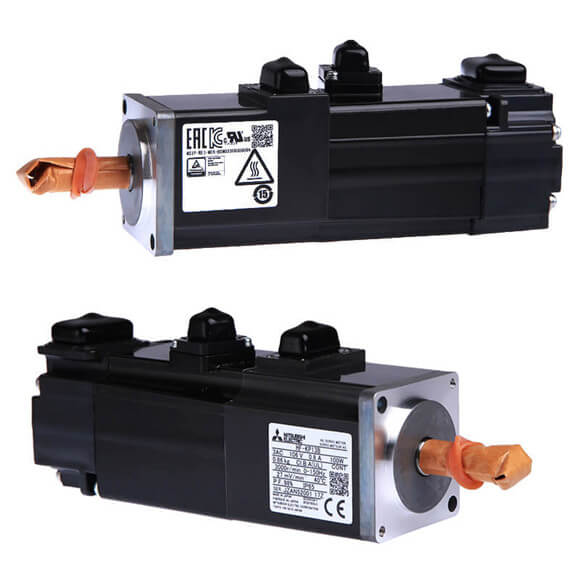

The MITSUBISHI MELSERVO-J3 SERIES SERVOMOTOR BREAK 100W HF-KP13B is a precision-engineered AC servo motor designed for demanding motion control applications. As part of the renowned J3 series, this 100-watt model integrates a robust electromagnetic brake to maintain position during power loss or emergency stops, making it ideal for vertical axes, robotic arms, and packaging machinery. Its high-resolution 17-bit encoder delivers exceptional accuracy, while the compact frame size (60 mm square) allows for easy installation in tight spaces. The motor operates seamlessly with MELSERVO-J3 amplifiers, providing a complete, reliable solution for factory automation.
| Parameter |
Specification |
| Model |
HF-KP13B |
| Series |
MELSERVO-J3 |
| Rated Output Power |
100 W (0.1 kW) |
| Rated Torque |
0.32 N·m |
| Maximum Torque |
0.95 N·m |
| Rated Speed |
3000 rpm |
| Maximum Speed |
6000 rpm |
| Encoder Type |
17-bit absolute encoder (resolution: 131072 pulses/rev) |
| Brake Type |
Electromagnetic spring-set brake (24 VDC supply, holding torque: 0.32 N·m) |
| Power Supply |
AC 200 V (3-phase or single-phase, depending on amplifier) |
| Frame Size |
60 mm square (flange type) |
| Overall Length (without shaft) |
Approx. 100 mm (including brake) |
| Shaft Diameter |
14 mm (keyed shaft with keyway) |
| Weight |
Approx. 1.1 kg (with brake) |
| Protection Rating |
IP65 (excluding shaft end and connector) |
| Insulation Class |
Class B (130°C) |
| Ambient Temperature |
0 to 40°C (operation), -20 to 65°C (storage) |
| Vibration Resistance |
5.9 m/s² (0.6 G) at 10 to 55 Hz |
| Applicable Amplifier |
MELSERVO-J3 series (e.g., MR-J3-10A, MR-J3-10B) |
