Mitsubishi HF-KP23B Servomotor With Brake 200W

Series#: Mitsubishi

Product Details

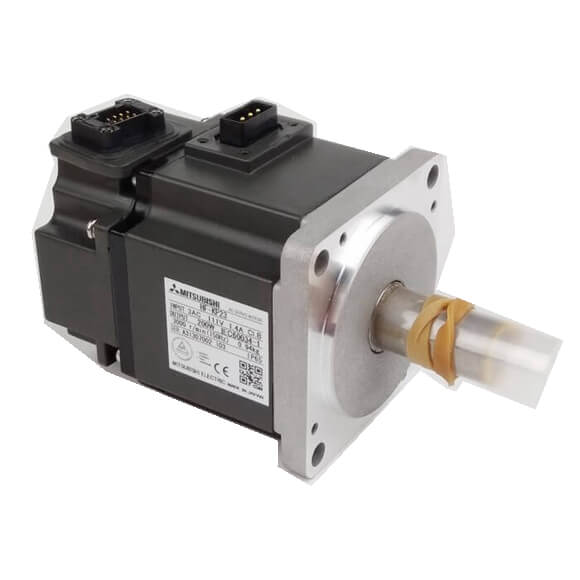

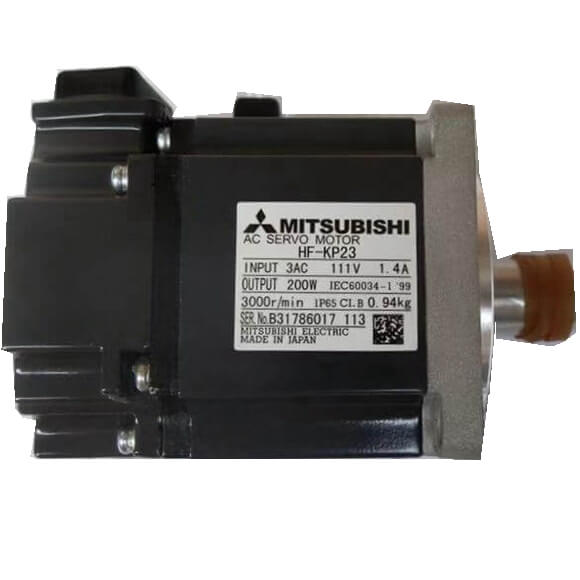

MITSUBISHI MELSERVO-J3 SERVOMOTOR WITH BRAKE 200W HF-KP23B – high-performance low-inertia servo motor for precision motion control.
Rated output of 200W with a rated torque of 0.64 Nm and maximum torque up to 2.23 Nm, ideal for small-capacity applications.
Equipped with a built-in electromagnetic brake for secure holding and safety in vertical or emergency-stop scenarios.
Features an 18-bit absolute encoder (262,144 p/rev resolution) for ultra-smooth speed and position feedback.
Totally enclosed non-ventilated design with IP65 rating, ensuring reliable operation in harsh industrial environments.
Compatible with MR-J3-20A/B/T series servo amplifiers for seamless integration into existing MELSERVO-J3 systems.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The MITSUBISHI MELSERVO-J3 SERVOMOTOR WITH BRAKE 200W HF-KP23B is a key component in the HF-KP series, designed for low-inertia, small-capacity servo applications that demand high precision and reliability. This model integrates a robust electromagnetic brake, making it an excellent choice for applications requiring safe axis holding, such as vertical lifts, pick-and-place machines, and packaging equipment. With its 18-bit encoder and compatibility with MR-J3 amplifiers, the HF-KP23B delivers exceptional dynamic response and positioning accuracy, ensuring minimal downtime in automated production lines. Below are the detailed technical specifications for this motor and its related models.

Parameter	HF-KP053(B)	HF-KP13(B)	HF-KP23(B)	HF-KP43(B)	HF-KP73(B)
Compatible Servo Amplifier Model	MR-J3-10A(1)/B(1)(-RJ006)/T(1)	MR-J3-10A(1)/B(1)(-RJ006)/T(1)	MR-J3-20A(1)/B(1)(-RJ006)/T(1)	MR-J3-40A(1)/B(1)(-RJ006)/T(1)	MR-J3-70A/B(-RJ006)/T
Power Supply Capacity (kVA)	0.3	0.3	0.5	0.9	1.3
Rated Output (W)	50	100	200	400	750
Rated Torque (N·m)	0.16	0.32	0.64	1.3	2.4
Maximum Torque (Increased) (N·m)	0.56	1.11	2.23	4.46	8.36
Maximum Torque (N·m)	0.48	0.95	1.9	3.8	7.2
Rated Speed (r/min)	3000
Maximum Speed (r/min)	6000
Permissible Instantaneous Speed (r/min)	6900
Power Rate at Continuous Rated Torque (kW/s)	4.87	11.5	16.9	38.6	39.9
Rated Current (A)	0.9	0.8	1.4	2.7	5.2
Maximum Current (Increased) (A)	3.1	2.8	4.9	9.5	18.2
Maximum Current (A)	2.7	2.4	4.2	8.1	15.6
Regenerative Braking Frequency (times/min)	Note 3	Note 3	448	249	140
Mass – Standard (kg)	0.35	0.56	0.94	1.5	2.9
Mass – With Electromagnetic Brake (kg)	0.65	0.86	1.6	2.1	3.9
Recommended Load to Motor Inertia Moment Ratio	15 times maximum	24 times maximum	22 times maximum	15 times maximum
Speed/Position Detector	18-bit encoder (resolution: 262144 p/rev)
Attachments	—	— (Motors with an oil seal are available)
Insulation Class	Class B
Structure	Totally enclosed non ventilated (IP65)
