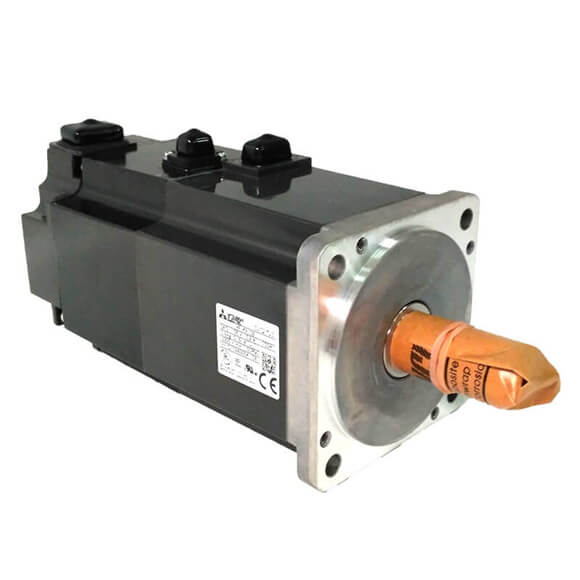

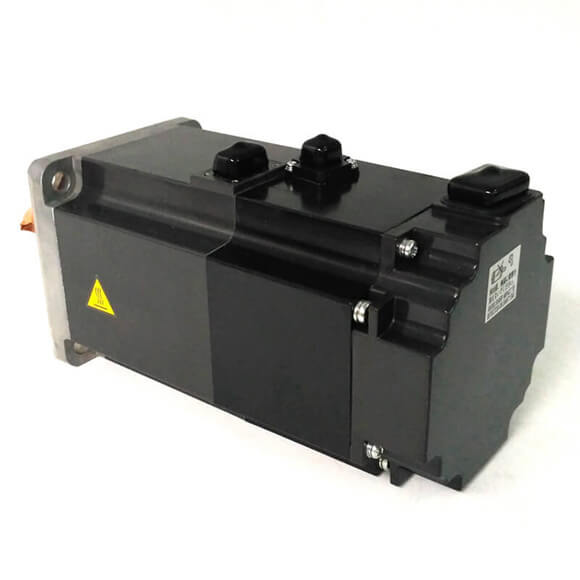

Mitsubishi HF-SP52 Servomotor 500W

Series#: Mitsubishi

Product Details

High-performance MITSUBISHI MELSERVO-J3 SERVOMOTOR 500W HF-SP52, engineered for precision motion control in demanding automation applications.
Equipped with a high-resolution 18-bit encoder (262,144 p/rev) for exceptional positioning accuracy and smooth operation.
Rated torque of 2.4 Nm and maximum torque of 8.36 Nm, delivering robust performance for medium-capacity servo systems.
Rated speed of 3000 r/min and maximum speed of 6000 r/min, ensuring rapid response and high throughput.
Totally enclosed non-ventilated IP65 structure, providing reliable protection in harsh industrial environments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The MITSUBISHI MELSERVO-J3 SERVOMOTOR 500W HF-SP52 is a cornerstone of the MELSERVO-J3 series, designed to deliver superior torque density and dynamic response for advanced servo applications. This low-inertia motor integrates seamlessly with MR-J3 servo amplifiers, offering a compact solution for high-speed positioning and constant torque control. With an 18-bit encoder and a rugged IP65 enclosure, the HF-SP52 ensures reliable, maintenance-free operation in demanding industrial settings, from CNC machinery to packaging lines. Below are the detailed specifications for this model and its compatible series counterparts.

Parameter	HF-KP053(B) (50W)	HF-KP13(B) (100W)	HF-KP23(B) (200W)	HF-KP43(B) (400W)	HF-SP52 (500W)
Compatible Servo Amplifier	MR-J3-10A(1)/B(1)(-RJ006)/T(1)	MR-J3-20A(1)/B(1)(-RJ006)/T(1)	MR-J3-40A(1)/B(1)(-RJ006)/T(1)	MR-J3-70A/B(-RJ006)/T
Power Supply Capacity (kVA)	0.3	0.3	0.5	0.9	1.3
Rated Output (W)	50	100	200	400	500
Rated Torque (N·m [oz·in])	0.16 (22.7)	0.32 (45.3)	0.64 (90.6)	1.3 (184)	2.4 (340)
Maximum Torque (Increased) (N·m [oz·in])	0.56 (79.3)	1.11 (157)	2.23 (316)	4.46 (632)	8.36 (1180)
Maximum Torque (N·m [oz·in])	0.48 (68.0)	0.95 (135)	1.9 (269)	3.8 (538)	7.2 (1020)
Rated Speed (r/min)	3000
Maximum Speed (r/min)	6000
Permissible Instantaneous Speed (r/min)	6900
Power Rate at Continuous Rated Torque (kW/s)	4.87	11.5	16.9	38.6	39.9
Rated Current (A)	0.9	0.8	1.4	2.7	5.2
Maximum Current (Increased) (A)	3.1	2.8	4.9	9.5	18.2
Maximum Current (A)	2.7	2.4	4.2	8.1	15.6
Regenerative Braking Frequency (times/min)	Note 3	Note 3	448	249	140
Standard Motor Inertia Moment (kg·m² [oz·in·s²])	0.052 (0.284)	0.088 (0.481)	0.24 (1.31)	0.42 (2.30)	1.43 (7.82)
With Electromagnetic Brake Inertia Moment (kg·m² [oz·in·s²])	0.054 (0.295)	0.090 (0.492)	0.31 (1.69)	0.50 (2.73)	1.63 (8.91)
Recommended Load to Motor Inertia Moment Ratio	15 times maximum	24 times maximum	22 times maximum	15 times maximum
Speed/Position Detector	18-bit encoder (resolution: 262144 p/rev)
Attachments	—	— (Motors with an oil seal are available)
Insulation Class	Class B
Structure	Totally enclosed non ventilated (IP rating: IP65)
Mass Standard (kg [lb])	0.35 (0.78)	0.56 (1.3)	0.94 (2.1)	1.5 (3.3)	2.9 (6.4)
Mass With Electromagnetic Brake (kg [lb])	0.65 (1.5)	0.86 (1.9)	1.6 (3.6)	2.1 (4.7)	3.9 (8.6)
