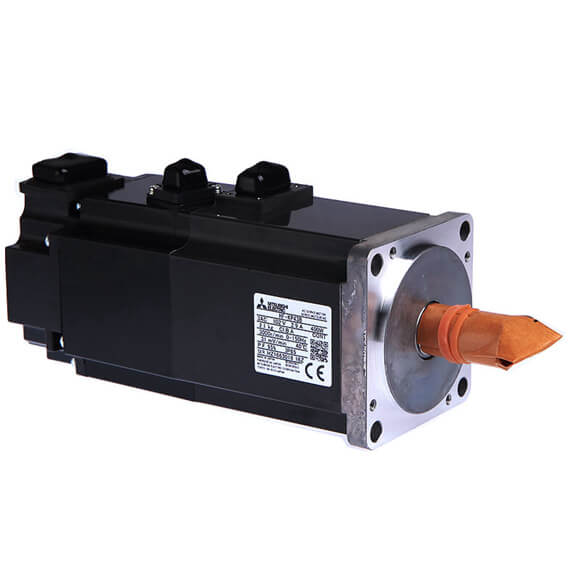

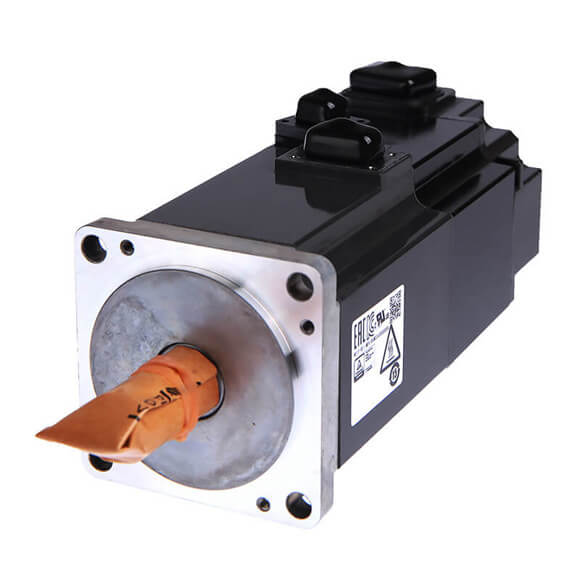

Mitsubishi HF-KP43B Servomotor With Brake 400W

Series#: Mitsubishi

Product Details

MITSUBISHI MELSERVO-J3 SERVOMOTOR WITH BRAKE 400W HF-KP43B – High-performance low-inertia servo motor for precision motion control.
Rated output of 400W with a rated torque of 1.3 Nm and maximum torque of 4.46 Nm, ideal for demanding applications.
Equipped with an integrated electromagnetic brake for safe holding in vertical or emergency-stop scenarios.
Features an 18-bit absolute encoder (262,144 p/rev) for exceptional positioning accuracy and smooth low-speed operation.
Totally enclosed non-ventilated design with IP65 protection rating, ensuring reliability in harsh industrial environments.
Compatible with MR-J3-40A/B/T servo amplifiers, offering flexible system integration and easy setup.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The MITSUBISHI MELSERVO-J3 SERVOMOTOR WITH BRAKE 400W HF-KP43B is a state-of-the-art AC servo motor from the HF-KP series, engineered for low inertia and small capacity applications. This model delivers 400W rated output with a rated torque of 1.3 N·m, and can achieve a maximum torque of 4.46 N·m for short-duration peak loads. It features an electromagnetic brake that provides secure holding torque, making it suitable for vertical axes and safety-critical installations. The motor is paired with an 18-bit encoder (262,144 pulses per revolution) for ultra-precise feedback, ensuring tight speed and position control. With a rated speed of 3000 r/min and a maximum speed of 6000 r/min, it excels in high-speed automation tasks. The HF-KP43B is IP65-rated (totally enclosed, non-ventilated) for dust and water resistance, and weighs 2.1 kg with the brake. It is designed to work seamlessly with MR-J3-40A/B/T servo amplifiers, offering robust performance in packaging, robotics, and machining applications.

Parameter	Specification (HF-KP43B)
Rated Output	400 W
Rated Torque	1.3 N·m (184 oz·in)
Maximum Torque (Increased)	4.46 N·m (632 oz·in)
Maximum Torque (Standard)	3.8 N·m (538 oz·in)
Rated Speed	3000 r/min
Maximum Speed	6000 r/min
Permissible Instantaneous Speed	6900 r/min
Power Rate at Continuous Rated Torque	38.6 kW/s
Rated Current	2.7 A
Maximum Current (Increased)	9.5 A
Maximum Current (Standard)	8.1 A
Regenerative Braking Frequency	249 times/min
With Electromagnetic Brake	Yes
Brake Holding Torque	0.50 N·m (2.73 oz·in)
Recommended Load to Motor Inertia Ratio	22 times maximum
Speed/Position Detector	18-bit encoder (262144 p/rev)
Insulation Class	Class B
Structure	Totally enclosed non-ventilated (IP65)
Mass (Standard)	1.5 kg (3.3 lb)
Mass (With Brake)	2.1 kg (4.7 lb)
Compatible Servo Amplifier	MR-J3-40A/B/T
Power Supply Capacity	0.9 kVA
