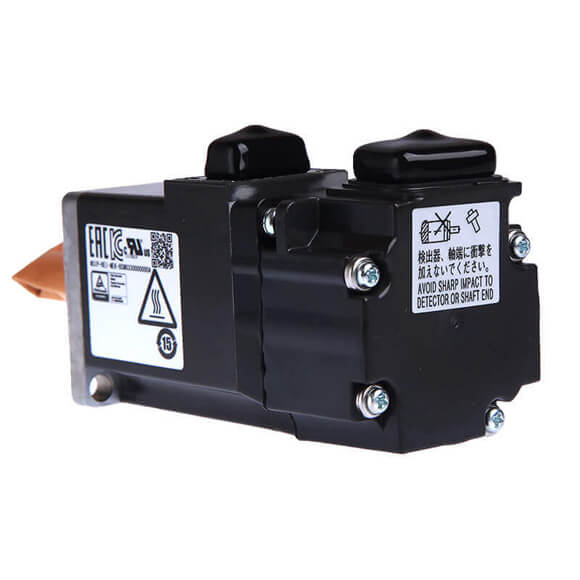

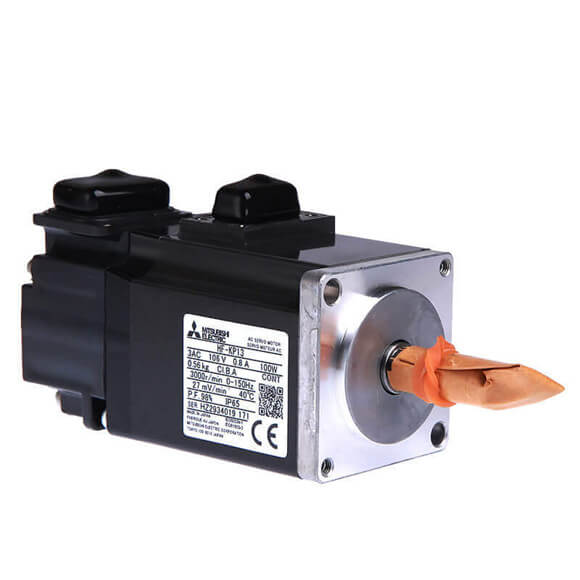

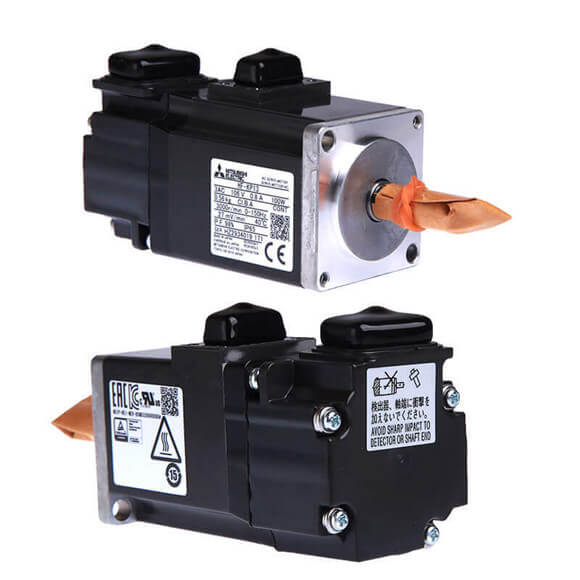

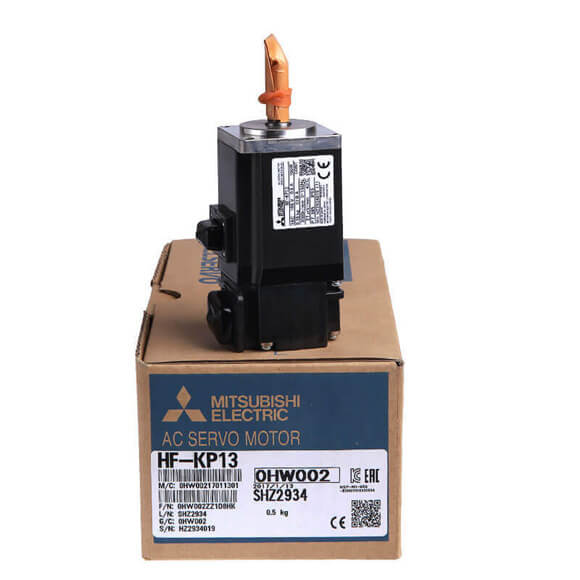

The MITSUBISHI MELSERVO-J3 SERVOMOTOR 100W HF-KP13 represents a benchmark in precision motion control for advanced automation systems. Engineered for applications requiring high dynamic response and compact footprint, this servo motor delivers exceptional torque density and smooth operation. The HF-KP13 integrates a high-resolution 17-bit absolute encoder, ensuring accurate positioning without the need for homing routines after power loss. Its low inertia rotor is optimized for fast start-stop cycles, making it a preferred choice for pick-and-place, packaging, and robotic end-effector drives. Backed by Mitsubishi's proven reliability, this unit is ideal for OEMs and system integrators seeking long-term performance in demanding production environments.
| Parameter |
Specification |
| Model Number |
HF-KP13 |
| Series |
MELSERVO-J3 |
| Rated Output Power |
100 W (0.1 kW) |
| Rated Torque |
0.32 N·m |
| Maximum Torque |
0.95 N·m |
| Rated Speed |
3000 rpm |
| Maximum Speed |
6000 rpm |
| Rotor Inertia |
0.042 × 10⁻⁴ kg·m² |
| Encoder Type |
17-bit absolute encoder (131,072 pulses/rev) |
| Power Supply |
AC 200–230 V, 50/60 Hz |
| Insulation Class |
Class B (130°C) |
| Protection Rating |
IP65 (excluding shaft end and connector) |
| Mounting Method |
Flange mounting (standard) |
| Shaft Type |
Straight shaft with key (no keyway on standard model) |
| Brake Option |
Not included (standard model; brake variant available as HF-KP13B) |
| Ambient Temperature |
0°C to +40°C (operating) |
| Ambient Humidity |
20% to 80% RH (non-condensing) |
| Vibration Resistance |
≤ 5.9 m/s² (0.6 G) |
| Weight |
Approx. 0.65 kg |
| Compatible Amplifier |
MR-J3-10A (or equivalent J3 series) |
| Warranty |
12 months from shipment date |
