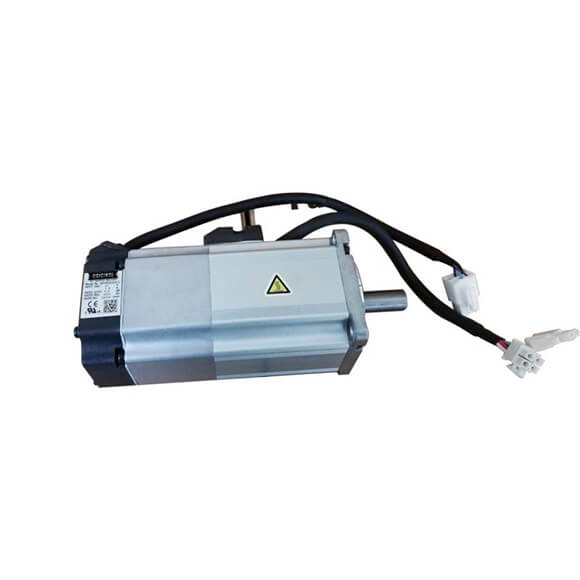

The PANASONIC SERVO MOTOR MINAS A4 400W MHMD042P1C is a robust AC servo motor engineered for demanding industrial automation tasks. Featuring a high-resolution 17-bit absolute encoder, this motor delivers exceptional positioning accuracy and smooth torque control across a wide speed range. Designed for seamless integration with Panasonic MINAS A4 servo drives, the MHMD042P1C excels in applications such as CNC machinery, textile equipment, and assembly lines where precise velocity and position regulation are critical. Its compact 80 mm flange design and 400W continuous power rating make it a versatile choice for space-constrained setups without compromising performance.
| Parameter |
Specification |
| Model |
PANASONIC MHMD042P1C |
| Series |
MINAS A4 |
| Power Rating |
400 W (0.4 kW) |
| Rated Torque |
1.27 Nm |
| Peak Torque |
3.82 Nm |
| Rated Speed |
3000 rpm |
| Max Speed |
5000 rpm |
| Encoder Type |
17-bit Absolute Encoder (131,072 ppr) |
| Feedback Resolution |
131,072 pulses per revolution |
| Flange Size |
80 mm square (with pilot diameter 60 mm) |
| Shaft Type |
Straight shaft with keyway (14 mm diameter, 30 mm length) |
| Brake Option |
Without brake (standard version) |
| Insulation Class |
Class B (130°C) |
| Protection Rating |
IP65 (shaft seal and connector, excluding shaft end) |
| Ambient Temperature |
0°C to +40°C (operation) |
| Ambient Humidity |
20% to 80% RH (non-condensing) |
| Vibration Level |
V15 (max 5.9 m/s²) |
| Weight |
Approx. 2.3 kg |
| Connector Type |
Standard round connector (CN1, CN2 for encoder and power) |
| Compatible Drive |
Panasonic MINAS A4 series (e.g., MCDHT3520, MBDHT2510) |
| Application |
CNC, packaging, robotics, textile, general automation |
