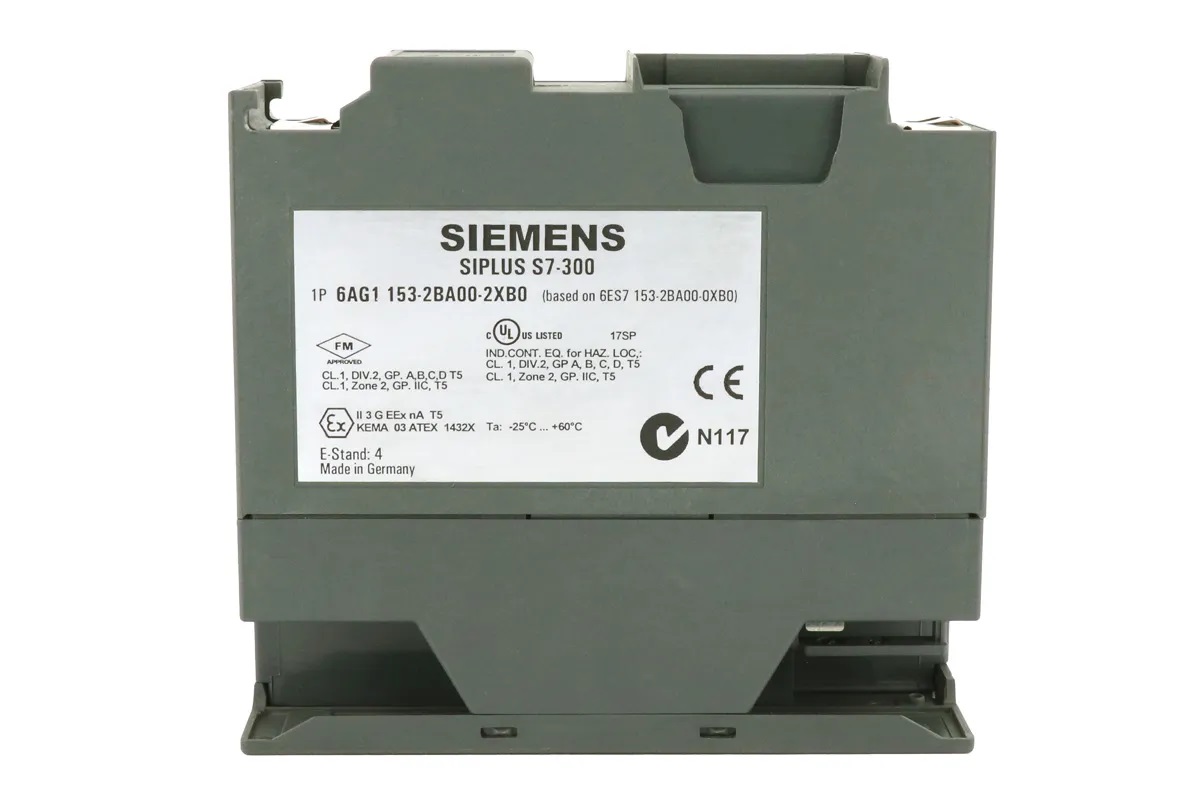

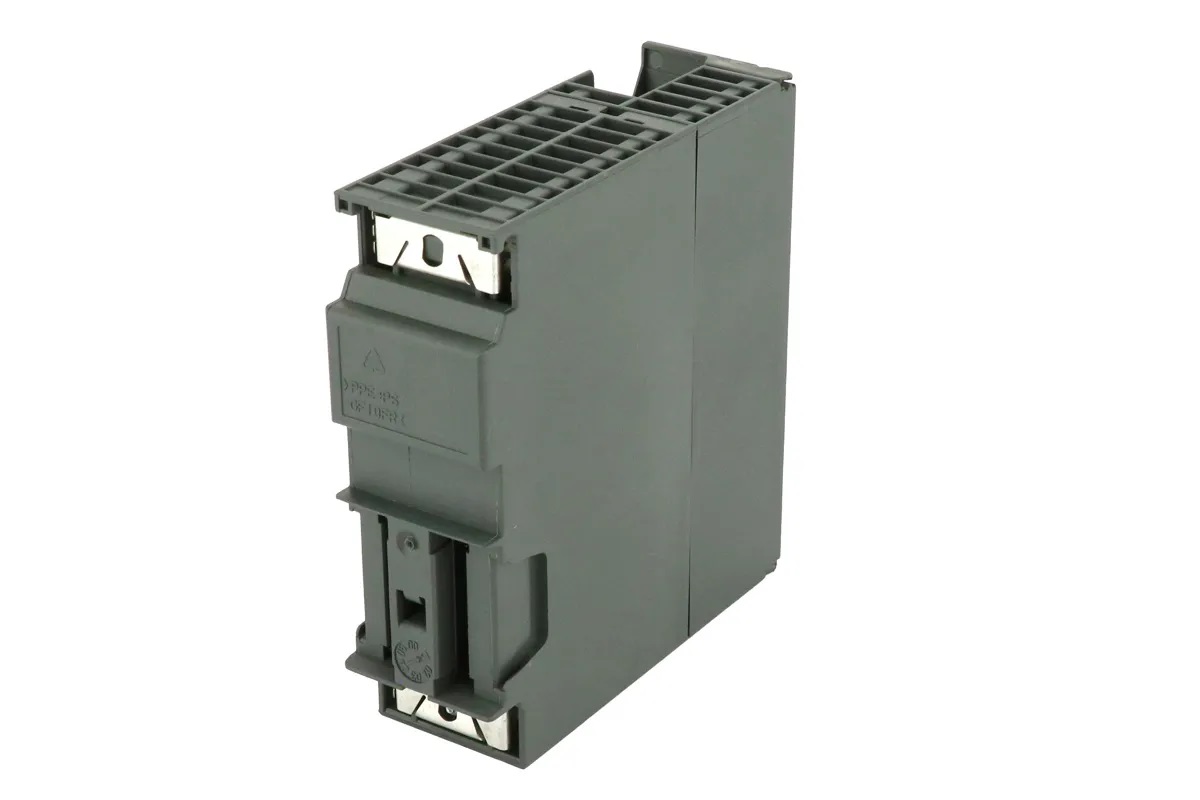

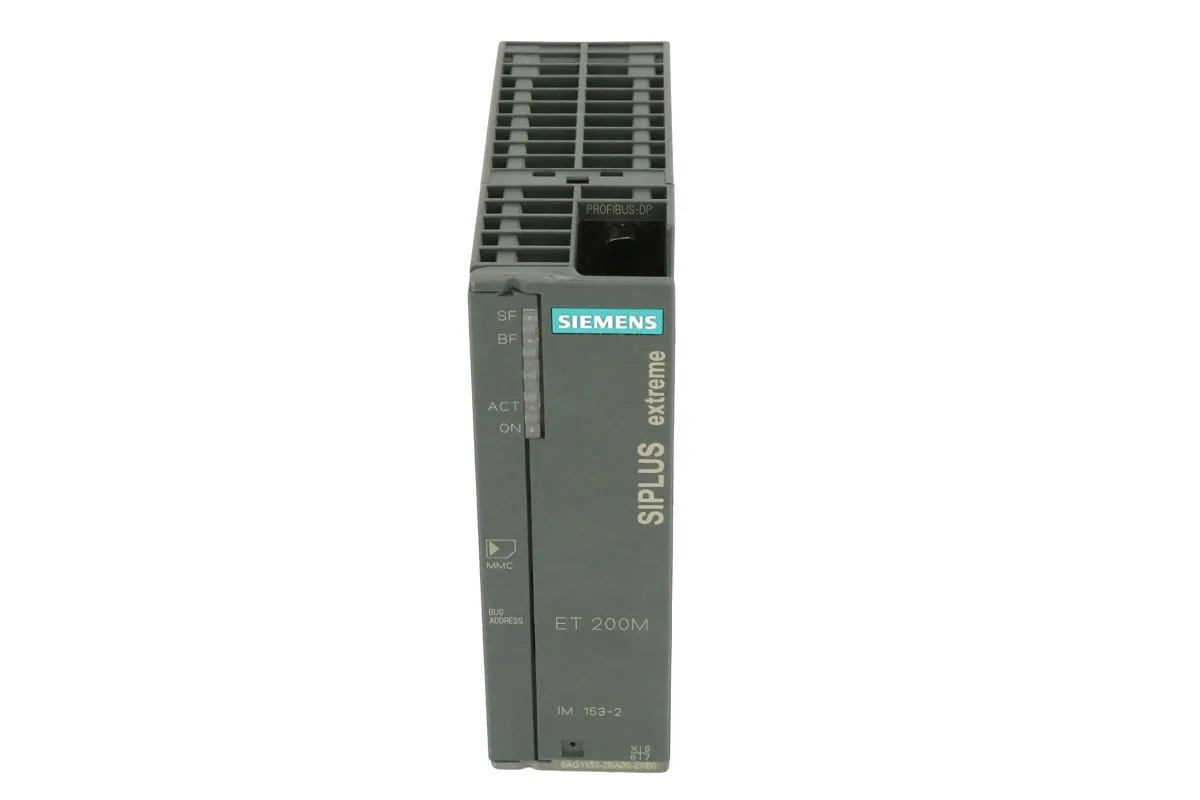

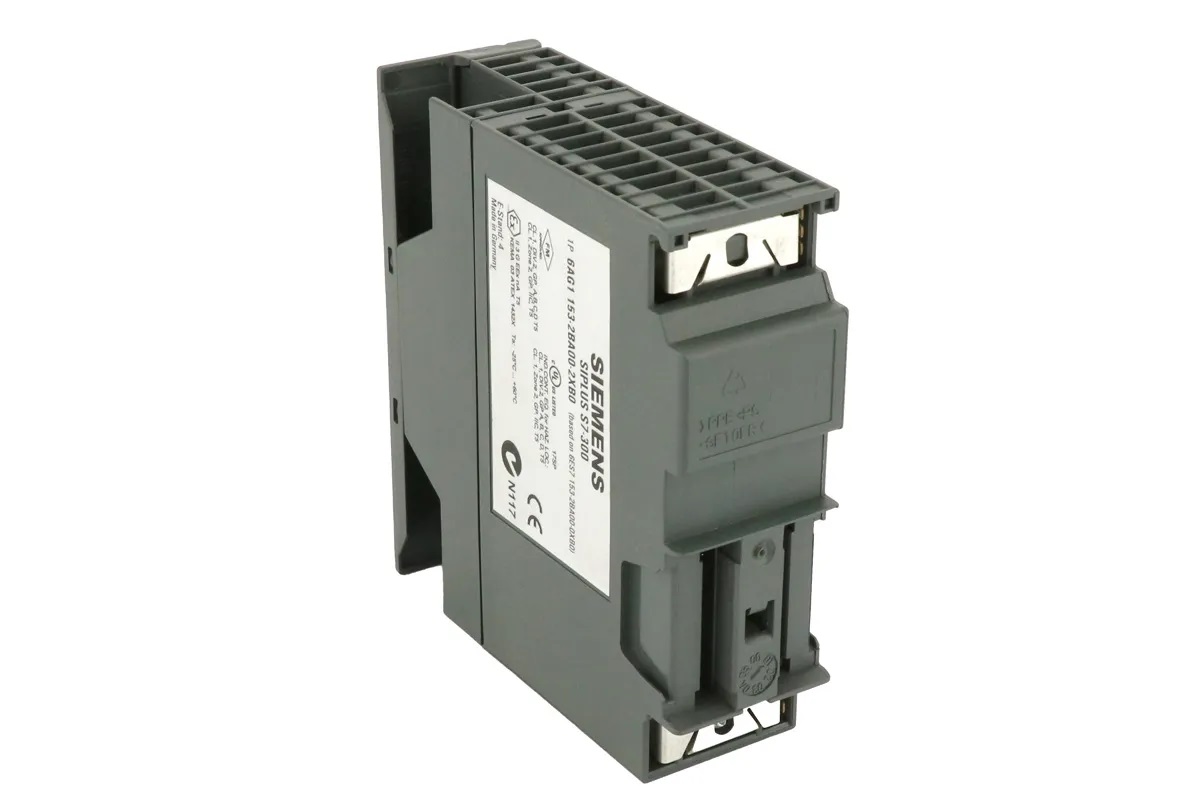

The Siemens ET 200M interface module, specifically the 6AG1153-2BA00-2XB0, is a critical component for building high-availability distributed control systems. Designed to bridge PROFIBUS DP networks with ET 200M I/O stations, this module ensures deterministic data transfer and seamless integration into Siemens TIA Portal environments. Its ruggedized construction meets stringent industrial standards, making it ideal for applications requiring extended temperature tolerance and vibration resistance. Whether deployed in chemical plants, power generation facilities, or automotive assembly lines, the 6AG1153-2BA00-2XB0 delivers consistent performance and low latency for real-time control tasks.
| Specification |
Details |
| Product Type |
ET 200M Interface Module (PROFIBUS DP) |
| Model Number |
6AG1153-2BA00-2XB0 |
| Communication Protocol |
PROFIBUS DP (RS-485 based, up to 12 Mbit/s) |
| Number of Slots Supported |
Up to 12 I/O modules per segment |
| Operating Temperature |
-40°C to +70°C (extended industrial range) |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Supply Voltage |
24 V DC (via backplane bus or external supply) |
| Power Consumption (Typical) |
4.5 W (without connected I/O modules) |
| Dimensions (W x H x D) |
40 mm x 125 mm x 120 mm |
| Weight |
Approx. 150 g |
| Mounting Type |
DIN rail (EN 60715) – snap-on or screw fixing |
| Degree of Protection |
IP20 (for indoor use in control cabinets) |
| Diagnostics |
LED indicators for bus status, module fault, and power |
| Configuration Software |
STEP 7 (TIA Portal) or SIMATIC Manager |
| Compliance / Certifications |
CE, UL, cUL, RoHS, WEEE |
| Standards |
EN 61131-2, EN 50170 (PROFIBUS DP) |
| Hot-Swappable |
Yes (with appropriate bus terminator) |
| Redundancy Support |
Not directly; use redundant interface modules for high-availability systems |
| Max. Cable Length (PROFIBUS) |
1200 m at 93.75 kbit/s; 200 m at 12 Mbit/s |
