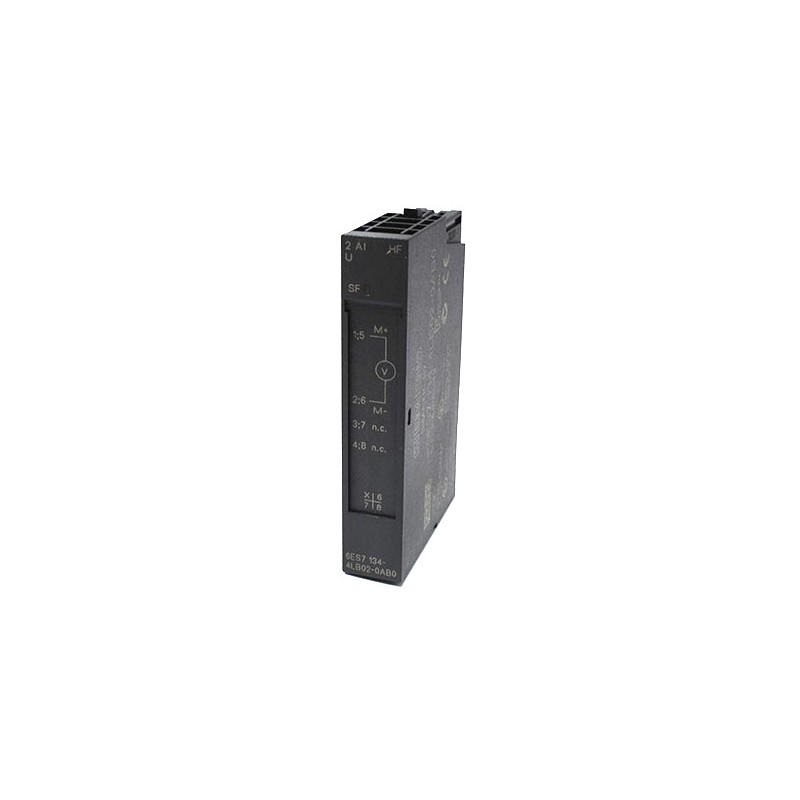

The Siemens 6ES7134-4LB02-0AB0 is a high-feature analog input electronic module designed for the ET 200S distributed I/O system. This module provides two channels for voltage measurement with exceptional accuracy and diagnostic capabilities, making it ideal for process control, machine building, and factory automation applications where precise signal acquisition is critical. As a High Feature variant, it offers advanced functions such as wire-break detection, overrange/underrange monitoring, and per-channel scaling, all configurable via the TIA Portal or STEP 7. Each input is electrically isolated from the backplane bus and from each other, ensuring reliable operation in electrically noisy environments. The module supports a wide range of voltage signals including 0–10V, ±10V, 0–5V, and ±5V, with a resolution of 15 bits plus sign, delivering high-fidelity data to the controller. Its compact design integrates seamlessly into ET 200S stations, requiring no external power supply for the sensor side beyond the backplane voltage. The 6ES7134-4LB02-0AB0 is RoHS compliant and CE marked, meeting global industrial standards.
| Parameter |
Specification |
| Product Type |
SIMATIC DP, Electronic Module for ET 200S |
| Model Number |
6ES7134-4LB02-0AB0 |
| Number of Inputs |
2 analog inputs (voltage) |
| Input Type |
Voltage (U) – High Feature |
| Input Ranges (nominal) |
0 to 10 V, ±10 V, 0 to 5 V, ±5 V |
| Resolution |
15 bits + sign (16-bit total) |
| Conversion Time per Channel |
≤ 1 ms |
| Electrical Isolation |
Yes, between channels and backplane bus |
| Diagnostics |
Wire-break, overrange, underrange, supply voltage missing |
| Parameterization |
Per channel: range, smoothing, diagnostics enable |
| Backplane Current Consumption |
Typically 50 mA from 5 V DC bus |
| Power Supply Voltage |
Via ET 200S backplane (24 V DC for module electronics) |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
Up to 95% (non-condensing) |
| Dimensions (W x H x D) |
15 mm x 81 mm x 52 mm (typical ET 200S module) |
| Weight |
Approximately 50 g |
| Compatible Interface Modules |
IM 151-1, IM 151-3, IM 151-8, etc. |
| Configuration Software |
TIA Portal V13 SP1 or higher, STEP 7 V5.5 SP1 or higher |
| Certifications |
CE, RoHS, cULus (pending) |
