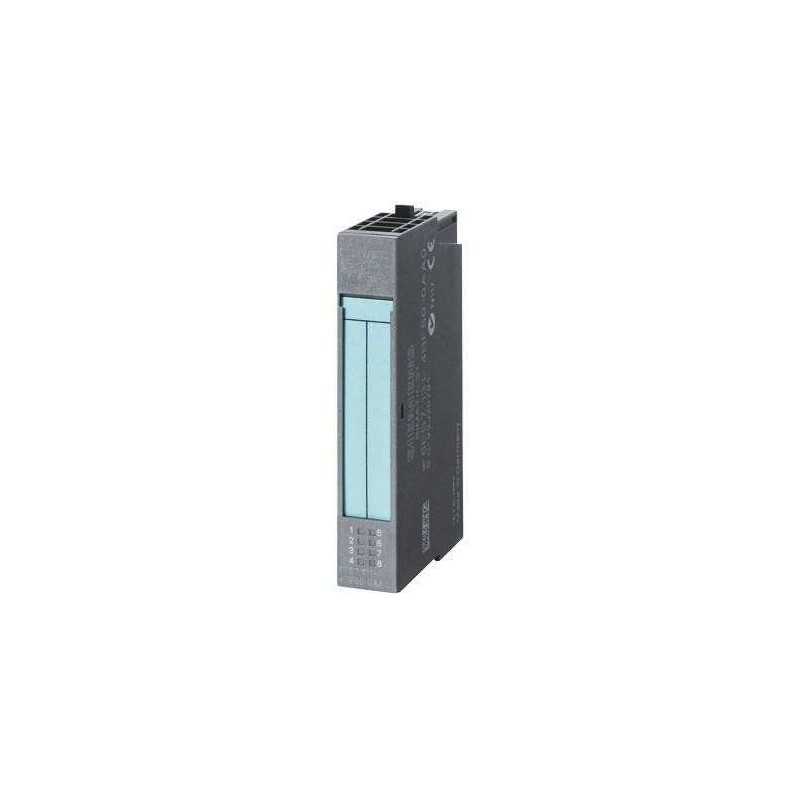

Siemens 6ES7132-4BB31-0AA0 Electronic Module for ET 200S

Siemens 6ES7132-4BB31-0AA0 Electronic Module for ET 200S

Series#: Siemens

Product Details

6ES7132-4BB31-0AA0 – High-performance SIMATIC DP electronic module for ET 200S distributed I/O systems.
5-channel digital output module with robust 24V DC rating, ideal for industrial automation and process control.
Compact design for space-saving installation in ET 200S terminal blocks, reducing cabinet footprint.
Integrated short-circuit and overload protection ensures reliable operation in harsh environments.
Plug-and-play compatibility with Siemens ET 200S interface modules and TIA Portal configuration.
High switching frequency and low power dissipation for energy-efficient machine control.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The 6ES7132-4BB31-0AA0 is a Siemens SIMATIC DP electronic module specifically engineered for the ET 200S distributed I/O system. This 5-channel digital output module operates at a nominal voltage of 24V DC, delivering precise and reliable switching for actuators, valves, and indicators in automated production lines. Designed with industrial-grade robustness, it features integrated diagnostics, short-circuit protection, and a compact form factor that optimizes panel space. The module supports seamless integration into existing Siemens automation architectures, including PROFIBUS-DP and PROFINET networks, making it a versatile choice for both new installations and retrofits. Its high switching speed and low power consumption contribute to enhanced system efficiency and reduced operational costs.

Parameter	Specification
Product Type	SIMATIC DP Electronic Module for ET 200S
Model Number	6ES7132-4BB31-0AA0
Number of Outputs	5 (digital)
Output Type	Transistor, 24V DC, source (PNP)
Rated Load Voltage	24V DC (20.4 to 28.8V DC)
Output Current per Channel	0.5 A (max. 2 A per module, short-circuit protected)
Short-Circuit Protection	Yes, electronic (current limiting, automatic restart)
Reverse Polarity Protection	Yes, via internal diode
Switching Frequency	Max. 100 Hz (resistive load), 10 Hz (inductive load)
Isolation	Between channels and backplane bus: 500V DC
Power Dissipation	Typ. 2.5 W (all outputs active)
Operating Temperature	0°C to +60°C (horizontal installation)
Storage Temperature	-40°C to +85°C
Dimensions (W x H x D)	15 mm x 81 mm x 52 mm (ET 200S standard)
Weight	Approx. 30 g
Diagnostics	Group error (via bus), channel-specific via LED
LED Indicators	Green: output active; Red: overload/short-circuit
Configuration	Via TIA Portal, STEP 7, or GSD file (PROFIBUS/PROFINET)
Compatible Systems	ET 200S interface modules (e.g., IM151-1, IM151-3)
Standards	IEC 61131-2, EN 61000-6-2 (EMC)
Protection Class	IP20 (in open control cabinet)
Certifications	CE, cULus, ATEX (Zone 2, optional)
