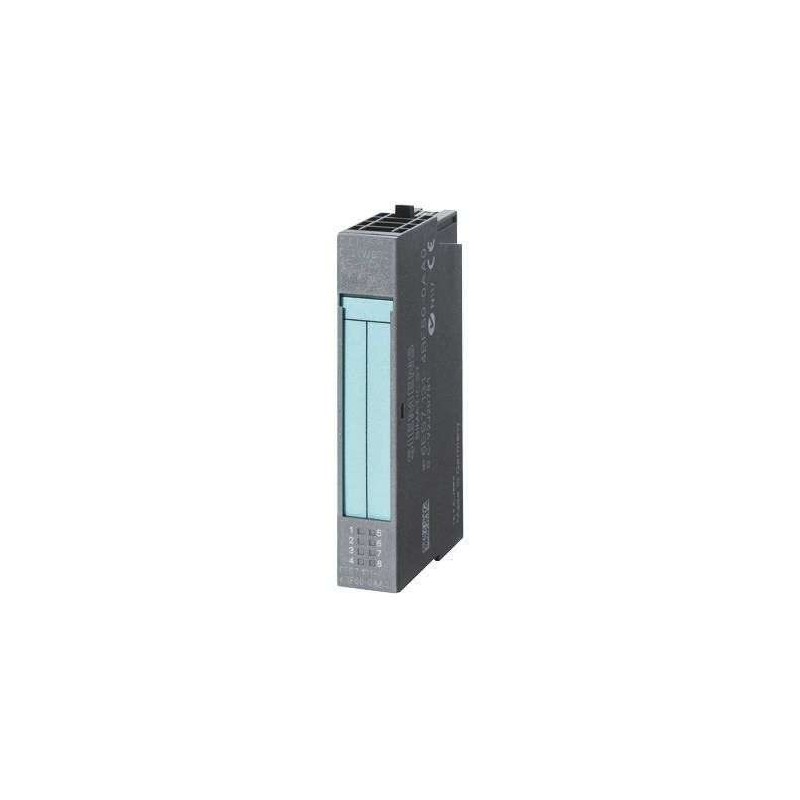

The SIEMENS SIMATIC ET 200S module with the product number 6ES7132-4BB01-0AA0 is a high-performance digital output unit designed for distributed automation architectures. As part of the ET 200S family, this module delivers precise switching control for actuators, relays, and small motors in industrial environments. With 4 channels operating at 24V DC and a rated output current of 2A per channel, it ensures robust and reliable operation even in harsh conditions. The module supports short-circuit protection and diagnostic functions, enhancing system uptime. Whether used in conveyor systems, packaging lines, or chemical processing plants, this Siemens component meets the strictest quality standards. Below is a comprehensive technical specification table for your reference.
| Parameter |
Specification |
| Product Type |
Digital Output Module |
| Model Number |
6ES7132-4BB01-0AA0 |
| Series |
Siemens SIMATIC ET 200S |
| Number of Channels |
4 |
| Output Voltage |
24V DC |
| Output Current per Channel |
2A (continuous) |
| Total Output Current |
8A (max, limited by module) |
| Short-Circuit Protection |
Yes, electronic |
| Diagnostic Functions |
Channel-specific fault indication |
| Isolation |
Between channels and backplane bus: 500V AC |
| Operating Voltage Range |
20.4V to 28.8V DC |
| Power Consumption |
Typical: 1.5W (without load) |
| Current Consumption from Backplane Bus |
Up to 30 mA |
| Switching Frequency |
Resistive load: max 100 Hz; Inductive load: max 0.5 Hz |
| Load Type |
Resistive, inductive, lamp loads |
| Connection Method |
Terminal block (spring-type, screw-type optional) |
| Dimensions (W x H x D) |
Approx. 15 mm x 76 mm x 70 mm |
| Weight |
Approx. 40 g |
| Ambient Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
Up to 95% (non-condensing) |
| Protection Class |
IP20 |
| Certifications |
CE, UL, cULus, FM, ATEX (for hazardous areas) |
| Mounting |
DIN rail (35 mm) |
| Compatible Backplane |
ET 200S interface modules (e.g., 6ES7151-1AA06-0AB0) |
