Siemens 6ES7131-4BD01-0AB0 Electronic Module

Series#: Siemens

Product Details

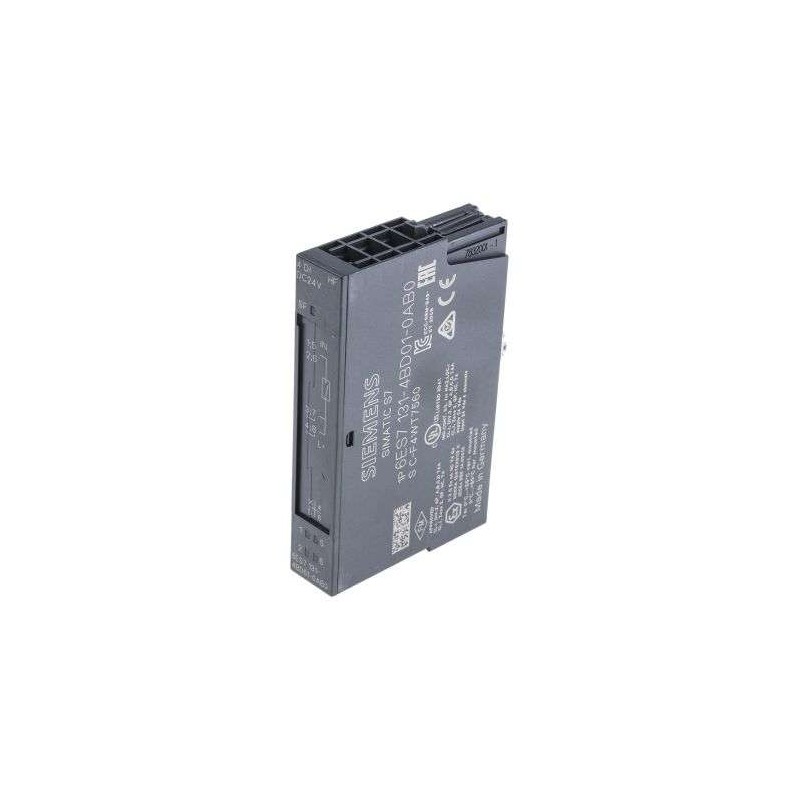

Model: 6ES7131-4BD01-0AB0 – High-performance SIMATIC DP electronic module for ET 200S distributed I/O systems.
5-channel digital input module with 24V DC supply, ideal for industrial automation and process control.
Compact design for space-saving installation in ET 200S terminals, supporting up to 63 modules per station.
Integrated diagnostics and short-circuit protection ensure reliable operation in harsh environments.
Plug-and-play compatibility with Siemens S7-300/400 and TIA Portal engineering framework.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Siemens 6ES7131-4BD01-0AB0 is a robust and versatile electronic module designed for the ET 200S distributed I/O system, specifically engineered to handle 5 digital input channels with 24V DC supply. This module is a critical component for industrial automation networks, offering seamless integration with Siemens SIMATIC DP controllers and Profibus-DP communication. Its compact form factor and high-density design allow for efficient use of cabinet space, while the built-in diagnostics and short-circuit protection enhance system reliability. Whether used in manufacturing, process control, or material handling, the 6ES7131-4BD01-0AB0 delivers consistent performance and long-term durability, making it a preferred choice for engineers worldwide.

Parameter	Specification
Product Type	SIMATIC DP Electronic Module for ET 200S
Model Number	6ES7131-4BD01-0AB0
Number of Digital Inputs	5
Input Voltage Type	DC
Rated Input Voltage	24 V DC (20.4 to 28.8 V)
Input Current at Rated Voltage	Typically 7 mA per channel
Input Delay (Hardware)	0.5 ms to 3 ms (configurable)
Signal Type	24V DC, logic 1: 15 to 30V; logic 0: -3 to +5V
Isolation	Between channels and backplane bus: 500 VAC for 1 minute
Short-Circuit Protection	Yes, via electronic fuse (auto-reset)
Diagnostics	Group error LED, per-channel status LED
Backplane Bus Current Consumption	Typically 60 mA
Power Supply from Backplane	Via ET 200S terminal module (e.g., 6ES7193-4CA00-0AA0)
Operating Temperature	0°C to 60°C (horizontal installation)
Storage Temperature	-40°C to 70°C
Relative Humidity	5% to 95% (non-condensing)
Dimensions (W x H x D)	15 mm x 120 mm x 75 mm (approx.)
Weight	Approximately 30 g
Compatibility	ET 200S stations with Profibus-DP or Profinet interface modules
Certifications	CE, cULus, ATEX (Zone 2) optional
Warranty	Standard 12 months (extended options available)
