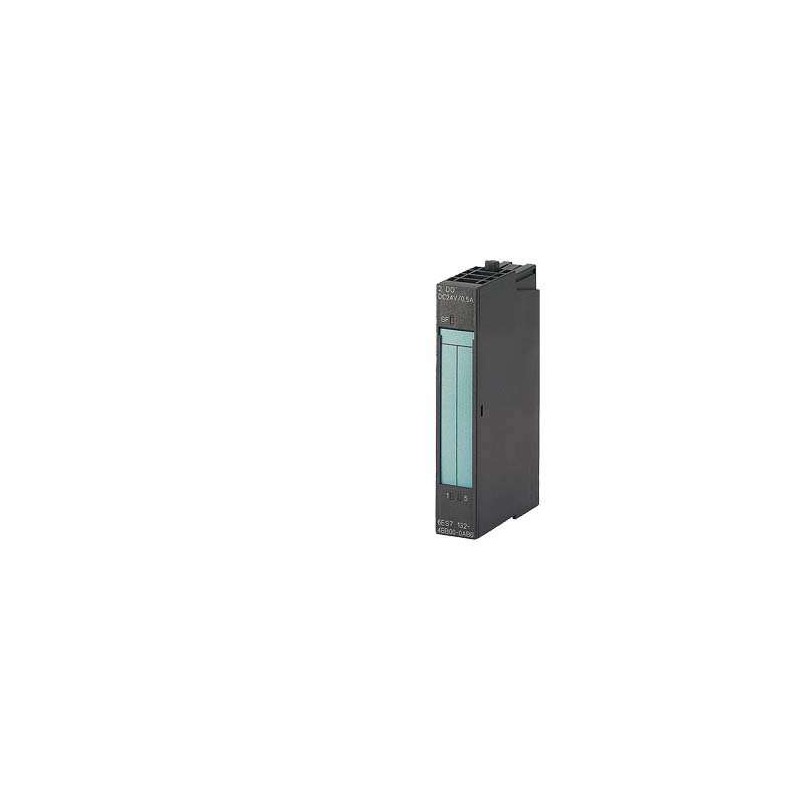

Siemens 6ES7131-4BB01-0AA0 Electronic Module

Series#: Siemens

Product Details

6ES7131-4BB01-0AA0 – Siemens SIMATIC DP electronic module for ET 200S distributed I/O system.
5 units per package, offering cost-effective and scalable expansion for industrial automation networks.
Designed for high-speed PROFIBUS DP communication with robust signal processing.
Compact form factor (15 mm width) saves control cabinet space without compromising performance.
Supports 2 digital inputs per module, 24 V DC, with short-circuit and reverse polarity protection.
Plug-in terminal design ensures quick installation and maintenance in harsh industrial environments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The 6ES7131-4BB01-0AA0 is a Siemens SIMATIC DP electronic module specifically engineered for the ET 200S distributed I/O system, a cornerstone of modern industrial automation. This product delivers reliable digital input acquisition in a compact, modular package. Each module provides two 24 V DC digital inputs with integrated diagnostics and protection, making it ideal for sensor signal processing in manufacturing lines, process plants, and material handling systems. The module communicates via the PROFIBUS DP protocol, ensuring deterministic data exchange with the controller. With its robust design and easy plug-in connectivity, the 6ES7131-4BB01-0AA0 offers a seamless upgrade path for legacy systems and new installations alike, supporting high-density configurations while minimizing downtime.

Parameter	Specification
Product Type	SIMATIC DP Electronic Module for ET 200S
Model Number	6ES7131-4BB01-0AA0
Quantity per Package	5 units
Input Type	Digital Inputs (2 per module)
Input Voltage	24 V DC (20.4 to 28.8 V DC)
Input Current (typical)	7 mA per input
Signal Level "0"	−3 to +5 V DC
Signal Level "1"	+11 to +30 V DC
Input Delay	Typ. 3 ms (hardware filter)
Isolation	Galvanic isolation between channels and backplane bus: 500 V AC
Backplane Bus Current Consumption	Max. 30 mA
Power Dissipation	Typ. 1.5 W
Dimensions (W x H x D)	15 mm x 81 mm x 52 mm
Weight	Approx. 30 g per module
Protection Class	IP20
Operating Temperature	0°C to +60°C
Storage Temperature	−40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Connection Method	Plug-in terminal block (screw or spring type, user-supplied)
Diagnostics	Group error LED (red/green), short-circuit detection
Protocol	PROFIBUS DP (DP-V0/DP-V1 compatible)
Standards	IEC 61131-2, EN 50178
