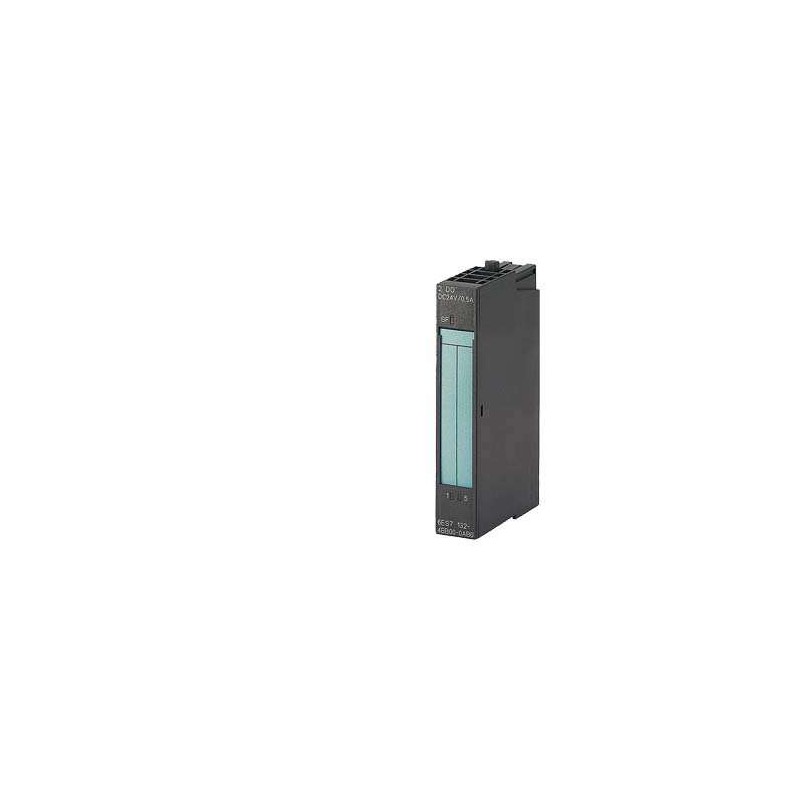

Siemens 6ES7131-4BB01-0AB0 Electronic Module

Series#: Siemens

Product Details

6ES7131-4BB01-0AB0 – High-performance SIMATIC DP electronic module for ET 200S distributed I/O systems.
Compact 5-piece set of electronic modules, ideal for space-saving installation in control cabinets.
Supports 2-wire and 3-wire sensor connections with 24V DC supply, ensuring robust signal acquisition.
Built-in short-circuit and overload protection for enhanced system reliability and uptime.
Seamless integration with Siemens ET 200S interface modules and PROFIBUS DP networks.
Rated for industrial environments with extended temperature range and vibration resistance.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 6ES7131-4BB01-0AB0 is a Siemens SIMATIC DP electronic module specifically designed for the ET 200S distributed I/O system. This set includes five identical electronic modules, each providing 4 digital inputs (24V DC) with a compact form factor. These modules are engineered for high-speed signal processing in demanding automation applications, such as conveyor control, packaging machinery, and assembly lines. With a robust design featuring integrated diagnostics and status LEDs, the 6ES7131-4BB01-0AB0 ensures reliable operation and easy troubleshooting. Each module supports both 2-wire and 3-wire sensor configurations, making it versatile for various field device connections. The modules are pre-configured for standard ET 200S terminal blocks, allowing quick and tool-free installation. Backed by Siemens’ industrial-grade quality, this set is ideal for system expansions or replacements in existing PROFIBUS DP networks.

Parameter	Specification
Product Type	SIMATIC DP Electronic Module for ET 200S
Model Number	6ES7131-4BB01-0AB0
Number of Modules per Set	5
Input Points per Module	4 Digital Inputs
Input Voltage Type	24V DC (20.4 to 28.8V DC)
Input Current per Channel	Typical 7 mA at 24V DC
Signal Type	Standard digital signals (IEC 61131-2 Type 1)
Sensor Connection	2-wire or 3-wire (with 24V supply)
Isolation	500V AC between channels and backplane bus
Protection	Short-circuit and overload protected per module
Diagnostics	Group error LED per module, channel status LEDs
Backplane Bus Interface	PROFIBUS DP via ET 200S interface module
Enclosure Type	Standard ET 200S electronic module housing
Dimensions (W x H x D)	15 mm x 81 mm x 52 mm per module
Weight per Module	Approx. 30 g
Operating Temperature	-25°C to +60°C (horizontal installation)
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	5g at 10-150 Hz (per IEC 60068-2-6)
Shock Resistance	15g, 11 ms (per IEC 60068-2-27)
EMC Compatibility	EN 61000-6-2 (industrial environments)
Power Consumption from Backplane	Typical 20 mA per module
Connection Technology	Screw-type or spring-loaded terminal blocks (sold separately)
Certifications	CE, cULus, ATEX (Group II, Category 3)
Ordering Unit	Set of 5 modules
