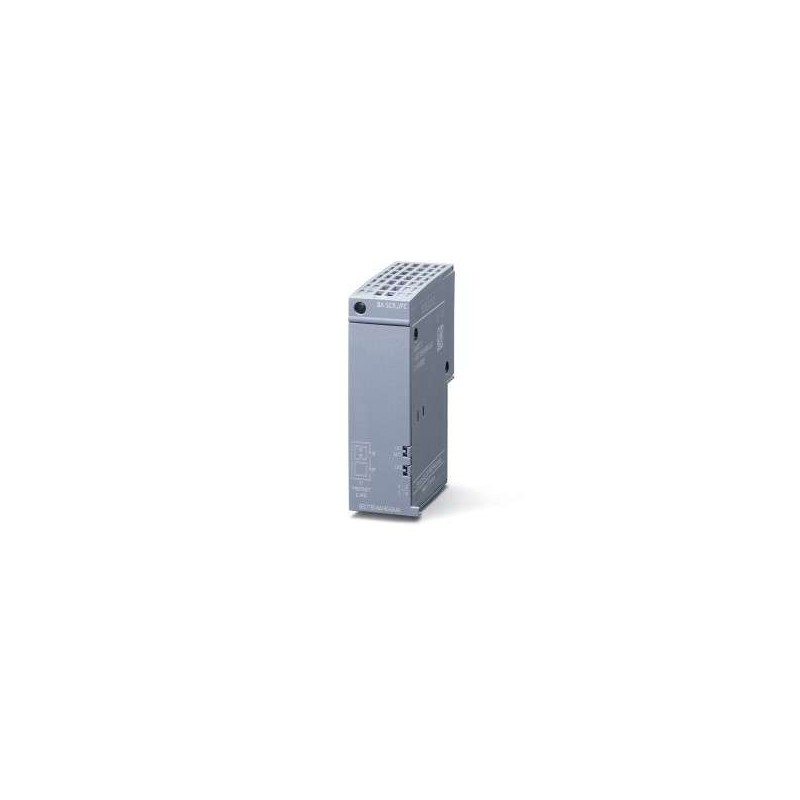

Siemens 6ES7193-6AP40-0AA0 Bus Adapter

Series#: Siemens

Product Details

6ES7193-6AP40-0AA0 – SIEMENS SIMATIC ET 200SP BusAdapter BA SCRJ/FC, Media Converter for fiber optic communication.
Enables seamless conversion between electrical and fiber optic signals, extending network distances up to several kilometers.
Designed for ET 200SP distributed I/O systems, ensuring robust and interference-free data transmission in harsh industrial environments.
Supports SCRJ fiber optic connectors (BFOC), providing reliable, high-speed communication for automation networks.
Plug-and-play installation with no additional configuration required, reducing setup time and maintenance costs.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SIEMENS SIMATIC ET 200SP BusAdapter BA SCRJ/FC, model 6ES7193-6AP40-0AA0, is a high-performance media converter specifically engineered for industrial automation networks requiring fiber optic connectivity. This BusAdapter transforms electrical signals from the ET 200SP backplane into optical signals via SCRJ (BFOC) connectors, enabling reliable long-distance communication up to 3 km (depending on fiber type and configuration). It is an essential component for distributed control systems in manufacturing plants, process industries, and infrastructure projects where electromagnetic interference or distance limitations of copper cables are a concern. The unit supports data rates up to 10 Mbps for PROFIBUS-compatible applications and is fully compatible with standard ET 200SP interface modules. Its compact design allows direct mounting on the bus module, simplifying cabling and reducing panel space. The BA SCRJ/FC is built to withstand industrial temperatures from -30°C to +60°C and offers galvanic isolation for enhanced signal integrity. Below is the detailed technical specification table for the 6ES7193-6AP40-0AA0.

Parameter	Specification
Product Type	BusAdapter BA SCRJ/FC (Media Converter)
Model Number	6ES7193-6AP40-0AA0
Connector Type	SCRJ (BFOC) – Fiber Optic
Fiber Type Supported	Multimode (MM) 50/125 µm or 62.5/125 µm
Maximum Transmission Distance (Multimode)	Up to 3 km (depending on fiber and attenuation)
Data Rate	Up to 10 Mbps (PROFIBUS-compatible)
Protocol Support	PROFIBUS DP, PROFINET (via interface module)
Power Supply	Via ET 200SP backplane bus (no external power required)
Current Consumption (from backplane)	Typical 50 mA at 24 VDC
Galvanic Isolation	Yes (between electrical and optical ports)
Operating Temperature	-30°C to +60°C (storage: -40°C to +85°C)
Relative Humidity	10% to 95% (non-condensing)
Protection Class	IP20 (enclosed in ET 200SP housing)
Dimensions (W x H x D)	Approx. 15 mm x 73 mm x 58 mm (module only)
Weight	Approx. 25 g
Compatible Interface Modules	ET 200SP IM 155-6 PN/DP (e.g., 6ES7155-6AU00-0BN0, 6ES7155-6BA00-0CN0)
Compatible Bus Modules	Standard ET 200SP bus modules (e.g., 6ES7193-6BP00-0DA0, 6ES7193-6BP00-0BA0)
Standards and Approvals	CE, cULus, ATEX (zone 2), IECEx (zone 2), Marine (DNV, GL, etc.)
MTBF (Mean Time Between Failures)	> 1,000,000 hours (based on Telcordia standard)
Warranty	Standard 12 months (extendable)
