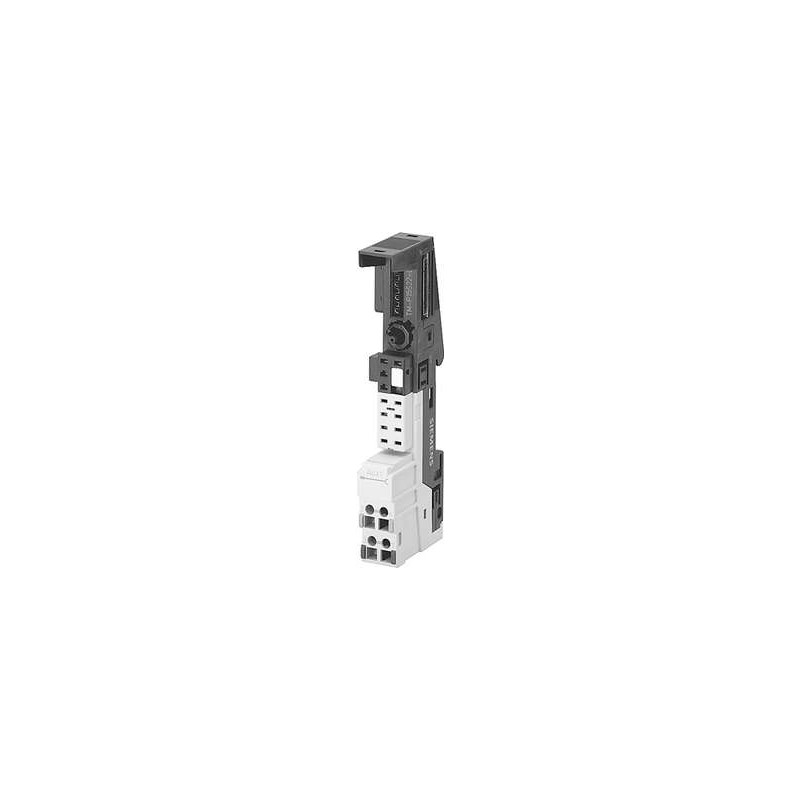

Siemens 6ES7193-4CC20-0AA0 Terminal Module

Series#: Siemens

Product Details

High-performance SIEMENS SIMATIC DP Terminal Module TM-P15S23-A1 (6ES7193-4CC20-0AA0) for ET 200S distributed I/O systems.
Specifically designed for power modules, ensuring reliable and secure power distribution in industrial automation environments.
Supports plug-in termination for easy wiring and maintenance, reducing downtime during system upgrades or repairs.
Compact and robust design, compatible with standard ET 200S backplane bus for seamless integration.
Rated for industrial temperature ranges and harsh conditions, ensuring long-term stability in factory floors.
Essential for modular automation architectures, offering flexible configuration for Power Modules up to 15 A.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 6ES7193-4CC20-0AA0 is a high-reliability Terminal Module from Siemens’ SIMATIC DP ET 200S series, specifically the TM-P15S23-A1 variant. This module serves as a critical interface for Power Modules in distributed automation systems, enabling efficient power supply and signal routing. Designed for use with ET 200S interface modules, it provides a secure connection for up to 15 A power modules, ensuring stable operation in demanding industrial applications. Its compact footprint and plug-in termination simplify installation and maintenance, while the robust construction withstands vibrations, temperature extremes, and electrical noise typical of factory floors. This terminal module is an essential component for building scalable, modular I/O stations, supporting both AC and DC power configurations.

Parameter	Specification
Product Type	Terminal Module (TM-P15S23-A1)
Model Number	6ES7193-4CC20-0AA0
System Compatibility	SIMATIC DP ET 200S
Application	For Power Modules up to 15 A
Number of Positions	23 (for power and signal connections)
Connection Type	Plug-in terminal (screw-type or spring-loaded, depending on variant)
Rated Current (max)	15 A (per power module channel)
Rated Voltage	24 V DC (standard) or up to 230 V AC (with appropriate power module)
Insulation Voltage	500 V AC (test voltage)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	Up to 95% (non-condensing)
Dimensions (W x H x D)	Approx. 45 mm x 80 mm x 70 mm
Weight	Approx. 50 g
Protection Class	IP20 (enclosed when installed in cabinet)
Mounting Type	Snap-on mounting on DIN rail (standard EN 60715)
Electrical Isolation	Yes, between power and logic circuits
LED Indicators	None (status via power module)
Certifications	CE, UL, cUL, ATEX (for hazardous locations)
Compliance	RoHS, REACH
Standard Models	AC Models (230 V AC) and DC Models (24 V DC) supported via power module selection
Accessories Included	Terminal block, labeling strips (optional)
