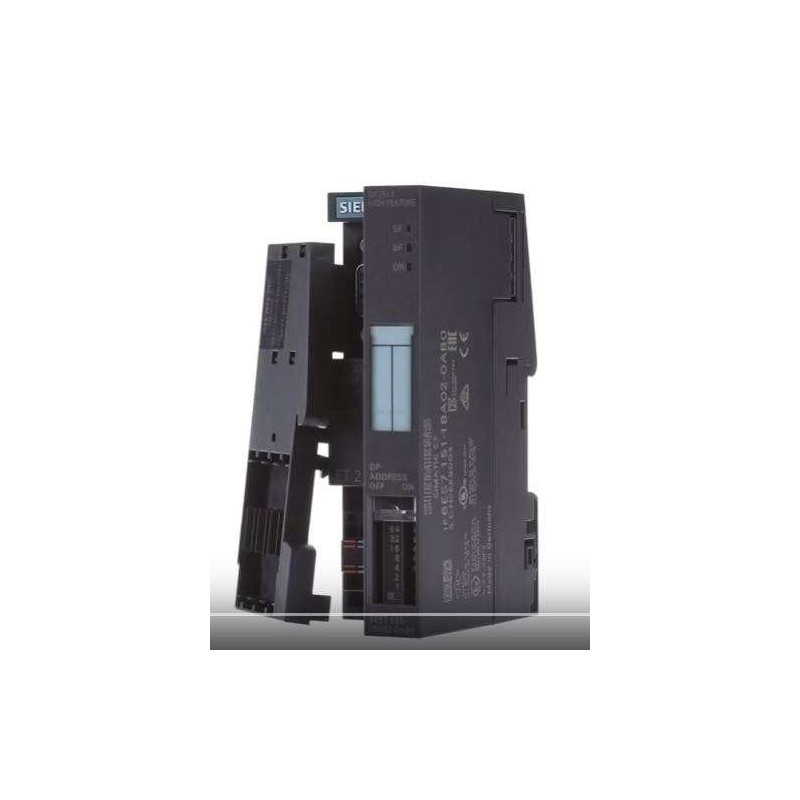

The Siemens SIMATIC DP Interface Module 6ES7151-1BA02-0AB0, designated as the IM151-1 High Feature, is a critical component for the ET200S distributed I/O system. This advanced module serves as the gateway between the ET200S station and a PROFIBUS DP network, enabling high-speed data exchange, robust diagnostics, and isochronous communication. Engineered for complex automation environments, it supports up to 63 I/O modules and offers a data volume of 244 bytes for both inputs and outputs. The module is designed for seamless integration with Siemens STEP 7 configuration tools, ensuring straightforward setup and commissioning. Its robust design and advanced feature set make it ideal for applications requiring precise timing and high reliability, such as in automotive, packaging, and material handling industries.
| Specification |
Details |
| Product Type |
Interface Module IM151-1 High Feature |
| Part Number |
6ES7151-1BA02-0AB0 |
| Series |
SIMATIC DP |
| System Compatibility |
ET200S |
| Transmission Rate |
Up to 12 Mbit/s |
| Data Volume (Input/Output) |
244 bytes each |
| Maximum Modules Supported |
63 |
| Isochronous Mode |
Supported |
| Bus Connector Type |
9-pin D-sub (RS-485) |
| Bus Termination |
Integrated termination module included |
| Configuration Software |
STEP 7 (as of V5.5 or TIA Portal) |
| Supply Voltage |
24 V DC (via ET200S backplane bus) |
| Current Consumption (from backplane bus) |
Typically 220 mA |
| Power Dissipation |
Typically 3.5 W |
| Ambient Temperature (Operation) |
0 °C to 60 °C |
| Ambient Temperature (Storage) |
-40 °C to 70 °C |
| Protection Class |
IP20 |
| Dimensions (W x H x D) |
45 mm x 100 mm x 75 mm |
| Weight |
Approx. 150 g |
| Warranty |
Standard Siemens warranty applies |
