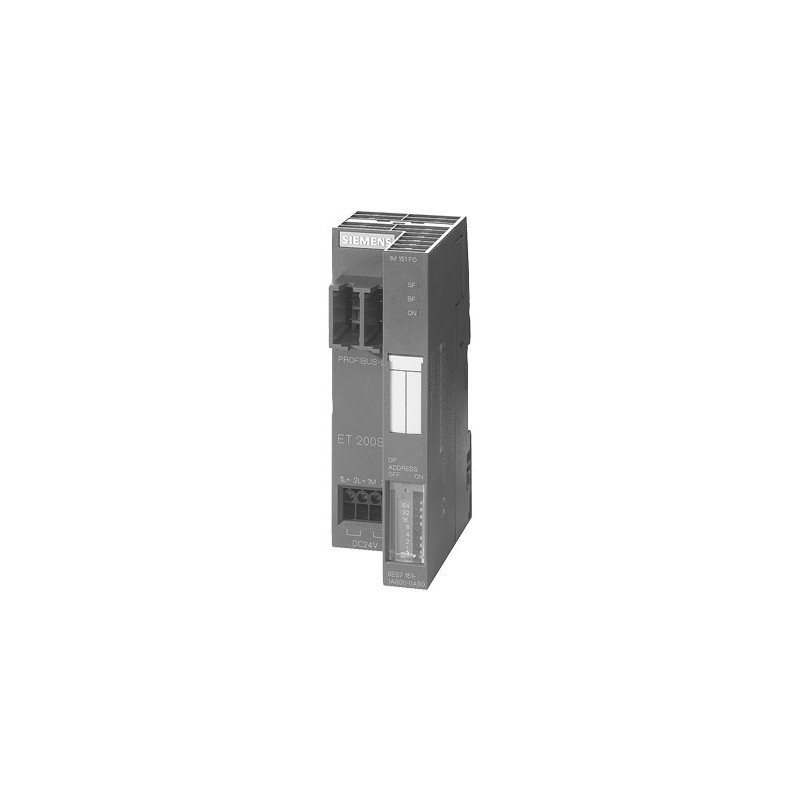

Siemens IM151-1 FO Interface Module

Series#: Siemens

Product Details

Product: 6ES7151-1AB05-0AB0 – Siemens SIMATIC DP Interface Module IM151-1 FO for ET200S.
High-speed fiber optic communication at up to 12 Mbit/s, ensuring robust data transfer in electrically noisy environments.
Supports up to 63 ET200S modules, offering exceptional scalability for distributed I/O architectures.
Includes integrated terminating module for simplified installation and optimal signal integrity.
Seamless integration with Siemens STEP 7 for straightforward configuration and addressing.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

Designed for demanding industrial automation applications, the Siemens SIMATIC DP Interface Module IM151-1 FO, model 6ES7151-1AB05-0AB0, serves as the critical communication backbone for ET200S distributed I/O systems. This fiber optic interface module bridges the ET200S station to a PROFIBUS DP network, enabling high-speed, interference-free data transmission over long distances. Its robust construction and integrated terminating module simplify installation while maintaining signal fidelity, making it an ideal choice for environments with significant electromagnetic interference or where galvanic isolation is paramount. The module's ability to manage up to 63 power, electronic, or motor starter modules provides the flexibility needed for complex, scalable automation setups.

Specification	Details
Product Type	Interface Module IM151-1 FO for ET200S
Model Number	6ES7151-1AB05-0AB0
Transmission Rate	Up to 12 Mbit/s
Data Volume (Input/Output)	244 bytes each
Max. Number of Modules Supported	63 (power, electronic, or motor starter modules)
Interface Type	Integrated Fiber Optic (FO) interface
Connector Type	Fiber optic connectors (e.g., BFOC/ST or similar, per Siemens standard)
Terminating Module	Included
PROFIBUS DP Protocol	Yes (DP-V0, DP-V1)
Configuration Software	Siemens STEP 7 (as of version 5.5 or later, or TIA Portal)
Supply Voltage	Via ET200S backplane bus (24 V DC)
Current Consumption (from backplane bus)	Typically 200 mA (max)
Power Loss	Typically 5 W
Ambient Operating Temperature	0 °C to +60 °C
Storage Temperature	-40 °C to +85 °C
Relative Humidity	Up to 95% (non-condensing)
Protection Class	IP20
Dimensions (W x H x D)	Approx. 50 mm x 125 mm x 120 mm (module only, excluding connectors)
Weight	Approx. 200 g
Standards / Certifications	CE, cULus, FM, ATEX (Zone 2) – environment dependent
Customization	Standard product, not customizable
Warranty	Standard Siemens warranty applies
