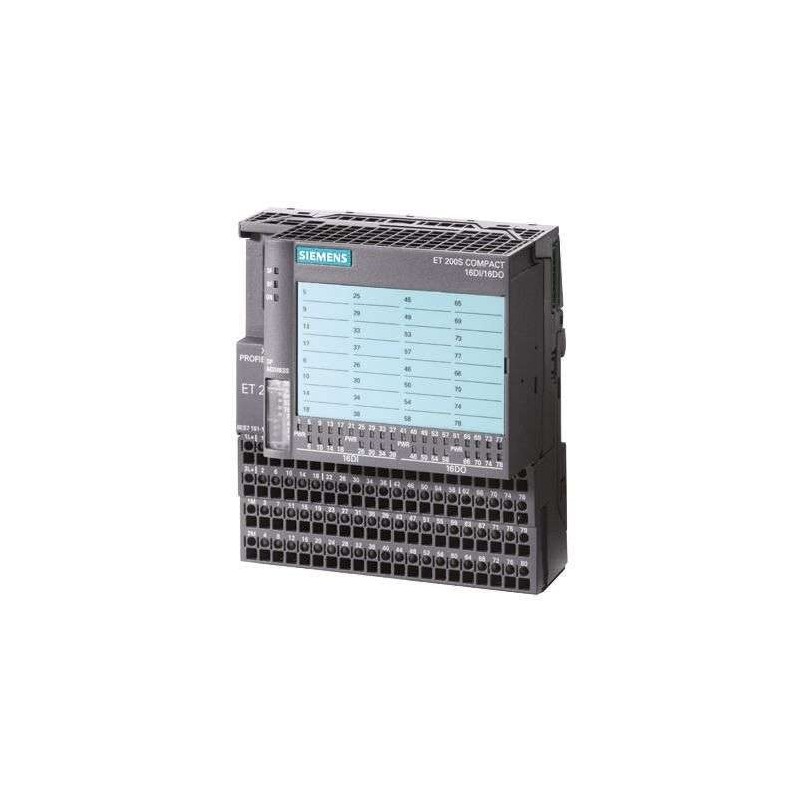

The Siemens ET 200S Compact module, model 6ES7151-1CA00-3BL0, is a high-performance electronic module engineered for distributed I/O applications in industrial automation. This unit integrates 16 digital inputs and 16 digital outputs in a single, compact housing, significantly reducing panel space and wiring complexity. Designed for 24 V DC systems, it delivers a fast 3 ms input response time and provides 0.5 A per output for reliable actuator control. The module supports expansion with up to 12 additional ET 200S modules (excluding F-modules), enabling flexible system scaling. Built for durability, it operates reliably across a broad temperature range and meets IP20 protection standards. Configuration is straightforward via Siemens STEP 7 software, ensuring seamless integration into existing SIMATIC architectures. This product is 100% new and original, backed by Siemens quality standards, and available for immediate shipment.
| Specification |
Details |
| Product Type |
ET 200S Compact Electronic Module |
| Model Number |
6ES7151-1CA00-3BL0 |
| Inputs |
16 Digital Inputs (DI), 24 V DC, 3 ms response time |
| Outputs |
16 Digital Outputs (DO), 24 V DC, 0.5 A per output (max) |
| Supply Voltage |
24 V DC (via ET 200S system power bus) |
| Expandability |
Up to 12 additional ET 200S modules (excluding F-modules) |
| Operating Temperature |
-25°C to +70°C |
| Humidity |
5% to 95% RH (non-condensing) |
| Protection Class |
IP20 (when installed in appropriate enclosure) |
| Isolation |
500 V DC between channels and backplane bus |
| Configuration Software |
Siemens STEP 7 (as of V5.5 or later) |
| Weight |
Approx. 0.15 kg |
| Dimensions (W x H x D) |
40 mm x 125 mm x 75 mm |
| Certifications |
CE, cULus, ATEX (zone 2) compliant |
