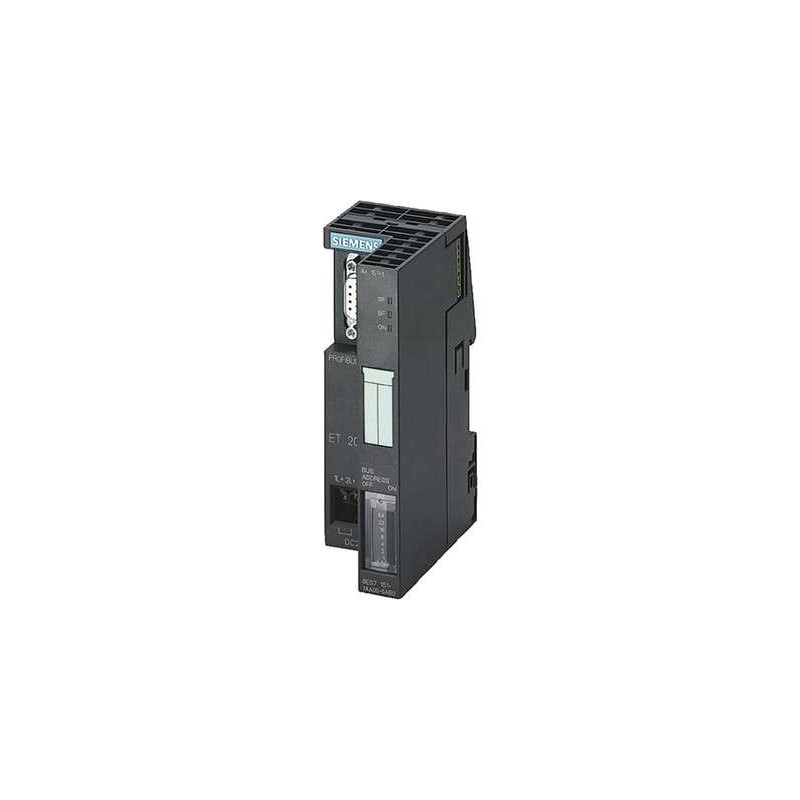

Siemens IM151-1 Basic Interface Module

Series#: Siemens

Product Details

Model 6ES7151-1CA00-0AB0 – Siemens SIMATIC DP Interface Module IM151-1 Basic for ET200S terminating modules.
Connects up to 12 standard power, electrical, or motor starter modules in a distributed I/O system.
High-speed PROFIBUS DP communication at up to 12 Mbit/s for real-time data exchange.
Compact design with integrated 9-pin Sub-D bus connector and terminating module for easy installation.
Seamlessly integrates with Siemens STEP 7 configuration software for rapid system setup.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Siemens SIMATIC DP Interface Module IM151-1 Basic, order number 6ES7151-1CA00-0AB0, is the essential gateway for building a robust ET200S distributed I/O station. Designed for terminating module configurations, this interface module acts as the brain of the slave station, handling all PROFIBUS DP communication with a higher-level controller. It supports up to 12 standard modules (excluding fail-safe types) and delivers reliable, high-speed data throughput at rates up to 12 Mbit/s. The module is built for harsh industrial environments, with a wide operating temperature range and robust electromagnetic compatibility. Its compact form factor and integrated 9-pin Sub-D connector simplify wiring and reduce panel space. For engineers seeking a cost-effective yet powerful solution for decentralised automation, the 6ES7151-1CA00-0AB0 provides a proven, field-tested foundation for ET200S systems.

Specification	Details
Product Type	SIMATIC DP Interface Module IM151-1 Basic
Order Number	6ES7151-1CA00-0AB0
System Compatibility	ET200S distributed I/O system (terminating module variant)
Communication Protocol	PROFIBUS DP (RS-485)
Transmission Rate	Up to 12 Mbit/s (auto-bauding supported)
Bus Interface	1x 9-pin Sub-D female connector (with integrated terminating module)
Max. Number of Modules Supported	12 (standard power, electrical, or motor starter modules; excludes F-modules)
Power Supply	Via ET200S backplane bus (24 V DC typical, supplied by system power module)
Operating Temperature	-25 °C to +70 °C (storage: -40 °C to +85 °C)
Relative Humidity	5% to 95% (non-condensing)
Dimensions (W x H x D)	Approx. 120 mm x 125 mm x 75 mm (module only, excluding connectors)
Weight	Approx. 0.25 kg
Configuration Software	Siemens STEP 7 (V5.5 or later) / TIA Portal (V13 or later)
Protection Class	IP20 (when installed in an ET200S terminal block)
Electrical Isolation	Between PROFIBUS interface and backplane bus: Yes, 500 V AC
Product Lifecycle	Active – standard product, no customisation options
