Siemens DP Master Interface Module

Series#: Siemens

Product Details

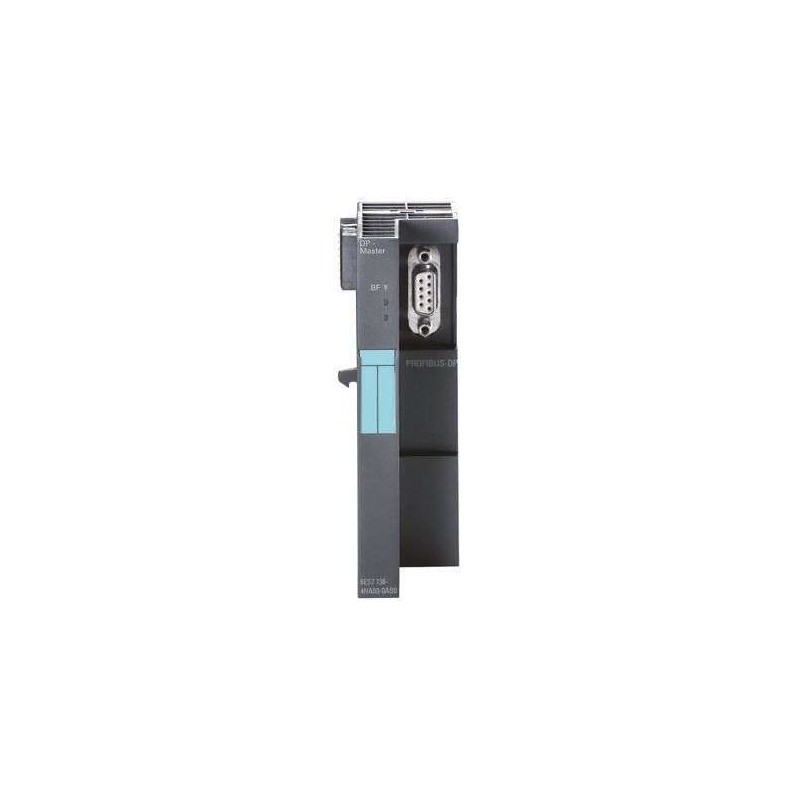

6ES7138-4HA00-0AB0 Siemens SIMATIC DP Master Interface Module for ET200S systems.
Designed exclusively for IM 151-7 CPU or IM 151-8 PN/DP, enabling high-speed PROFIBUS DP communication.
Features a robust 9-pin Sub-D female connector for reliable DP Master connectivity at up to 12 Mbit/s.
Supports parallel operation of two PROFIBUS DP interfaces, maximizing system flexibility and equipment utilization.
Seamlessly integrates with STEP 7 engineering software for straightforward configuration and diagnostics.
Engineered for harsh industrial environments with a wide operating temperature range and CE certification.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Siemens SIMATIC DP Master Interface Module, model 6ES7138-4HA00-0AB0, is a critical component for expanding the communication capabilities of the ET200S distributed I/O system. Specifically designed to work in tandem with the IM 151-7 CPU or the IM 151-8 PN/DP, this module provides a dedicated PROFIBUS DP master interface. It allows engineers to connect additional DP slaves, creating a highly scalable and redundant network architecture. The module’s integrated 12 Mbit/s DP interface ensures deterministic data exchange, making it ideal for high-speed automation tasks in sectors like automotive, water treatment, and material handling. With its compact form factor and direct mounting on the terminal module, it delivers a space-saving yet powerful solution for modern industrial control.

Specification	Details
Product Type	SIMATIC DP, DP Master Interface Module for ET200S
Model Number	6ES7138-4HA00-0AB0
Product Series	SIMATIC DP, ET200S
Country of Origin	Germany
Form Factor	Modular, plug-in module for ET200S terminal block
Mounting Type	Field mountable via ET200S base unit
Interface Type	PROFIBUS DP Master (9-pin Sub-D, female connector)
Communication Protocol	PROFIBUS DP (EN 50170)
Transmission Rate	Up to 12 Mbit/s (automatic baud rate detection)
Operating Voltage	24 V DC (supplied via backplane bus)
Current Consumption (from backplane bus)	Typically 30 mA
Power Loss	Typically 0.72 W
Supported CPUs	IM 151-7 CPU / IM 151-7 F-CPU / IM 151-8 PN/DP
Number of DP Slaves Supported	Up to 124 slaves per DP master (system dependent)
Diagnostics	Group error LED (SF) and bus status LED (BUSF)
Operating Temperature	-25 °C to +70 °C
Storage Temperature	-40 °C to +85 °C
Relative Humidity	5% to 95% (non-condensing)
Dimensions (W x H x D)	Approx. 10.2 cm x 10.9 cm x 8.6 cm (including connector)
Weight	Approx. 0.42 kg
Configuration Software	STEP 7 V5.2 SP1 or higher / TIA Portal
Certifications	CE, cULus, ATEX (when used in appropriate system)
Warranty	Standard 1-year warranty (subject to seller policy)
