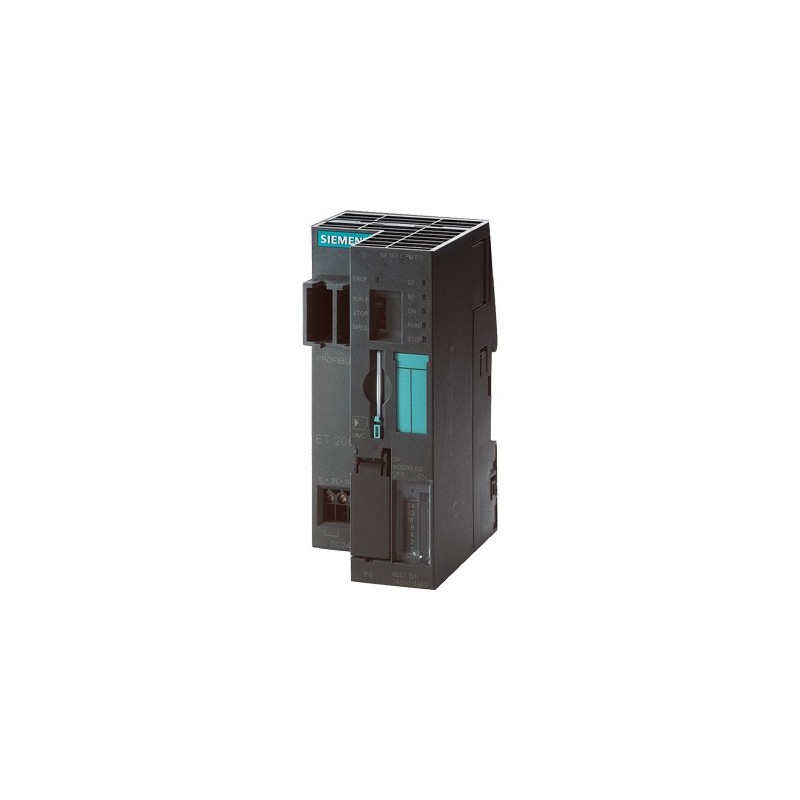

The Siemens SIMATIC DP IM151-7 CPU FO module (6ES7151-7AB00-0AB0) is a robust, integrated CPU and PROFIBUS DP slave interface designed for the ET200S distributed I/O system. This compact unit combines a powerful 48KB working memory with a fiber optic simplex PROFIBUS DP connection, enabling reliable, high-speed data exchange in harsh industrial settings. Its battery-less operation simplifies lifecycle management, while compatibility with STEP 7 ensures straightforward programming and configuration. As a core component of the ET200S family, the IM151-7 CPU FO supports flexible expansion with various I/O modules, making it an ideal choice for demanding automation tasks in process control, manufacturing lines, and plant-wide networks.
| Specification |
Details |
| Product Type |
SIMATIC DP, IM151-7 CPU FO Interface Module |
| Model Number |
6ES7151-7AB00-0AB0 |
| Series |
Siemens SIMATIC ET200S |
| Communication Interface |
PROFIBUS DP via FO (Fiber Optic) Simplex Connector |
| Role in Network |
DP Slave |
| Working Memory |
48 KB (available from firmware version V1.13) |
| Battery Backup |
Not required (battery-less design) |
| Programming Software |
Siemens STEP 7 (TIA Portal compatible) |
| Power Supply |
Via ET200S backplane bus (system-dependent) |
| Operating Temperature |
0°C to +60°C (typical industrial range) |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Protection Class |
IP20 (suitable for control cabinet installation) |
| Dimensions (W x H x D) |
Approx. 45 mm x 100 mm x 75 mm (standard ET200S form factor) |
| Weight |
Approx. 120 g |
| Compliance |
CE, cULus, ATEX (when used with appropriate ET200S modules) |
| MTBF |
Typically > 500,000 hours (based on Siemens reliability data) |
| Applications |
Process control, manufacturing lines, machine automation, plant-wide PROFIBUS networks |
