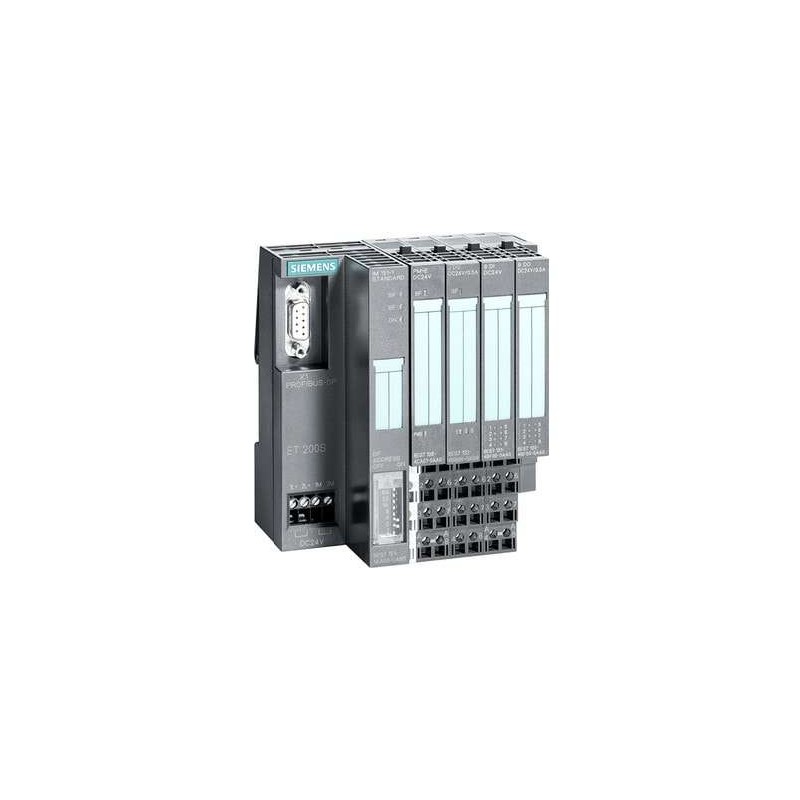

The Siemens 6ES7151-1AA05-0AB0 is a standard PROFIBUS DP interface module for the ET200S distributed I/O system, engineered to deliver reliable and high-speed communication between the I/O station and the DP master. As a cornerstone of modern industrial automation, this IM151-1 Standard module supports data rates up to 12 Mbit/s and can manage up to 63 peripheral modules, ensuring scalable and efficient integration. Its robust RS485 interface with a 9-pin SUB-D connector and built-in termination resistor guarantees signal integrity in harsh factory environments. Whether you are modernizing an existing line or building a new system, this module offers plug-and-play compatibility with Siemens S7-300/400 controllers and third-party DP masters, making it an essential component for any PROFIBUS-based architecture.
| Specification |
Details |
| Product Type |
SIMATIC DP Interface Module IM151-1 Standard |
| Model Number |
6ES7151-1AA05-0AB0 |
| System |
ET200S Distributed I/O |
| Communication Protocol |
PROFIBUS DP V0, V1 |
| Bus Interface |
RS485, 9-pin SUB-D (female) |
| Transmission Rate |
Up to 12 Mbit/s |
| Number of Peripheral Modules |
Max. 63 |
| Input Data Volume |
244 bytes |
| Output Data Volume |
244 bytes |
| Termination Resistor |
Integrated, can be activated via bus connector |
| Supply Voltage |
24 V DC (via ET200S backplane bus) |
| Power Consumption |
Typ. 1.5 W |
| Ambient Temperature |
0 °C to +60 °C (horizontal installation) |
| Storage Temperature |
-40 °C to +70 °C |
| Dimensions (W x H x D) |
Approx. 40 x 125 x 75 mm |
| Weight |
Approx. 100 g |
| Assembly Options |
90° / 35° / quick-connect network connectors (with/without programming port) |
| Certifications |
CE, cULus, FM, ATEX (depending on configuration) |
