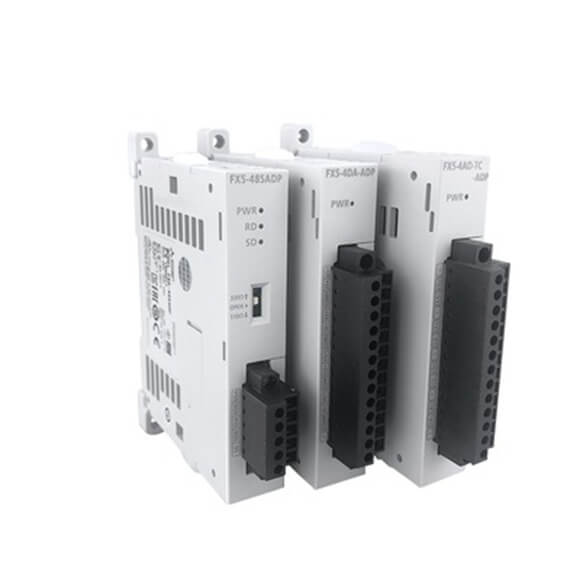

Mitsubishi FX5-4AD-TC-ADP PLC Expansion Module

Series#: Mitsubishi

Product Details

High-Precision Mitsubishi PLC Expansion Module FX5-4AD-TC-ADP and FX5-4AD-PT-ADP for accurate temperature and analog input processing.
Directly compatible with FX5U/FX5UC CPU modules for seamless integration.
Supports thermocouple (TC) and RTD (PT) sensor inputs for versatile temperature measurement.
Compact design with high-speed data refresh for real-time control.
Robust industrial-grade construction ensuring long-term reliability in harsh environments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi PLC Expansion Module FX5-4AD-TC-ADP and FX5-4AD-PT-ADP are precision-engineered analog input modules designed to extend the capabilities of the FX5U/FX5UC series CPU modules. These modules deliver accurate temperature sensing via thermocouple or RTD probes, making them ideal for process control applications in manufacturing, HVAC, and energy management. With a stored-program repetitive operation control system and support for ladder diagram, structured text, and function block diagram programming, they ensure flexible and efficient automation. The modules feature a refresh I/O system with direct access input/output specifications, enabling rapid data acquisition and minimal latency.

Parameter	Specification
Control System	Stored-program repetitive operation
I/O Control System	Refresh system (Direct access input/output allowed via [DX, DY])
Programming Language	Ladder diagram (LD), Structured text (ST), Function block diagram/Ladder (FBD/LD)
Programming Expansion Function	Function block (FB), Function (FUN), Label programming (local/global)
Constant Scan	0.2 to 2000 ms (0.1 ms increments)
Fixed Cycle Interrupt	1 to 60000 ms (1 ms increments)
Timer Performance	100 ms, 10 ms, 1 ms
Number of Program Executions	32
Number of FB Files	16 (Up to 15 for user)
Execution Type	Standby, Initial execution, Scan execution, Fixed-cycle execution, Event execution
Interrupt Type	Internal timer, input, high-speed comparison match, module interrupt
Instruction Processing Time (LD X0)	34 ns
Instruction Processing Time (MOV D0 D1)	34 ns
Memory Program Capacity	64 k steps (128 kbytes, flash memory)
SD Memory Card	SD/SDHC: Max. 4 Gbytes
Device/Label Memory	120 kbytes
Data Memory/Standard ROM	5 Mbytes
Flash Memory Write Count	Max. 20000 times
File Storage Capacity	1
Program Files / FB Files	P: 32, FB: 16
SD Memory Card Capacity	2 Gbytes: 511Q1, 4 Gbytes: 65534Q1
Clock Function	Year, month, day, hour, minute, second, day of week (leap year auto detection)
Clock Precision	Monthly difference: ±45 sec at 25°C (typical)
Input/Output Points	256 points or less
Remote I/O Points	384 points or less
Total I/O Points	512 points or less
Power Failure Retention Capacity	12 K words maximum

Analog Input Channels: The FX5-4AD-TC-ADP supports 4 thermocouple inputs, while the FX5-4AD-PT-ADP handles 4 RTD (PT100) inputs, both with high-resolution conversion for precise temperature measurement.
Data Refresh Speed: Offers fast data update rates (as low as 1 ms per channel), ensuring real-time responsiveness for critical process loops.
Isolation and Protection: Built-in channel-to-channel isolation and surge protection to prevent interference and damage in industrial environments.
Configuration Flexibility: Fully programmable via GX Works3 software, allowing custom scaling, filtering, and alarm settings for each channel.
Environmental Ratings: Rated for operation from 0°C to 55°C, with storage from -25°C to 75°C, and humidity tolerance up to 95% RH non-condensing.
