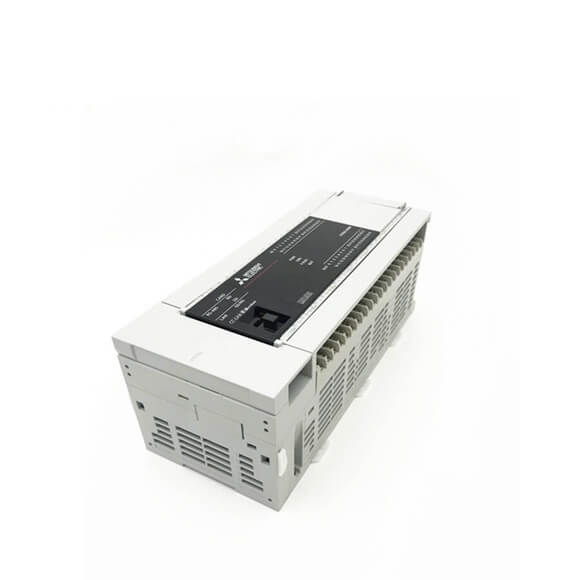

The Mitsubishi FX5UC-64MT/D is a cutting-edge PLC controller module designed for demanding industrial environments, offering a perfect blend of speed, memory, and I/O density. As part of the FX5U series, this compact unit delivers 64 digital I/O points with transistor sink outputs, making it an ideal choice for high-speed sorting, packaging, and assembly lines. With a program capacity of 64k steps and a device/label memory of 120 kbytes, the FX5UC-64MT/D ensures robust control execution with minimal latency, supporting advanced functions like fixed-cycle interrupts and label programming for efficient code management.
| Parameter |
Specification |
| Control System |
Stored-program repetitive operation |
| I/O Control System |
Refresh system (Direct access I/O allowed via DX, DY) |
| Programming Language |
Ladder Diagram (LD), Structured Text (ST), Function Block Diagram/Ladder (FBD/LD) |
| Constant Scan |
0.2 to 2000 ms (0.1 ms increments) |
| Fixed Cycle Interrupt |
1 to 60000 ms (1 ms increments) |
| Timer Performance |
100 ms, 10 ms, 1 ms |
| Program Execution Count |
32 |
| FB Files |
16 (Up to 15 user-defined) |
| Execution Type |
Standby, Initial, Scan, Fixed-cycle, Event |
| Interrupt Type |
Internal timer, input, high-speed comparison match, module interrupt |
| Instruction Processing Time (LD X0) |
34 ns |
| Instruction Processing Time (MOV D0 D1) |
34 ns |
| Program Capacity |
64 k steps (128 kbytes, flash memory) |
| SD Memory Card |
SD/SDHC max. 4 Gbytes |
| Device/Label Memory |
120 kbytes |
| Data Memory/Standard ROM |
5 Mbytes |
| Flash ROM Write Count |
Max. 20,000 times |
| File Storage Capacity (Device/Label) |
1 |
| Program Files / FB Files |
P: 32, FB: 16 |
| SD Memory Card File Count |
2 Gbytes: 511 files, 4 Gbytes: 65,534 files |
| Clock Precision |
Monthly ±45 sec at 25°C (typical) |
| Total I/O Points |
256 points max |
| Remote I/O Points |
384 points max |
| Combined I/O + Remote I/O |
512 points max |
| Power Failure Retention Capacity |
12 K words max |
- High-Speed Processing: 34 ns per basic instruction ensures real-time control for fast machinery.
- Flexible Programming: Supports multiple languages including Ladder (LD), Structured Text (ST), and Function Block Diagram (FBD/LD) for diverse engineering needs.
- Advanced Interrupt Capabilities: Internal timer, input, high-speed comparison match, and module interrupts for precise event handling.
- Memory Options: 64k step program capacity plus 5 Mbytes data memory/standard ROM for extensive application storage.
- Integrated Communication: Built-in Ethernet port and SD memory card slot for easy network integration and data logging.
- Robust I/O Configuration: 64 digital points with transistor sink outputs, expandable via remote I/O up to 512 total points.
- Reliable Power Failure Handling: Retention of up to 12 K words ensures critical data is preserved during outages.
