Mitsubishi FX5UC-64MR/DS PLC Controller Module

Series#: Mitsubishi

Product Details

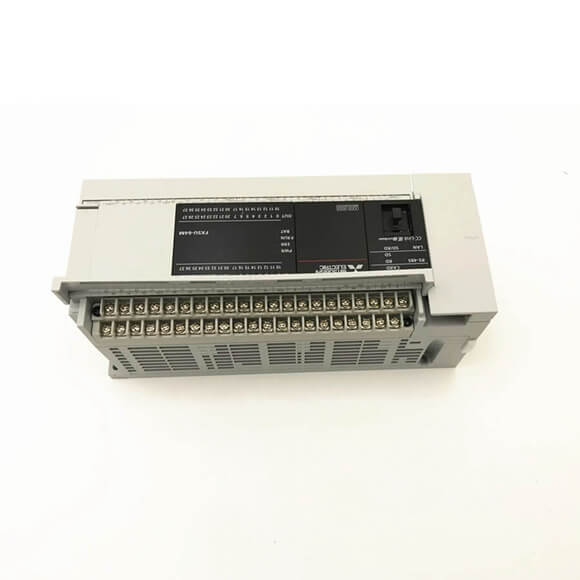

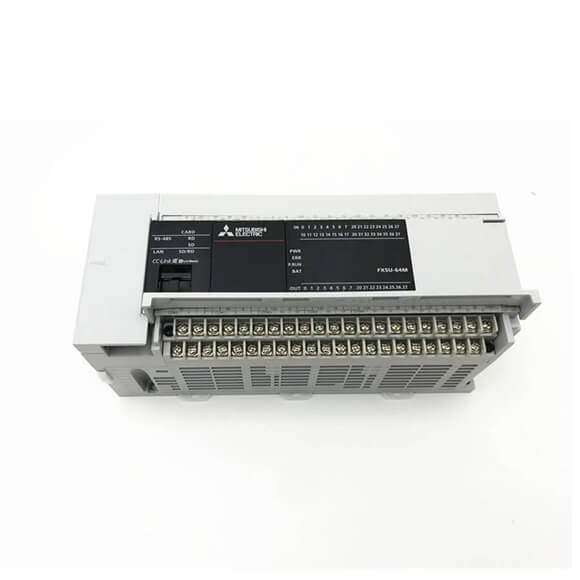

Mitsubishi PLC Controller module FX5UC-64MR/DS – High-performance compact CPU with 64 I/O points.
Ultra-fast instruction processing: 34 ns for LD X0 and MOV D0 D1 operations.
Large program memory: 64 k steps (128 kbytes) with flash memory for reliable storage.
Versatile programming languages: Ladder, Structured Text, and FBD/LD for flexible automation.
Robust memory options: 120 kbytes device/label memory and 5 Mbytes data memory/standard ROM.
Supports SD memory card up to 4 Gbytes for extended data logging and backup.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi PLC Controller module FX5UC-64MR/DS is a cutting-edge CPU module designed for demanding industrial automation environments. It combines lightning-fast 34 ns instruction execution with a compact form factor, making it ideal for space-constrained applications. This module supports advanced programming languages including ladder logic, structured text, and function block diagrams, ensuring seamless integration into existing systems. With 64 I/O points and a total system capacity of up to 512 points (including remote I/O), the FX5UC-64MR/DS delivers exceptional scalability and performance for complex control tasks.

Parameter	Specification
Control System	Stored-program repetitive operation
Input/Output Control System	Refresh system (Direct access input/output allowed via DX, DY)
Programming Language	Ladder diagram (LD), Structured text (ST), Function block diagram/Ladder language (FBD/LD)
Programming Expansion Function	Function block (FB), Function (FUN), Label programming (local/global)
Constant Scan	0.2 to 2000 ms (settable in 0.1 ms increments)
Fixed Cycle Interrupt	1 to 60000 ms (settable in 1 ms increments)
Timer Performance Specifications	100 ms, 10 ms, 1 ms
Number of Program Executions	32
Number of FB Files	16 (Up to 15 for user)
Execution Type	Standby, Initial execution, Scan execution, Fixed-cycle execution, Event execution
Interrupt Type	Internal timer interrupt, Input interruption, High-speed comparison match interrupt, Interrupt from module
Instruction Processing Time LD X0	34 ns
Instruction Processing Time MOV D0 D1	34 ns
Memory Program Capacity	64 k steps (128 kbytes, flash memory)
SD Memory Card	SD/SDHC memory card: Max. 4 Gbytes
Device/Label Memory	120 kbytes
Data Memory/Standard ROM	5 Mbytes
Flash Memory Write Count	Max. 20000 times
File Storage Capacity	1
Number of Program Files / FB Files	P: 32, FB: 16
SD Memory Card Capacity	2 Gbytes: 511Q1, 4 Gbytes: 65534Q1
Clock Function Display Data	Year, month, day, hour, minute, second, day of week (leap year automatic detection)
Clock Precision	Monthly difference: ±45 sec at 25°C (typical value)
Number of Input/Output Points	256 points or less
Number of Remote I/O Points	384 points or less
Total I/O Points (Local + Remote)	512 points or less
Power Failure Retention Capacity	12 K words maximum

High-Speed Processing: Achieves 34 ns per basic instruction, enabling real-time control in high-speed applications.
Flexible Programming: Supports multiple languages (LD, ST, FBD/LD) and advanced features like FB, FUN, and label programming for modular design.
Robust Memory Architecture: 64 k steps program memory, 120 kbytes device/label memory, and 5 Mbytes data memory ensure ample storage for complex projects.
Expandable I/O System: Handles up to 256 local I/O points and 384 remote I/O points, with a total system capacity of 512 points.
Reliable Data Retention: Flash memory with up to 20,000 write cycles and 12 K words power failure retention safeguard critical data.
Integrated Clock Function: Provides accurate timekeeping with automatic leap year detection and ±45 sec/month precision.
SD Memory Card Support: Enables easy data logging, firmware updates, and program backup using SD/SDHC cards up to 4 Gbytes.
