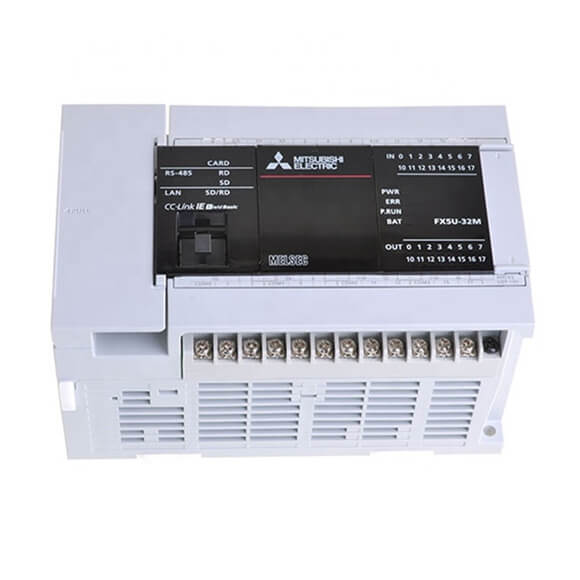

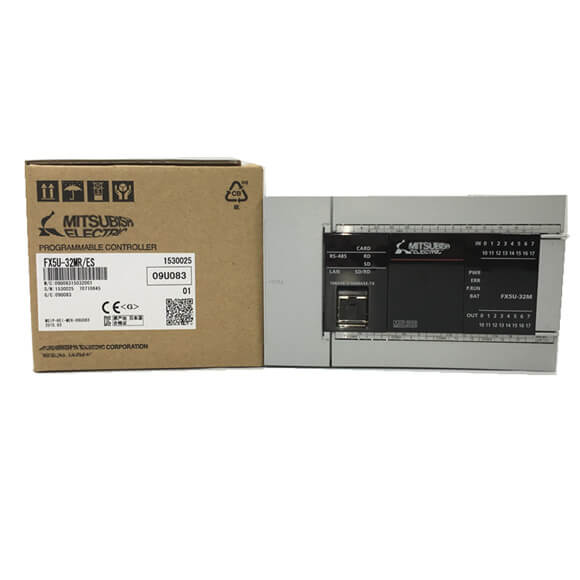

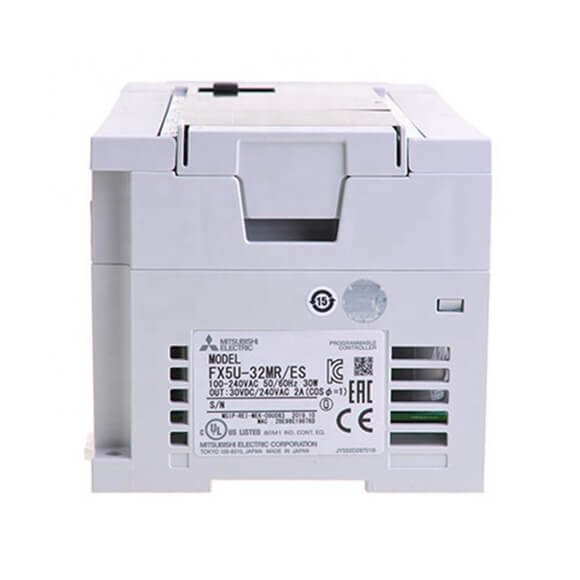

Mitsubishi FX5-32ER/DS PLC Controller Module

Series#: Mitsubishi

Product Details

Model: Mitsubishi PLC Controller Module FX5-32ER/DS and FX5-32ET/DS – high-performance compact controllers for the MELSEC iQ-F series.
Ultra-fast instruction processing: just 34 ns for LD X0 and MOV D0 D1 operations.
Large program capacity: 64 k steps (128 kbytes) in flash memory, plus 5 Mbytes data memory.
Versatile programming languages: Ladder, Structured Text (ST), and FBD/LD with FB and label support.
Flexible interrupt handling: internal timer, input, high-speed comparison match, and module interrupts.
Supports SD/SDHC memory cards up to 4 Gbytes for easy data logging and backup.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi PLC Controller Module FX5-32ER/DS and FX5-32ET/DS are essential building blocks for the MELSEC iQ-F automation platform, engineered to deliver exceptional speed, scalability, and reliability in demanding industrial environments. These compact modules integrate advanced control features, including a stored-program repetitive operation system and a refresh-based I/O control scheme that also supports direct access input/output via DX and DY specifications. With instruction processing times as low as 34 nanoseconds, the FX5-32ER/DS and FX5-32ET/DS ensure real-time responsiveness for complex machine control tasks. They support multiple programming languages—Ladder (LD), Structured Text (ST), and Function Block Diagram/Ladder (FBD/LD)—along with function blocks (FB), functions (FUN), and local/global label programming for maximum flexibility. The modules also feature a constant scan range of 0.2 to 2000 ms (in 0.1 ms increments) and fixed-cycle interrupt intervals from 1 to 60000 ms, enabling precise timing control. With up to 32 program executions, 16 FB files (15 user-defined), and multiple execution types (standby, initial, scan, fixed-cycle, event), the FX5-32ER/DS and FX5-32ET/DS are designed for diverse application needs. Memory capabilities include 64 k steps of program storage in flash ROM (up to 20,000 write cycles), 120 kbytes of device/label memory, and 5 Mbytes of data memory/standard ROM. The clock function offers year, month, day, hour, minute, second, and day-of-week tracking with a typical monthly accuracy of ±45 seconds at 25°C. The modules support up to 256 local I/O points, 384 remote I/O points, and a total of 512 points combined. Power failure retention is provided for up to 12 K words. For advanced data management, an SD/SDHC memory card slot supports capacities up to 4 Gbytes.

Parameter	Specification
Control system	Stored-program repetitive operation
Input/output control system	Refresh system (Direct access input/output allowed by specification of direct access input/output [DX, DY])
Programming language	Ladder diagram (LD), structured text (ST), function block diagram/ladder language (FBD/LD)
Programming expansion function	Function block (FB), function (FUN), label programming (local/global)
Constant scan	0.2 to 2000 ms (can be set in 0.1 ms increments)
Fixed cycle interrupt	1 to 60000 ms (can be set in 1 ms increments)
Timer performance specifications	100 ms, 10 ms, 1 ms
No. of program executions	32
No. of FB files	16 (Up to 15 for user)
Execution type	Standby type, initial execution type, scan execution type, fixed-cycle execution type, event execution type
Interrupt type	Internal timer interrupt, input interruption, high-speed comparison match interrupt, interrupt from module
Instruction processing time LD X0	34 ns
Instruction processing time MOV D0 D1	34 ns
Memory Program capacity	64 k steps (128 kbytes, flash memory)
SD memory card	Memory card capacity (SD/SDHC memory card: Max. 4 Gbytes)
Device/label memory	120 kbytes
Data memory/standard ROM	5 Mbytes
Flash memory (Flash ROM) write count	Max. 20000 times
File storage capacity (Device/label memory)	1
Data memoryP: No. of program files FB: No. of FB files	P: 32, FB: 16
SD memory card	2 Gbytes: 511Q1, 4 Gbytes: 65534Q1
Clock function display data	Year, month, day, hour, minute, second, day of week (leap year automatic detection)
Precision	Monthly difference: ±45 sec at 25°C (typical value)
(1) No. of input/output points	256 points or less
(2) No. of remote I/O points	384 points or less
Total No. of points of (1) and (2)	512 points or less
Capacity for power failure retention	12 K words maximumQ3

Memory Architecture: 64 k steps program memory (flash), 120 kbytes device/label memory, 5 Mbytes data memory/standard ROM – ensures ample space for complex applications.
Interrupt Handling: Supports internal timer, input, high-speed comparison match, and module interrupts – critical for real-time event-driven control.
Programming Flexibility: Multiple languages (LD, ST, FBD/LD) with FB, FUN, and label programming – ideal for diverse automation tasks.
Data Storage: SD/SDHC card slot up to 4 Gbytes for logging and backup – enhances data management capabilities.
Timing Precision: Constant scan from 0.2 to 2000 ms and fixed-cycle interrupts from 1 to 60000 ms – provides fine-grained control over execution timing.
I/O Expansion: Supports up to 256 local I/O points and 384 remote I/O points (total 512) – scalable for medium to large systems.
Power Failure Retention: Retains up to 12 K words of data – ensures critical parameters are preserved during outages.
