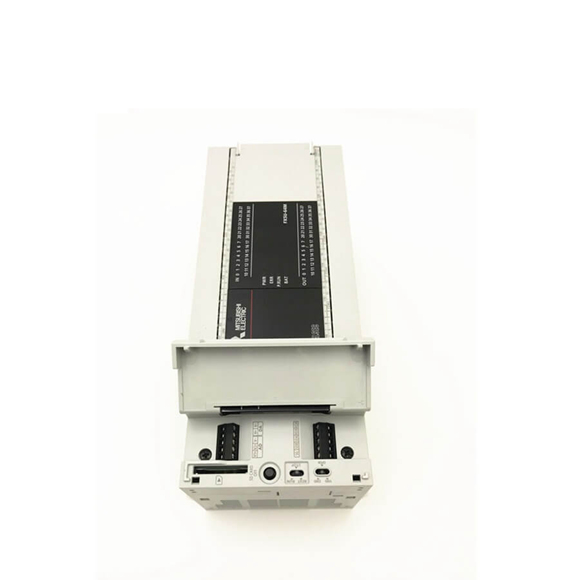

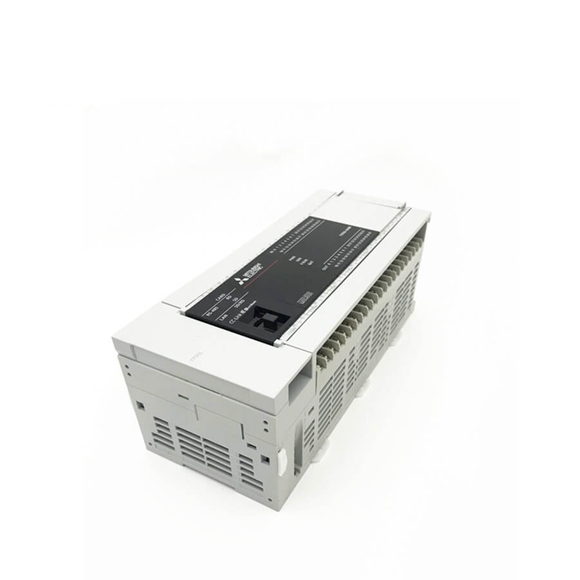

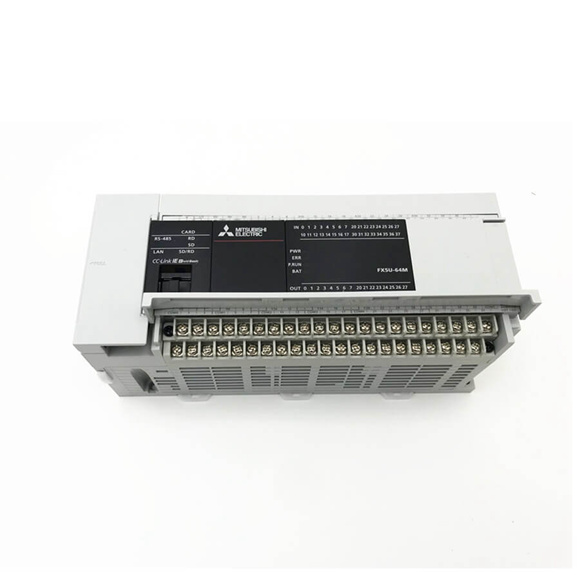

Mitsubishi FX5U-64MR/ES PLC Controller Module

Series#: Mitsubishi

Product Details

Mitsubishi FX5U-64MR/ES & FX5U-64MT/ES – High-performance PLC controller module for advanced automation.
Ultra-fast processing: LD X0 and MOV D0 D1 instructions executed in just 34 ns.
Generous 64 k-step program memory and 120 kbytes device/label memory for complex applications.
Supports multiple programming languages: Ladder, ST, FBD/LD, plus FB and label programming.
Versatile I/O control: Up to 256 local I/O points and 384 remote I/O points, total 512 points max.
Built-in SD memory card slot for easy data logging and program backup.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi PLC Controller module FX5U-64MR/ES FX5U-64MT/ES is a state-of-the-art CPU unit designed for demanding industrial automation tasks. Combining lightning-fast execution speeds with a rich feature set, this module delivers reliable performance for machine control, process automation, and system integration. With its compact design and extensive connectivity options, it is the ideal choice for engineers seeking a powerful yet flexible control solution.

Parameter	Specification
Control system	Stored-program repetitive operation
Input/output control system	Refresh system (Direct access input/output allowed via DX, DY)
Programming language	Ladder diagram (LD), structured text (ST), function block diagram/ladder language (FBD/LD)
Programming expansion function	Function block (FB), function (FUN), label programming (local/global)
Constant scan	0.2 to 2000 ms (settable in 0.1 ms increments)
Fixed cycle interrupt	1 to 60000 ms (settable in 1 ms increments)
Timer performance specifications	100 ms, 10 ms, 1 ms
No. of program executions	32
No. of FB files	16 (Up to 15 for user)
Execution type	Standby, initial execution, scan execution, fixed-cycle execution, event execution
Interrupt type	Internal timer interrupt, input interruption, high-speed comparison match interrupt, interrupt from module
Instruction processing time LD X0	34 ns
Instruction processing time MOV D0 D1	34 ns
Memory Program capacity	64 k steps (128 kbytes, flash memory)
SD memory card	SD/SDHC memory card: Max. 4 Gbytes
Device/label memory	120 kbytes
Data memory/standard ROM	5 Mbytes
Flash memory (Flash ROM) write count	Max. 20000 times
File storage capacity	1
Data memory: No. of program files / No. of FB files	P: 32, FB: 16
SD memory card	2 Gbytes: 511Q1, 4 Gbytes: 65534Q1
Clock function display data	Year, month, day, hour, minute, second, day of week (leap year automatic detection)
Clock precision	Monthly difference: ±45 sec at 25°C (typical value)
(1) No. of input/output points	256 points or less
(2) No. of remote I/O points	384 points or less
Total No. of points of (1) and (2)	512 points or less
Capacity for power failure retention	12 K words maximum

High-Speed Performance: With 34 ns processing time for basic instructions, the FX5U-64MR/ES and FX5U-64MT/ES ensure real-time responsiveness in critical applications.
Extensive Memory: 64 k-step program capacity and 120 kbytes device/label memory accommodate complex control algorithms and large data sets.
Flexible Programming: Supports Ladder, ST, and FBD/LD languages, along with FB and label programming for modular and reusable code.
Robust I/O Capability: Up to 256 local I/O points and 384 remote I/O points, with a total of 512 points, offering scalability for various system sizes.
Integrated Data Storage: SD memory card slot enables easy data logging, program backup, and firmware updates without external tools.
Reliable Power Failure Handling: Retains up to 12 K words of data during power loss, ensuring critical parameters are preserved.
