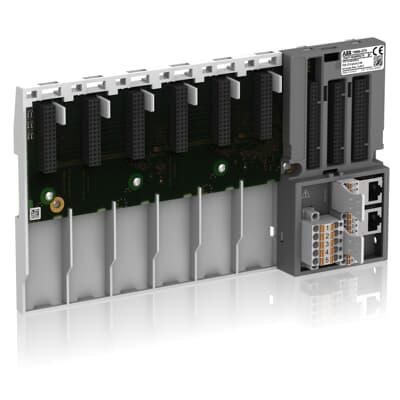

The TB5660-2ETH AC500 TERMINAL BASE is a high-performance expansion base specifically engineered for ABB’s AC500 V3 programmable logic controllers. This terminal base serves as the backbone for adding communication modules, providing six dedicated slots to accommodate various network interfaces. With dual Ethernet ports, a serial interface, and a CAN interface, the TB5660-2ETH facilitates seamless integration into distributed automation architectures, supporting protocols like Profinet, EtherNet/IP, and CANopen. Its compact form factor (235.5 mm width, 135 mm height, 28 mm depth) and low weight (0.31 kg) simplify panel mounting, while the IP20 enclosure ensures protection against solid objects. The unit operates on DC power and is built for long-term reliability in demanding industrial settings. Each unit is 100% original and new, packaged securely for export.
| Specification |
Detail |
| Model |
TB5660-2ETH |
| Product Type |
Terminal Base for AC500 V3 PLCs |
| Function |
6 slots for communication modules; 2 Ethernet interfaces; 1 serial interface; 1 CAN interface |
| Input Voltage Type |
DC |
| Degree of Protection |
IP20 |
| Product Net Weight |
0.31 kg |
| Product Net Width |
235.5 mm |
| Product Net Height |
135 mm |
| Product Net Depth / Length |
28 mm |
| Gross Weight |
0.393 kg |
| Package Level 1 Dimensions (L x W x H) |
147 mm x 203 mm x 40 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| eClass |
27-24-22-92 |
| ETIM 8 |
EC000810 - PLC mounting rack |
| UNSPSC |
32151703 |
| CN8 |
85389091 |
| SCIP |
8e58dc8b-04eb-4a41-a9e7-dd4af8e696cf Germany (DE) |
| WEEE B2C / B2B |
Business To Business |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| Made To Order |
No |
| Product Main Type |
TB5660 |
| Product Name |
Distributed Automation PLCs |
