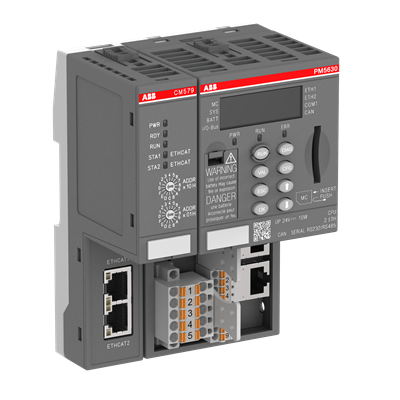

The PM5630-MC-KIT is a comprehensive AC500 controller kit engineered for demanding motion control applications. This pre-configured package combines the powerful PM5630-2ETH processor module with a dedicated CM579-ETHCAT communication master, a TB5610-ETH terminal base, and the PS5611-MC runtime license for PLCopen motion control. Ideal for multi-axis servo systems and high-speed automation lines, the kit delivers seamless integration with EtherCAT networks while maintaining the robustness of the AC500 V3 platform. Every component is factory-matched to ensure plug-and-play deployment, reducing commissioning time and engineering risk.
| Parameter |
Specification |
| Product Type |
AC500 Controller Kit (Motion Control) |
| Model Number |
PM5630-MC-KIT |
| Kit Contents |
PM5630-2ETH (CPU), CM579-ETHCAT (EtherCAT Master), TB5610-ETH (Terminal Base), PS5611-MC (Motion License) |
| CPU Memory |
8 MB |
| CPU Interfaces |
2 x Ethernet, 1 x RS232/485, 1 x CAN |
| EtherCAT Master |
CM579-ETHCAT – supports up to 32 axes (typical) |
| Terminal Base Slots |
1 communication module slot |
| Terminal Base Interfaces |
2 x Ethernet, 1 x Serial, 1 x CAN |
| Motion Control License |
PS5611-MC – PLCopen compliant runtime for AC500 V3 |
| Degree of Protection |
IP20 |
| Product Net Weight |
0.363 kg |
| Product Dimensions (L x W x H) |
250 mm x 180 mm x 110 mm |
| Package Gross Weight |
0.712 kg |
| Package Dimensions (L x W x H) |
260 mm x 180 mm x 120 mm |
| Selling Unit |
Piece (1 kit per carton) |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Customs Tariff (CN8) |
85371091 |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 – PLC CPU-module |
| UNSPSC |
32151705 |
| WEEE Category |
5 – Small Equipment (≤50 cm) |
| WEEE B2C/B2B |
Business To Business |
