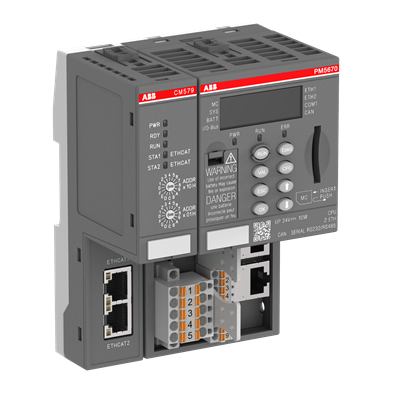

The PM5670-MC-KIT is a meticulously engineered AC500 V3 controller kit designed for demanding motion control and distributed automation applications. This all-in-one solution bundles the high-performance PM5670-2ETH processor module with 160 MB of user memory, a CM579-ETHCAT communication module for real-time EtherCAT master connectivity, a TB5610-ETH terminal base offering two Ethernet ports, one serial interface, and one CAN interface, plus the PS5611-MC PLCopen motion control runtime license. With its robust 24 V DC power supply range (20.4…28.8 V DC) and IP20 ingress protection, the kit delivers reliable operation in industrial environments. The processor's lightning-fast 0.000002 ms cycle time ensures precise control loops, while the integrated display provides local diagnostics. This kit is ideal for OEMs and system integrators seeking a compact, high-speed PLC platform with native EtherCAT support.
| Attribute |
Specification |
| Product Type |
AC500 V3 Controller Kit – Motion Control |
| Model |
PM5670-MC-KIT |
| Kit Contents |
PM5670-2ETH (Processor), CM579-ETHCAT (Comm. Module), TB5610-ETH (Terminal Base), PS5611-MC (Motion License) |
| Processor Memory |
160 MB (User Data RAM) |
| Total Memory Size |
820500 kB |
| Processing Time |
0.000002 ms |
| Hardware Interfaces |
2x Industrial Ethernet, 2x Other (RS232/485, CAN), 0x Parallel, 0x RS-232, 0x RS-422, 0x RS-485, 0x Serial TTY, 0x USB, 0x Wireless |
| Digital Configurable I/Os |
0 (I/O expansion via bus) |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Degree of Protection |
IP20 |
| Product Net Weight |
0.363 kg |
| Gross Weight |
0.73 kg |
| Product Net Dimensions (W x H x D) |
180 mm x 110 mm x 250 mm |
| Package Level 1 Dimensions (W x H x D) |
180 mm x 120 mm x 260 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| CN8 Code |
85371091 |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 – PLC CPU-module |
| UNSPSC |
32151705 |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B |
Business To Business |
