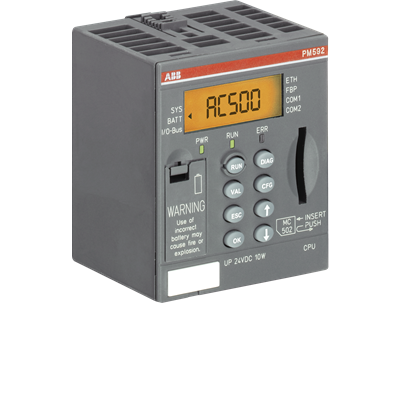

The PM592-ETH AC500 Processor Module is the intelligent core of the AC500 distributed automation platform, designed for demanding applications requiring both computational power and flexible connectivity. This CPU module integrates a high-speed RISC processor with 4MB of user memory and a 4GB Flashdisk, enabling complex control logic and extensive data logging. Its built-in LCD display provides immediate visual feedback on system status, while the multi-protocol communication suite—including one Industrial Ethernet port, two software-configurable RS232/485 serial interfaces, and a Fieldbus Plug (FBP) connector—ensures seamless integration with drives, I/O, and SCADA systems. Operating from a 20.4…28.8V DC supply and rated IP20, the PM592-ETH is engineered for reliable 24/7 operation in industrial environments from 0°C to +60°C.
| Specification |
Value |
| Product Type |
PM592-ETH AC500 Processor Module |
| Function |
Memory 4MB, Interfaces: Ethernet, 2x RS232/485, FBP, 4GB Flashdisk, Display |
| Display Type |
LCD |
| Communication Interface |
Serial / FBP / Ethernet |
| Number of Hardware Interfaces |
Industrial Ethernet: 1, Other: 2, Parallel: 0, RS-232: 0, RS-422: 0, RS-485: 0, Serial TTY: 0, USB: 0, Wireless: 0 |
| Memory Size (Total) |
9728 kB |
| Memory Size User Data |
5632 kB |
| Memory Size User Program |
4096 kB |
| Memory Type User Data |
RAM |
| Controller Processing Time |
0.000002 ms |
| Number of Digital Configurable I/Os |
0 |
| Degree of Protection |
IP20 |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Ambient Air Temperature (Operation) |
0 … +60 °C |
| Ambient Air Temperature (Storage) |
-40 … +70 °C |
| Product Net Weight |
0.153 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
76 mm |
| Product Net Width |
67.5 mm |
| Gross Weight (packaged) |
0.177 kg |
| Package Level 1 Dimensions (L x W x H) |
84 mm x 71 mm x 72 mm |
| Package Level 1 Units |
1 carton |
| Product Main Type |
PM592 |
| Product Name |
Distributed Automation PLCs |
| CN8 Code |
85389091 |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 - PLC CPU-module |
| UNSPSC |
32151705 |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| SCIP Number |
deb0c894-534f-494e-a6f1-0534e460807e Germany (DE) |
| WEEE B2C / B2B |
Business To Business |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
