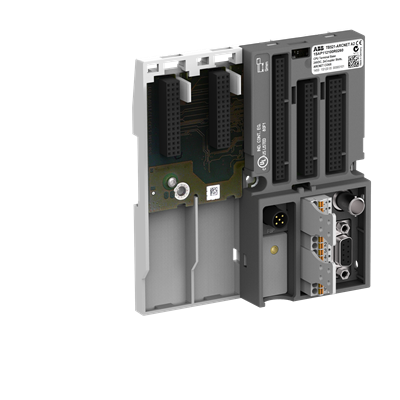

ABB TB521-ARCNET AC500 Terminal Base

Series#: ABB

Product Details

TB521-ARCNET: High-performance AC500 V2 terminal base with integrated ARCNET interface for robust industrial communication.
Equipped with 2 slots for communication modules and 2 serial interfaces (RS232/RS485) for versatile connectivity.
Rugged IP20 protection, designed for reliable operation in demanding automation environments.
Compact footprint: 123.5 mm x 135 mm x 28 mm, net weight 0.187 kg, ideal for space-constrained panels.
Wide operating temperature range: 0°C to +60°C, with storage from -40°C to +70°C.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The ABB TB521-ARCNET terminal base is a fundamental component for the AC500 V2 distributed automation PLC system, purpose-built to facilitate high-speed ARCNET networking in industrial control loops. This base unit provides two dedicated slots for communication modules and integrates dual serial interfaces (RS232/RS485) via D-SUB/Coax/Terminals, enabling seamless data exchange with field devices and higher-level controllers. Engineered for 24 V DC operation and rated IP20, the TB521-ARCNET ensures reliable performance across a wide temperature range of 0°C to +60°C during operation and -40°C to +70°C in storage. Each unit is 100% original, new, and shipped globally with minimal lead time, making it a trusted choice for system integrators and maintenance teams.

Specification	Details
Product Type	AC500 V2 Terminal Base with ARCNET
Model	TB521-ARCNET
Function	For AC500 V2; 2 slots for communication modules; ARCNET interface; 2 serial interfaces RS232/RS485
Communication Interface	D-SUB / Coax / Terminals
Input Voltage Type	DC
Supply Voltage	24 V DC
Degree of Protection	IP20
Ambient Air Temperature (Operation)	0 ... +60 °C
Ambient Air Temperature (Storage)	-40 ... +70 °C
Product Net Weight	0.187 kg
Product Net Depth / Length	28 mm
Product Net Height	135 mm
Product Net Width	123.5 mm
Gross Weight	0.246 kg
Package Level 1 Dimensions (L x W x H)	147 mm x 131 mm x 40 mm
Package Level 1 Units	1 carton
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
Made To Order	No
Product Main Type	TB521
Product Name	Distributed Automation PLCs
CN8 Code	85389091
eClass	27-24-22-92
ETIM 8	EC000810 - PLC mounting rack
UNSPSC	32151703
SCIP	c171af37-8456-4dee-b15c-03da3448dd42 Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
